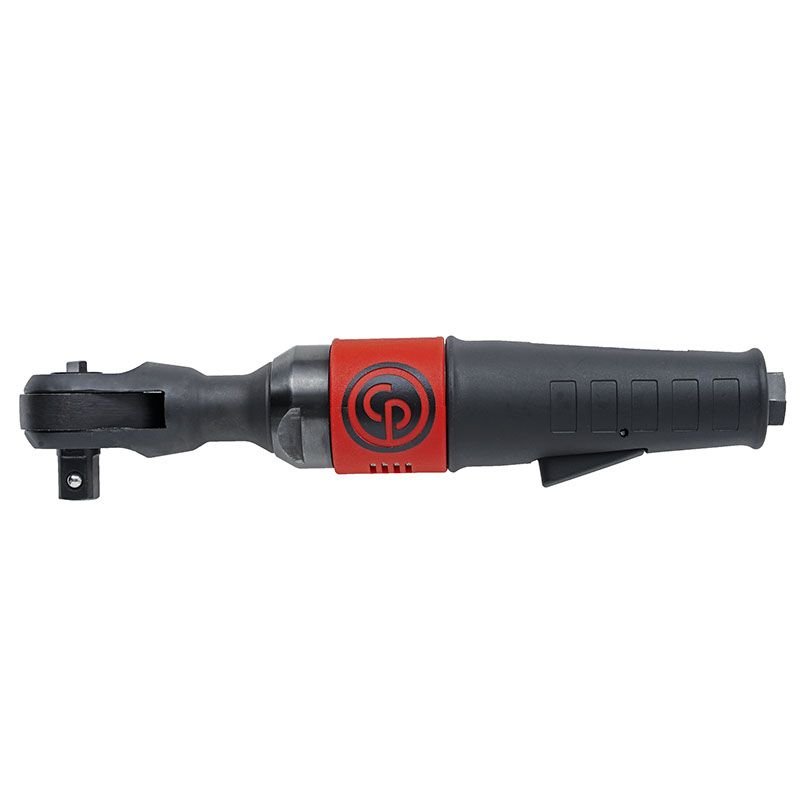

CP7829H 1/2" PNEUMATIC RATCHET WRENCH
CP7829H 1/2" PNEUMATIC RATCHET WRENCH - Image 2
,

CP7829H 1/2″ PNEUMATIC RATCHET WRENCH

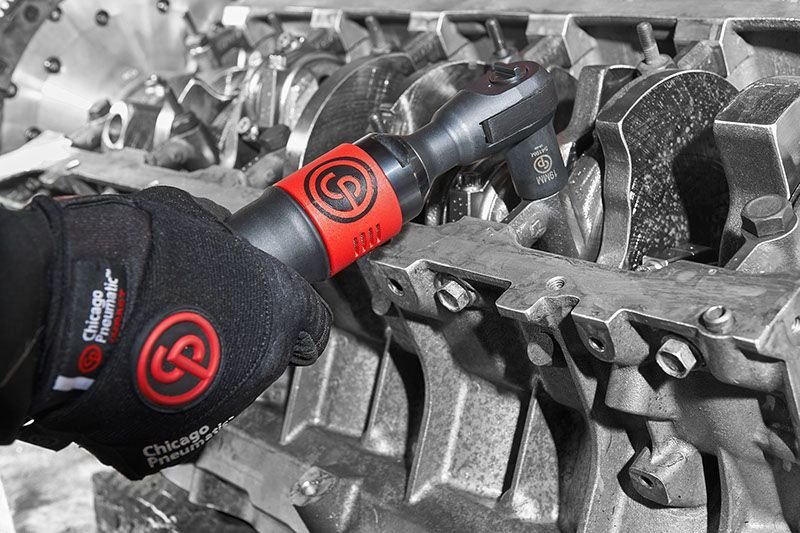

The CP7829 pneumatic ratchet wrench is made in Japan and is designed for a variety of applications such as transmission, suspension work, light engine, dashboard work, and general maintenance. This tool features an adjustable side exhaust, a teasing trigger and delivers torque of up to 70 ft.lbs / 95 Nm. The CP7829 Series is composed of 2 models: 3/8″ and 1/2″ anvil.Country of origin is JP. Customs tariff is 84671190

Categories: , Brand:

Technical Specifications

Speed
Free Speed :- 225 rpm
Air consumption at free speed :- 11 l/s
Torque
Max working torque reverse :- 74 Nm
Max torque reverse :- 95 Nm
Min working torque reverse :- 15 Nm
Size & Weight
Length (L) :- 272 mm
Weight :- 1.24 kg
General
Subfamily :- Pneumatic Ratchet Wrenches
Noise & vibrations
Sound Power :- 96 dB(A)
Sound Pressure :- 85 dB(A)
Uncertainty vibration-K :- 2.5 m/s²
Vibration (m/s²) :- 8.6
Air information
Air consumption at load :- 5.2 l/s
Air inlet thread size (in) :- 1/4
Air inlet thread type :- NPTF
Max dynamic air working pressure :- 6.3 bar
Min hose diam (5 m hose length) :- 10 mm
Design & Functions
Main Material type :- Composite
Output drive size (in) :- 1/2
Output drive type :- Sq
Output retainer type :- Ball detent
Starting system :- Lever

Benefits

  • Comfortable ultra-compact (6.6 in/169mm long), lightweight (1.1 lbs/0.5 kg) tool that allows ease of access in hard-to-reach areas
  • Adjustable side exhaust avoids blowing dirt and dust
  • Ergonomic composite grip insulates operators’ hands from cold
  • Teasing trigger to better adjust the torque with 225 rpm
