Technical Specifications
Torque
Max working torque fwd :- 760 Nm
Max torque reverse :- 1080 Nm
Min working torque fwd :- 180 Nm
Torque limited :- No
Air information
Air inlet thread size (in) :- 1/4
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.38 in
Min hose diam (5 m hose length) :- 10 mm
Noise & vibrations
Sound Power :- 104 dB(A)
Sound Pressure :- 93 dB(A)
Uncertainty vibration-K :- 2.2 m/s²
Vibration (m/s²) :- 8.7
Speed
Free Speed :- 8400 rpm
Size & Weight
Length (L) :- 200 mm
Power weight ratio :- 450 Nm/kg
Side to Center :- 36 mm
Weight :- 2.4 kg
Design & Functions
Blow per minute :- 1200
Body :- Composite
Clutch housing :- Aluminium
Clutch lubrication type :- Oil bath
Handle type :- Pistol
Impact mecanism :- Twin hammer
Main Material type :- Composite
Output drive size (in) :- 1/2
Output drive type :- Sq
Output retainer type :- Friction ring
Starting system :- Trigger
Suspension option :- Included
Benefits
- Reliable twin hammer clutch mechanism in oil bath for hard joint applications.
- ATEX certified IP6 dust-proof
- Square drive shaft with ring or dual version for a wide variety of applications
- Low noise and low vibration for operator comfort

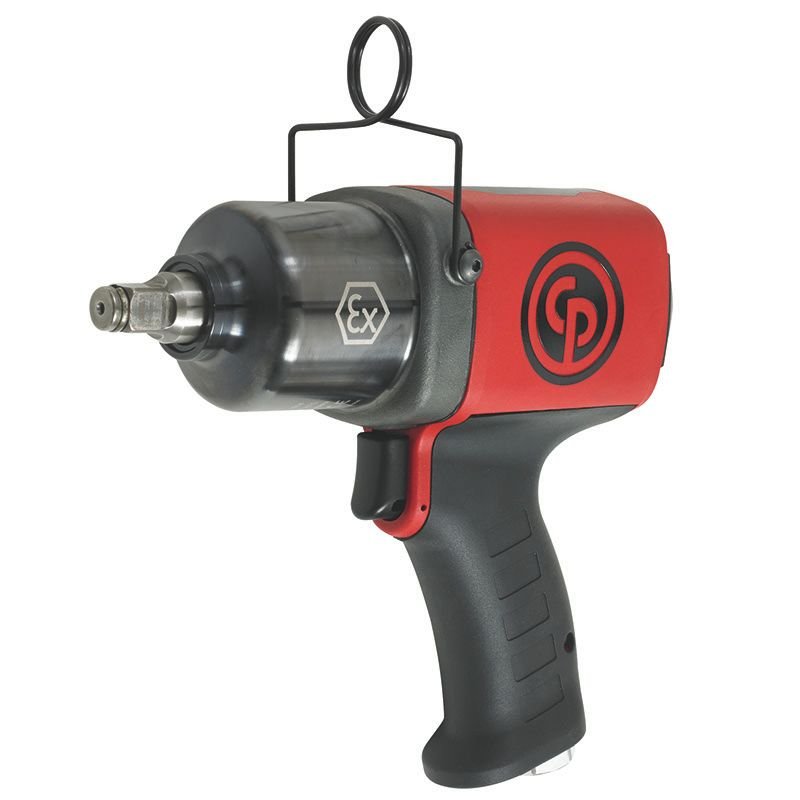

- Comfortable handle with rubber grip & suspension bail included
