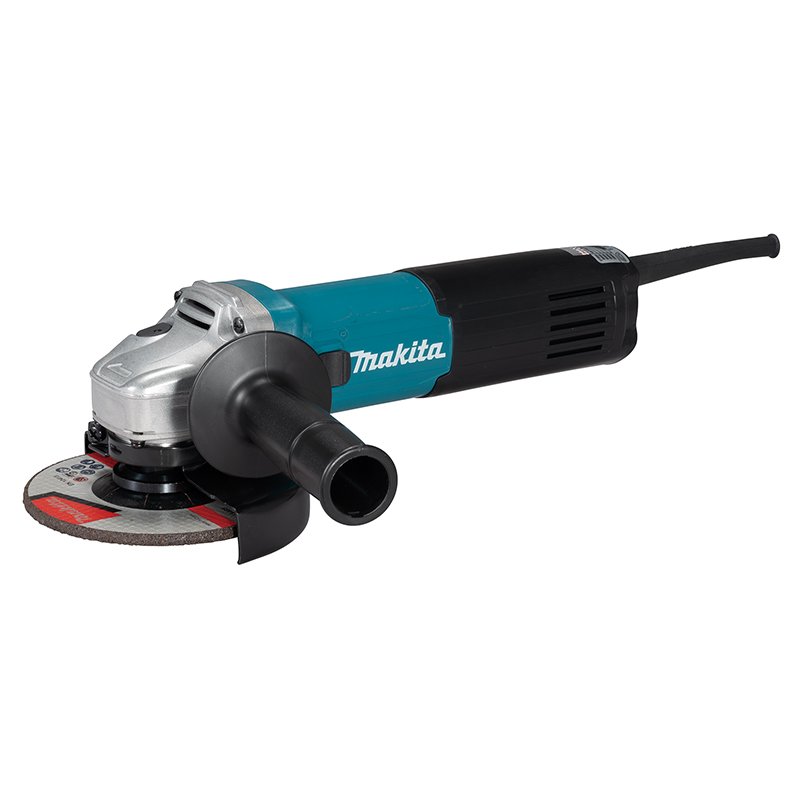

GA5100 Angle Grinder



125 mm (5″) 850 W Angle Grinder, Anti-Restart Function, Soft Start, Slide Switch, Speed Adjusting Dial

• GA5100

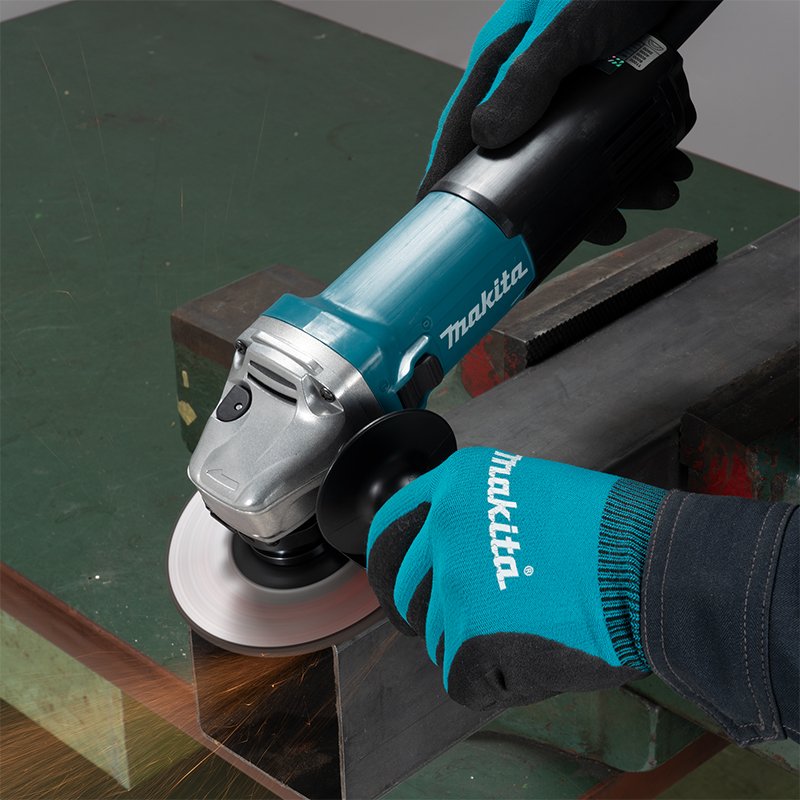

  • This model is designed mainly for finishing works of exterior structures such as stainless steel handrail, porch, gate doors
    It is equipped with a variable speed control dial for stepless speed selection depending on applications
  • Constant speed control minimizes the drop in rotation speed when the tool is loaded, resulting in high work efficiency and durability
    • This feature is superior to that of competitor products, especially in the medium to low speed range
    • Our motor is less likely to be damaged by overheating
  • Variable speed control by dial enables user to select rotation speed steplessly from 2,800 – 11,000 rpm to suit the application
  • Soft start for smooth start-up
  • Anti-restart function minimizes accidental start-up
  • Slide switch with lock-on for continuous use
  • Side grip can be positioned on both sides for operator convenience
Categories: , Brand:
Continuous Rating Input : 850W


Wheel diameter : 125 mm (5″)


No load speed : 2,800 – 11,000 minˉ¹


Cutting depth : 33 mm (1-5/16 “)


Brush diameter capacity : 125 mm (5″)


Cup brush diameter capacity : 75 mm (3″)


Disc paper diameter : 125 mm (5″)


Rubber pad diameter : 115 mm (4.5″)


Hole diameter : 22.23 mm (7/8″)


Thread : M14x2.0


Abrasive grinding wheel diameter : 125 mm (5″)


Abrasive cut-off wheel diameter : 125 mm (5″)


Max abrasive wheel thickness : 7.2 mm (9/32″)


Diamond wheel diameter : 125 mm (5″)


Continuous rating input : 850 W


Grip circumference : 191 mm (7-1/2″)


Vibration level : Surface grinding w/ Normal side grip: 7.8 m/s²
                              Disc sanding w/ Normal side grip: 2.9 m/s²


Vibration K factor : Surface grinding w/ Normal side grip: 1.5 m/s²
                                    Disc sanding w/ Normal side grip: 1.5 m/s²


Sound pressure level : 88 dB(A)


Sound power level : 96 dB(A)


Noise K factor : 3 dB(A)


Dimensions (L x W x H) : 298 x 140 x 111 mm (11-3/4 x 5-1/2 x 4-3/8″)


Net weight : 2.2 kg


Power supply cord : 2.5 m (8.2 ft)
