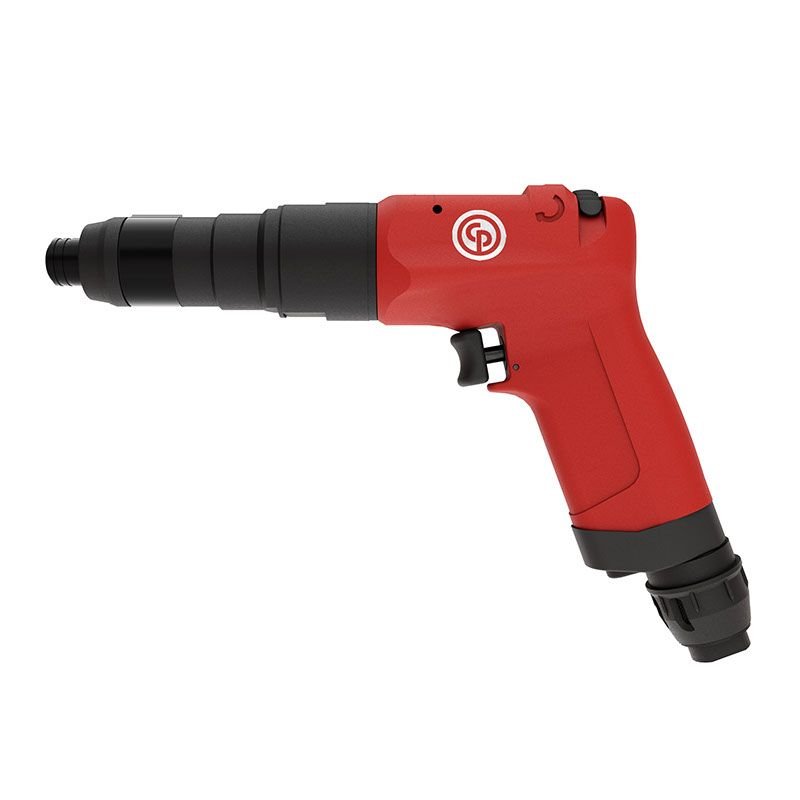

CP2812 1/4" HEX PISTOL CUSHION PNEUMATIC SCREWDRIVER

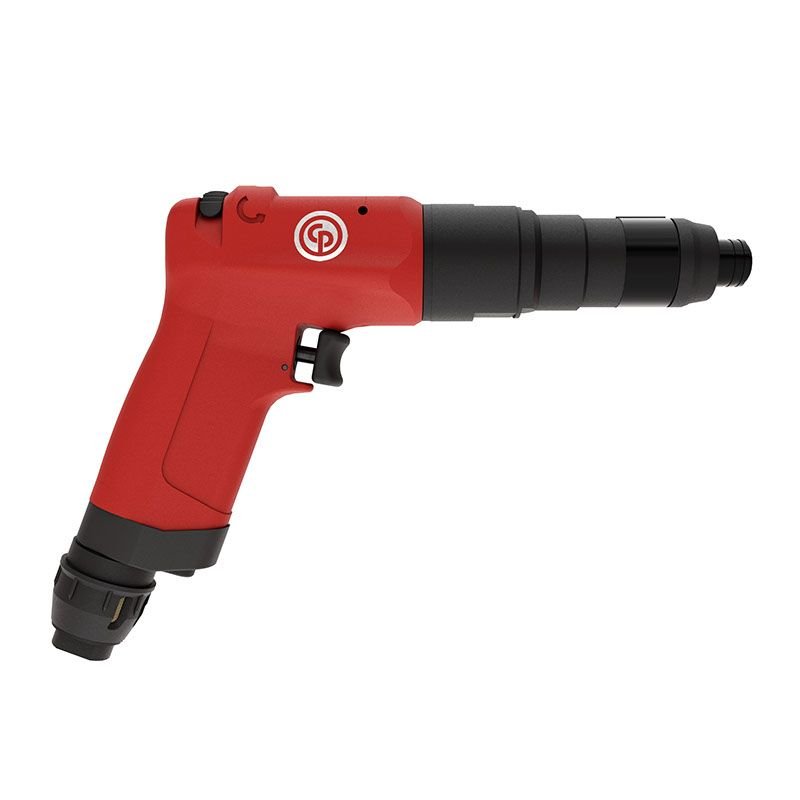

CP2812 1/4" HEX PISTOL CUSHION PNEUMATIC SCREWDRIVER - Image 2
,

CP2812 1/4″ HEX PISTOL CUSHION PNEUMATIC SCREWDRIVER



The CP28 Series cushion clutch are 1/4″ hex pistol cushion clutch screwdrivers designed for your heavy duty applications. Well-balanced and lightweight design based on rugged aluminum housing with a comfortable rubber grip to ensure operator comfort. Available in 2 free speed levels: 950 rpm CP2812 and 1300 rpm CP2822.Country of origin is HU. Customs tariff is 84671190

Categories: , Brand:

Technical Specifications

Torque
Max torque in forward :- 11 Nm
Min torque in forward :- 2.5 Nm
Torque Control System :- Non shut-off-clutch
Design & Functions
Adjustment :- Key
Body :- Aluminum
Clutch housing :- Steel
Clutch Type :- Cushion clutch
Handle type :- Pistol
Main Material type :- Aluminium, Composite over-sleeve
Output drive size (in) :- 1/4
Output drive type :- Hex
Output retainer type :- Quick change
Reversible :- Yes
Starting system :- Push start
Speed
Free Speed :- 950 rpm
Air consumption at free speed :- 8.4 l/s
Air information
Air inlet thread size (in) :- 1/4
Air inlet thread type :- BSP
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.38 in
Min hose diam (5 m hose length) :- 10 mm
Noise & vibrations
Sound Power :- 93 dB(A)
Sound Pressure :- 82 dB(A)
Vibration (m/s²) :- <2.5
Size & Weight
Height (H) :- 160 mm
Length (L) :- 232 mm
Width (W) :- 49 mm
Weight :- 1.1 kg

Benefits

  • Reliable cushion clutch for various fastening applications
  • Keyless quick torque setting
  • Robust aluminum body and clutch housing, even for heavy duty applications
  • Rubber grip and one-hand reverse button for operator comfort
