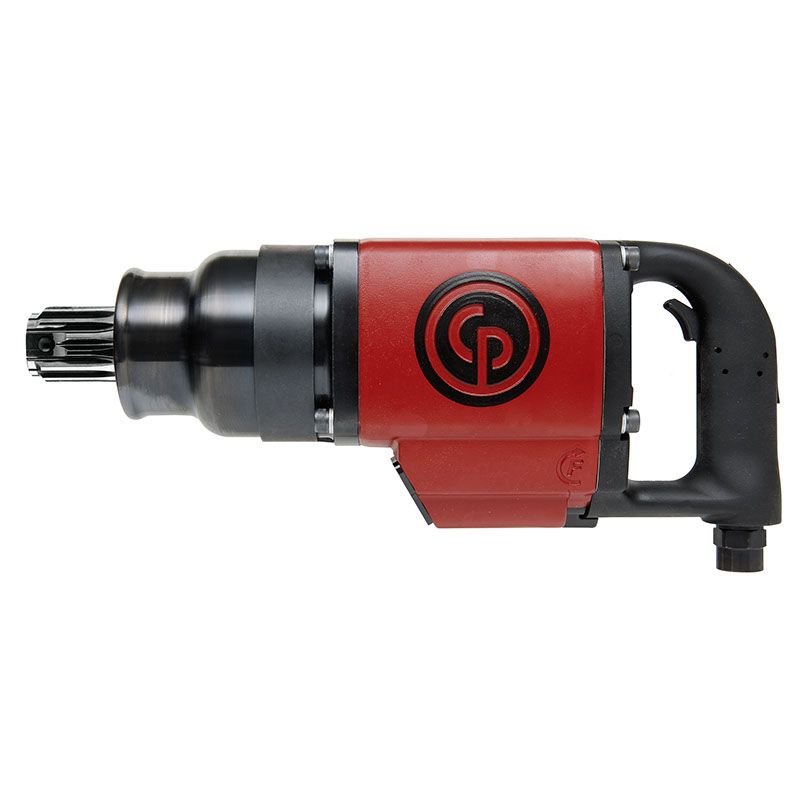

CP6120-D35L #5 SPLINE D-HANDLE PNEUMATIC IMPACT WRENCH

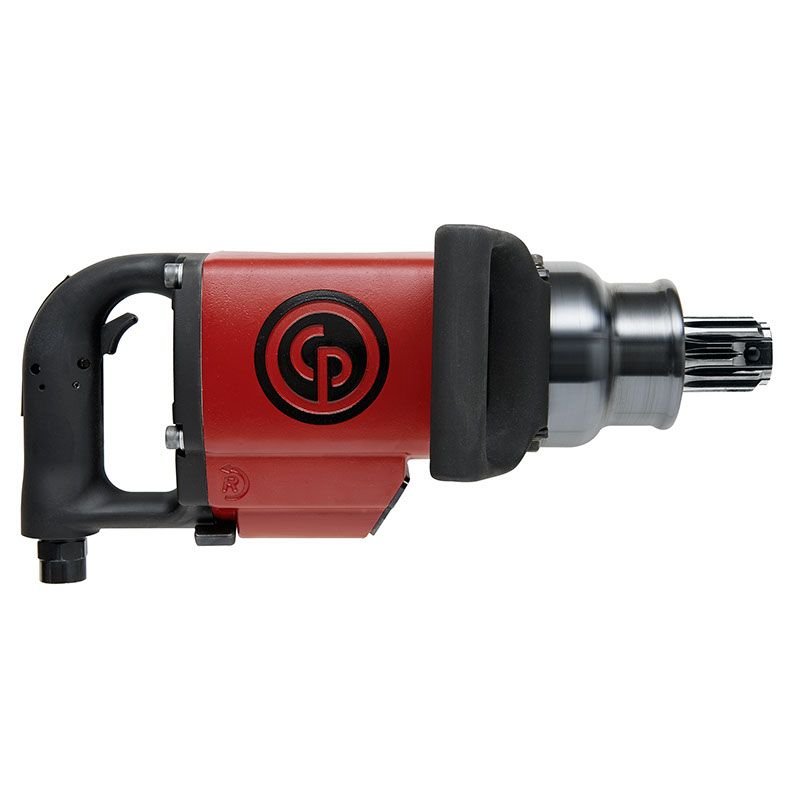

CP6120-D35L #5 SPLINE D-HANDLE PNEUMATIC IMPACT WRENCH - Image 2
,

CP6120-D35L #5 SPLINE D-HANDLE PNEUMATIC IMPACT WRENCH



Improve assembly quality with this 1-12″/#5 impact wrench. With a heavy-duty 2-jaw clutch mechanism, an aluminium body, and a steel clutch housing, this tool is designed for comfort and durability. Delivers reverse torque up to 4,880 Nm / 3,600 ft.lb. The CP6120 series is based on 2 models, hole or spline socket retainer.Country of origin is JP. Customs tariff is 84671190

Categories: , Brand:

Technical Specifications

Torque
Max working torque fwd :- 2710 Nm
Max torque reverse :- 4880 Nm
Min working torque fwd :- 815 Nm
Torque limited :- No

Air information
Air inlet thread size (in) :- 1/2
Max dynamic air working pressure :- 6.3 bar
Min hose diam (5 m hose length) :- 19 mm

Noise & vibrations
Sound Power :- 108 dB(A)
Sound Pressure :- 97 dB(A)
Uncertainty vibration-K :- 11.8 m/s²
Vibration (m/s²) :- 21.8

Speed
Free Speed :- 3500 rpm
Air consumption at free speed :- 51 l/s

Size & Weight
Length (L) :- 420 mm
Side to Center :- 54 mm
Weight :- 15.6 kg

Design & Functions
Blow per minute :- 960
Body :- Aluminum
Clutch housing :- Steel
Clutch lubrication type :- Grease
Handle type :- D-handle
Impact mecanism :- 2-jaws
Output drive size (in) :- #5 Spline
Output drive type :- #5 Spline
Output retainer type :- Pin retainer
Side handle :- Yes
Starting system :- Trigger

Benefits

  • Reliable 2-jaw clutch mechanism can be set for hard and soft joint applications
  • 2-jaw clutch minimizes vibration sensation
  • Robust steel clutch housing guarantees durability
  • High progressive max torque for smooth operation
  • Durable lightweight aluminium body offers operator comfort,
