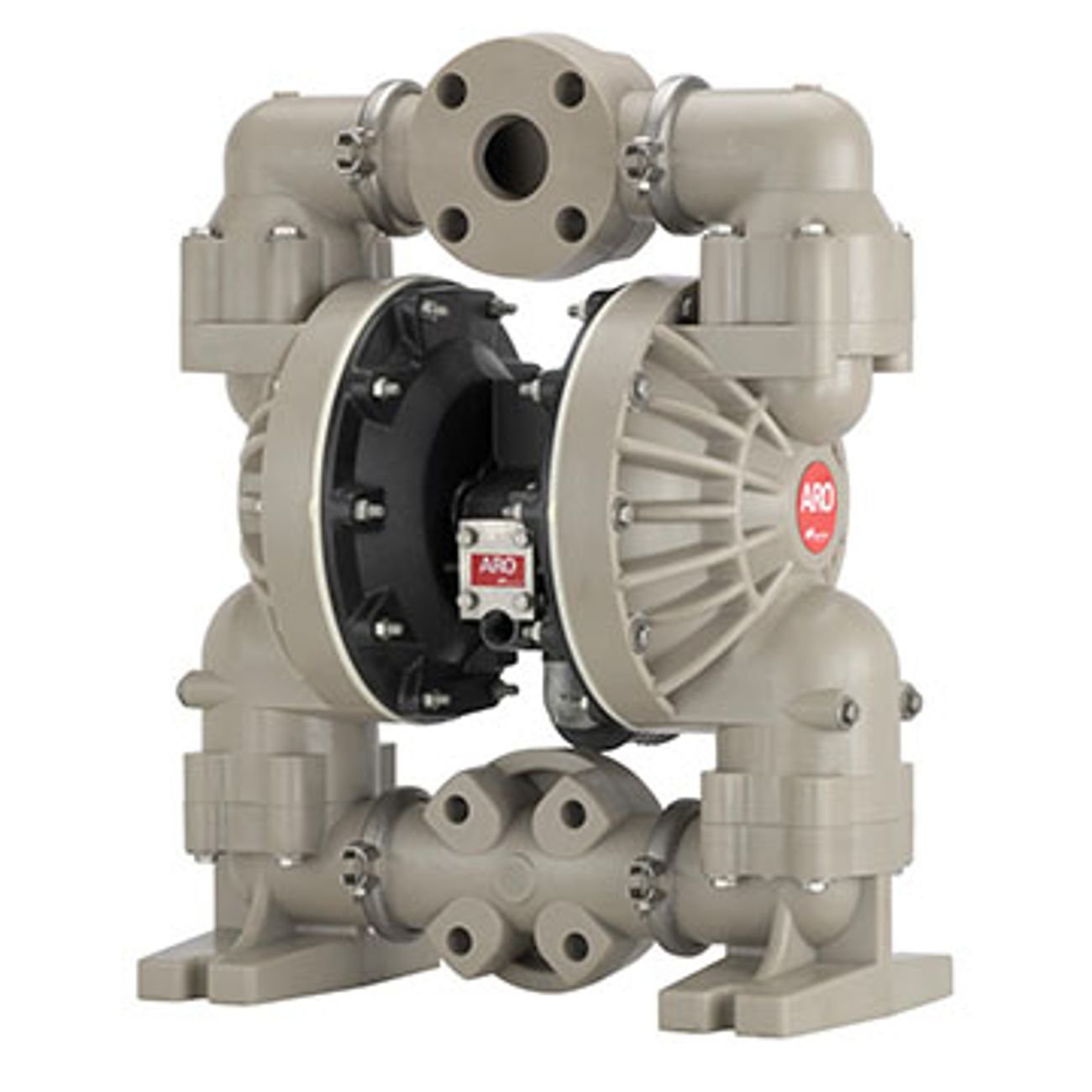

2'' Pro Series Non-Metallic Diaphragm Pump 6662XX-XXX-C 145 GPM (548.8 LPM)
,

2” Pro Series Non-Metallic Diaphragm Pump 6662XX-XXX-C 145 GPM (548.8 LPM)

Overview

Features

  • Robust construction with thick walled injection, molded fluid casings and cast iron or aluminum center sections to withstand tough industrial applications.
  • Efficiency – Motor design delivers optimum air efficiency
  • Reliability – ARO’s patented ‘Unbalanced’ air valve ensures no-stall operation
  • Versatility – Multiple porting options for your application needs – Available in Flanged, Threaded, or 3 piece Manifold configurations
  • Environmentally Sound – Bolted construction for leak-free fluid handling
  • Serviceability – Easy access to ball checks and fluid caps for maintenance and repairs

Accessories

  • 66084-1 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
  • 67080 Flange Connection Kit: converts connection to NTPF threading configuration
  • 66975 Cycle Counter Kit
  • 637118-C Air Section Service Kit
  • 637165-XX Fluid Section Service Kit

Pump Casing Materials

  • Polypropylene
  • PVDF (Kynar)

Diaphragm Materials

  • Viton
  • PTFE w/ Santoprene backer
  • Hytrel
  • Santoprene
  • Nitrile
  • Neoprene
  • E.P.R.
Categories: , Brand:

Specifications

Ratio: 1:1

Maximum Flow:
145 gpm (548.8 lpm)

Displacement per cycle:
Standard Diaphragm 0.72 gal (2.7 liters)
Composite PTFE Diaphragm 0.48 gal (1.8 liters)

Air Inlet: (Female) 1/2-14 NPTF

Fluid Inlet/Outlet: 2″ ANSI / DIN Flange

Max. operating pressure: 120 psi (8.3 bar)

Suspended solids max. dia.: 1/4” dia. (6.4 mm)

Weight:
Polypropylene 62 lbs (28.1 kg)
PVDF (Kynar) 92 lbs (41.7 kg)
Note: Add 23 lbs (10.4 kgs) for cast iron air motor section.

Maximum dry suction lift: 14 ft (4.27 m)

Sound Level:
70 PSI (4.8 bar) 60 Cycles/Min77.7 db(A)
