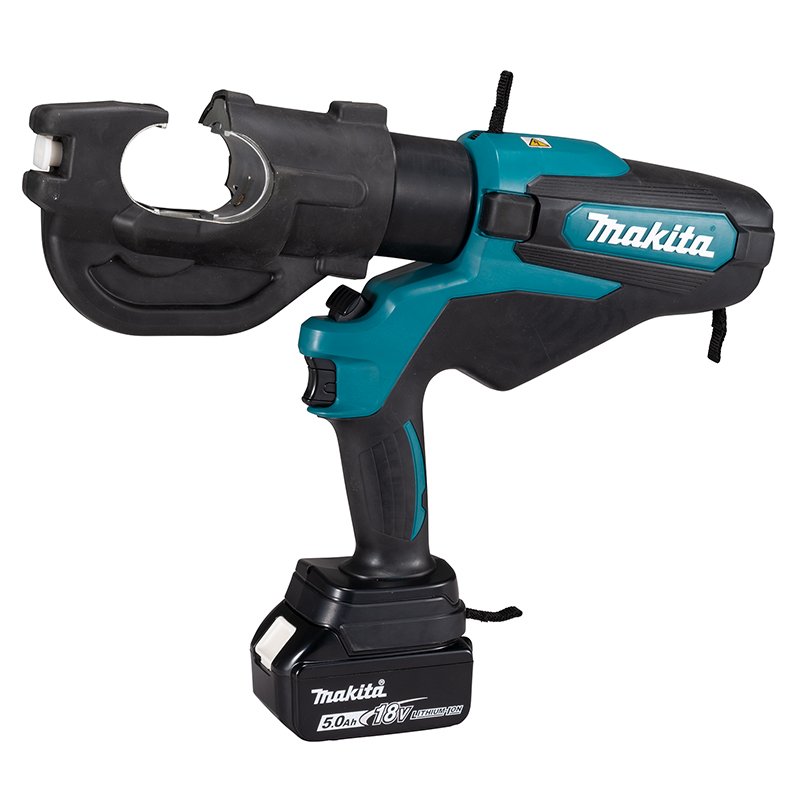

Makita Cordless Cable Crimper DTC301



18V LXT Li-Ion Cordless Crimper

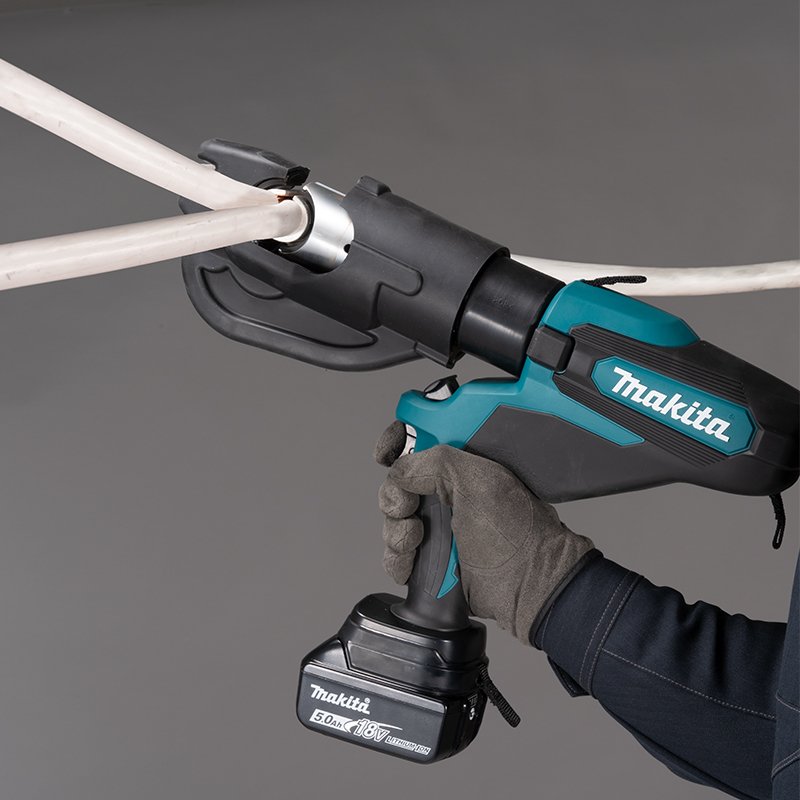

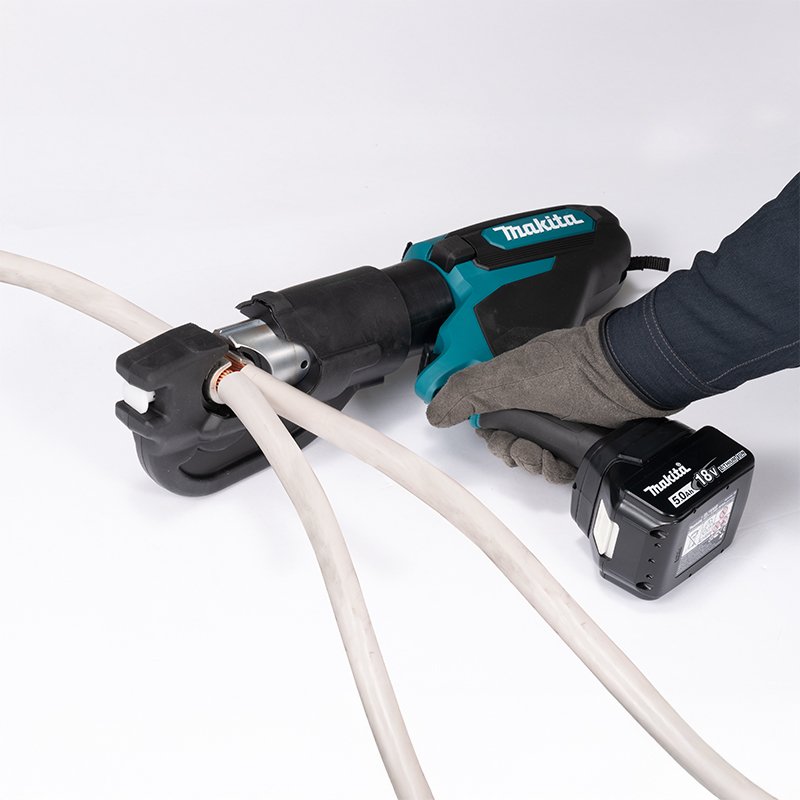

  • With a maximum crimping capacity of ø19.5 mm (300 mm²), this tool is capable of crimping terminals onto large-diameter electric wires.
  • Crimping capacity
    • Cu: ø19.5 mm (300 mm²)
    • Al: ø19.5 mm (300 mm²)
  • Auto retract function
    • The ram automatically retracts to its original position after completing the crimping operation, enhancing work efficiency.
    • The On/Off setting of the auto retract function can be switched.
  • Single LED job light with afterglow function
  • Trigger-lock function to minimize accidental pulling of the switch trigger

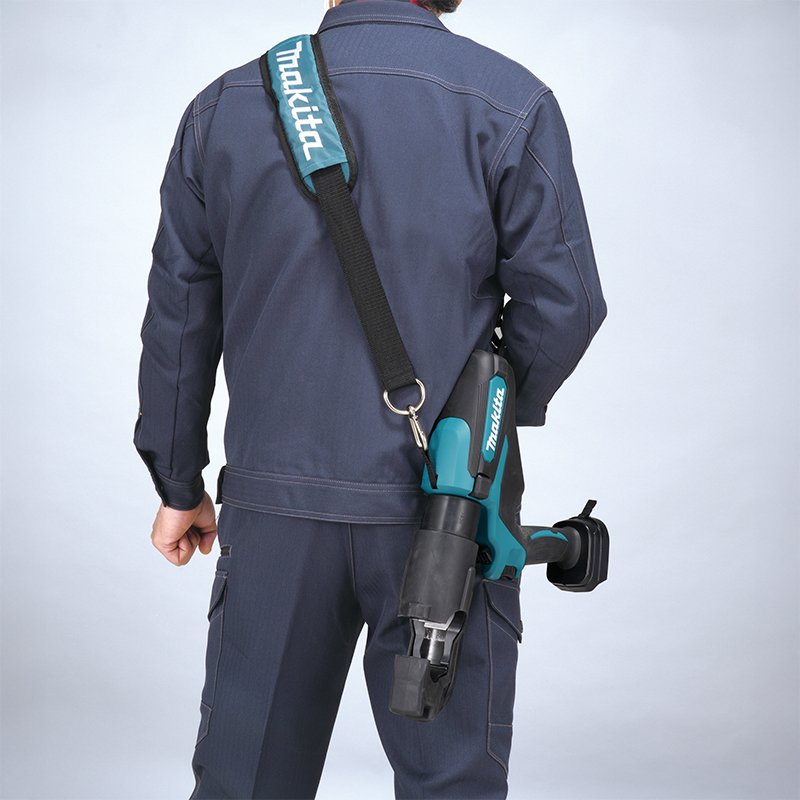

  • Straps for attaching the optional shoulder strap
  • Soft grip provides increased comfort during use
  • Thirteen types of crimping dies, compatible with DIN standards, are provided as optional accessories.
Categories: , Brand:

Output force :- 120 kN


Ram stroke length :- 31 mm (1-1/4″)


Crimping capacity :- Cu = ø19.5 mm (300 mm²) / Al = ø19.5 mm (300 mm²)


Auto retract function :- YES (Reverse rotation of motor)


On/Off setting of Auto retract function :- Yes


Dimensions (L x W x H) :- 415 x 92 x 346 mm (16-3/8 x 3-5/8 x 13-5/8″)


Dimensions (Battery) :- BL1860B


Net weight :- 6.8 – 7.1 kg


Net weight (Battery) :- BL1815N – BL1860B
