130MAX Series Heavy Duty Air Hammer

The 130MAX Series Heavy Duty Air Hammers are the next generation vibration-reduced air hammers. They offer incredible performance and power at an accessible cost—while leveraging a fine-tuned featherable trigger. Inspired by legendary Ingersoll Rand® impact wrenches, for more precision and even better results. Featuring an optimized combination of power and speed to achieve best-in-class BPM, the 130MAX Series can breeze through any job, from heavy duty front-end applications to the jobs that call for a lighter touch.

Models:

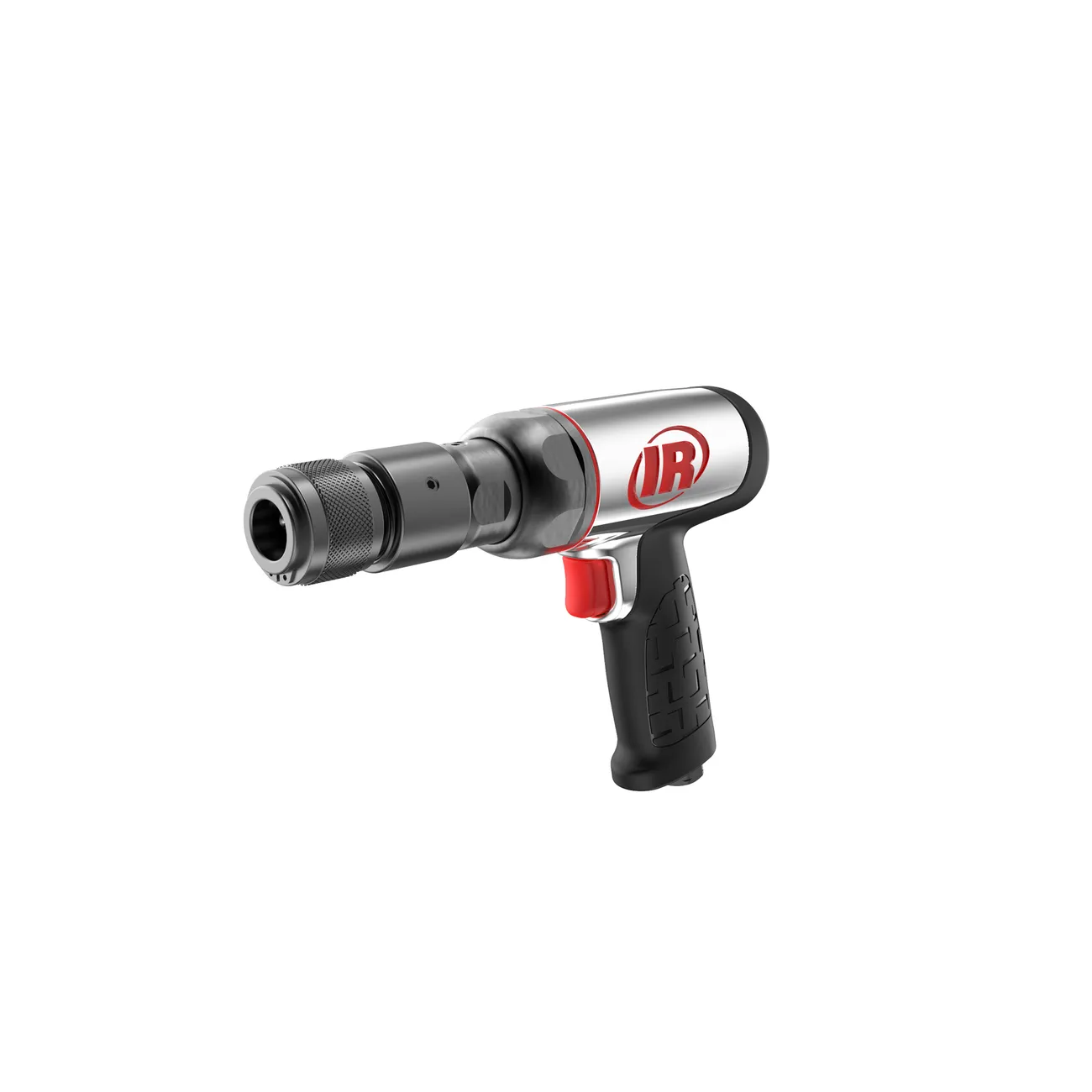

  • 133MAXH – Short Barrel

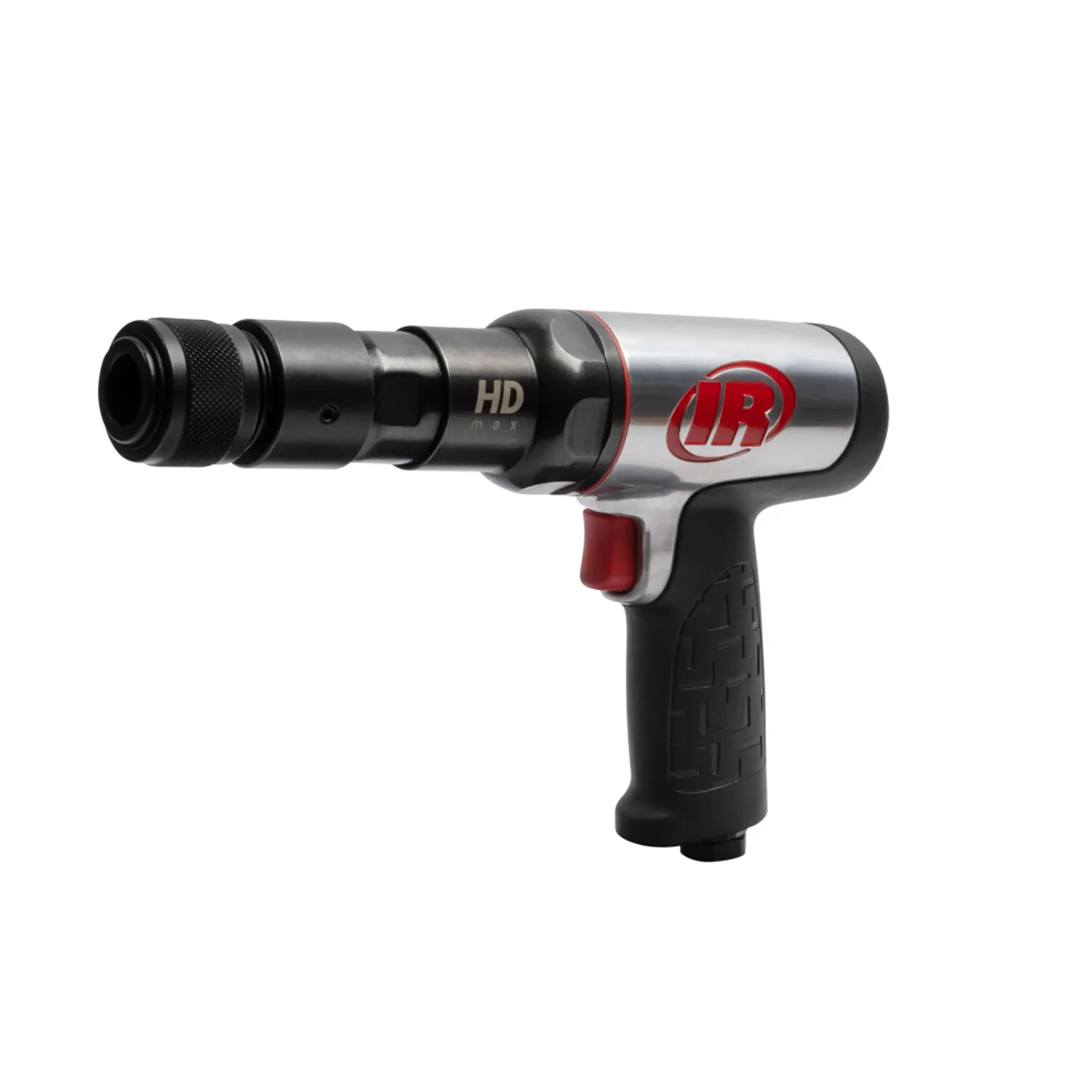

  • 135MAXH – Medium Barrel

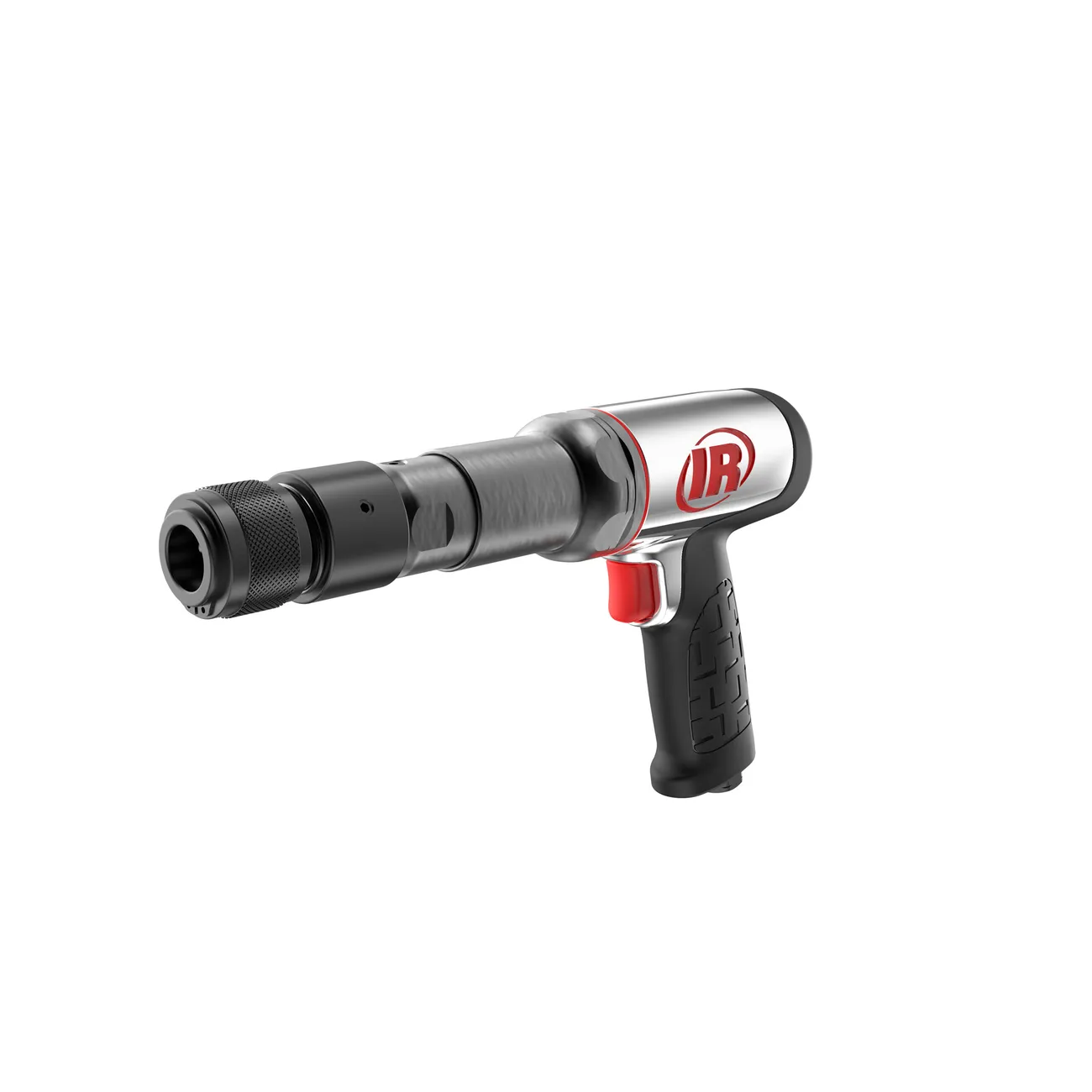

  • 139MAXH – Long Barrel

Features

MAX Power:

  • Break at lightspeed with the most powerful air hammer available—30% more powerful to get your job done faster than the leading competitive air hammer

MAX Productivity:

  • Quick-Change retainer provides fast chisel changeovers (included with tool)

MAX Control:

  • Feather-able trigger to give you the ultimate control over every job- from jobs that require the lightest touch to the hardest hitting applications, we’ve got you covered

MAX Assurance:

  • The 130MAX Series pneumatic hammers are backed by a two-year warranty, giving you peace of mind that your tool will work when you need it, every time

MAX Comfort:

  • Shock reduction and anti-slip grip



Model Specifications

Model

Description

Blows Per Minute

Stroke Length (mm)

Weight (kg)

Length (mm)

Shank Size (mm)

Shank Type

Sound Pressure/Power (dBA)

Vibration Level (m/s2)

Avg. Air Consumption (L/min)

Air Inlet NPT (in)

Min Hose Size (in)

Air Pressure (PSI)

133MAXH

Short Barrel

3330

63.5

1.76

189

9.9

Hex

89.1 / 100.1

4.7

460

1/4

3/8

90

135MAXH

Medium Barrel

2600

76

2.04

220

9.9

Hex

98 / 107

5.4

593

1/4

3/8

90

139MAXH

Long Barrel

2600

95

2.17

240

9.9

Hex

98.7 / 109.7

3.6

619

1/4

3/8

90
