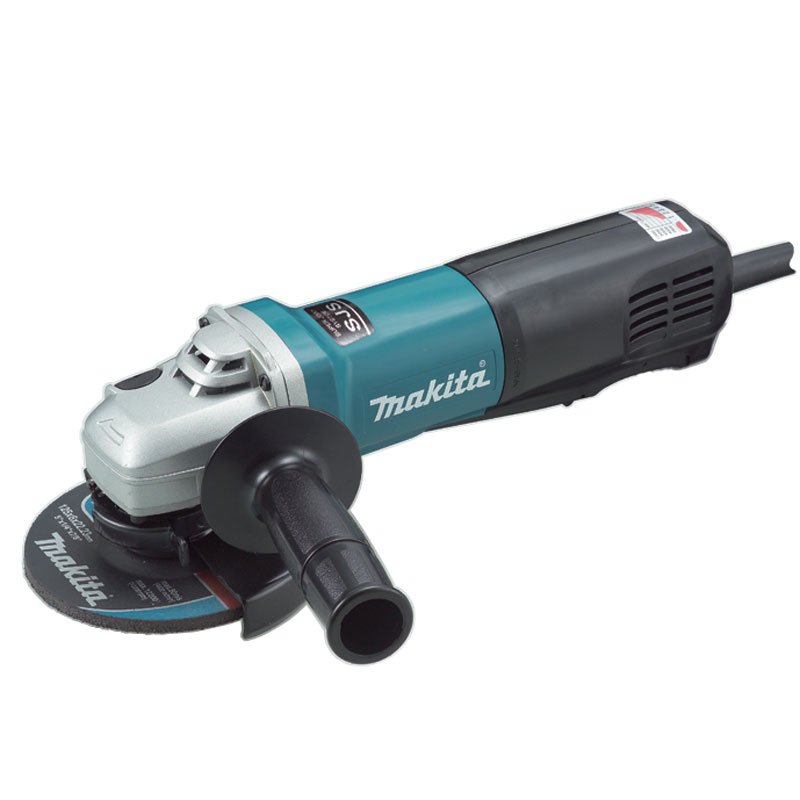

9565PCV Angle Grinder



125 mm (5″) 1,400 W SJS Variable Speed Angle Grinder, Soft Start, Paddle Switch

  • 125 mm (5″) 1,400 W SJS Variable Speed Angle Grinder, Soft Start, Paddle Switch
  • Paddle switch and variable speed dial for operator convenience
  • Powerful 1,400 W motor delivers more output and variable (2,800 – 10,500) RPM for the most demanding applications
  • SJS technology is a mechanical clutch system that helps minimize motor and gear damage by allowing the drive shaft to slip if the wheel is forced to stop
  • Variable speed control dial enables user to match the speed to the application
  • Electronic controller provides constant speed control which automatically applies additional power to the motor to maintain speed under load
  • Electronic controller provides soft-start which is designed to suppress start-up reaction for smooth start-ups and longer gear life
  • Labyrinth construction, zig-zag varnish and thicker coil wires for longer tool life
  • Refined design and lightweight for reduced operator fatigue
  • Large paddle switch with lock-off for comfortable operation
  • Toolless wheel guard adjustment for easy adjustment
  • Compact design at only 307 mm (12-1/8″) long
  • Connectable to Makita vacuum cleaner with optional dust collecting wheel guard
  • Push button spindle lock for operator convenience
  • Wheel cover protects operator from accidental scattering of broken wheel or workpiece with minimal wheel cover movement
  • Double insulated
Categories: , Brand:
Carbon Brush : 318


Continuous Rating Input : 1,400W


Wheel diameter : 125 mm (5″)


No load speed : 12,000 minˉ¹


Brush diameter capacity : 125 mm (5″)


Cup brush diameter capacity : 75 mm (3″)


Disc paper diameter : 125 mm (5″)


Rubber pad diameter : 115 mm (4.5″)


Hole diameter : 22.23 mm (7/8″)


Thread : M14x2.0


Abrasive grinding wheel diameter : 125 mm (5″)


Abrasive cut-off wheel diameter : 125 mm (5″)


Max abrasive wheel thickness : 6.4 mm (1/4″)


Diamond wheel diameter : 125 mm (5″)


Cup diamond wheel usable or not? : mm: YES, inch: YES


Vibration level : Surface grinding w/ Anti-vibration side grip: 10 m/s²

                              Disc sanding: 2.5 m/s² or less


Vibration K factor : Surface grinding w/ Anti-vibration side grip: 1.5 m/s²
                                    Disc sanding: 1.5 m/s²


Sound pressure level : 82 dB(A)


Sound power level : 93 dB(A)


Noise K factor : 3 dB(A)


Dimensions (L x W x H) : 307 x 139 x 103 mm (12-1/8 x 5-1/2 x 4″)


Net weight : 2.4 – 3.5 kg (5.3 – 7.7 lbs.)


Power supply cord : 2.5 m (8.2 ft)
