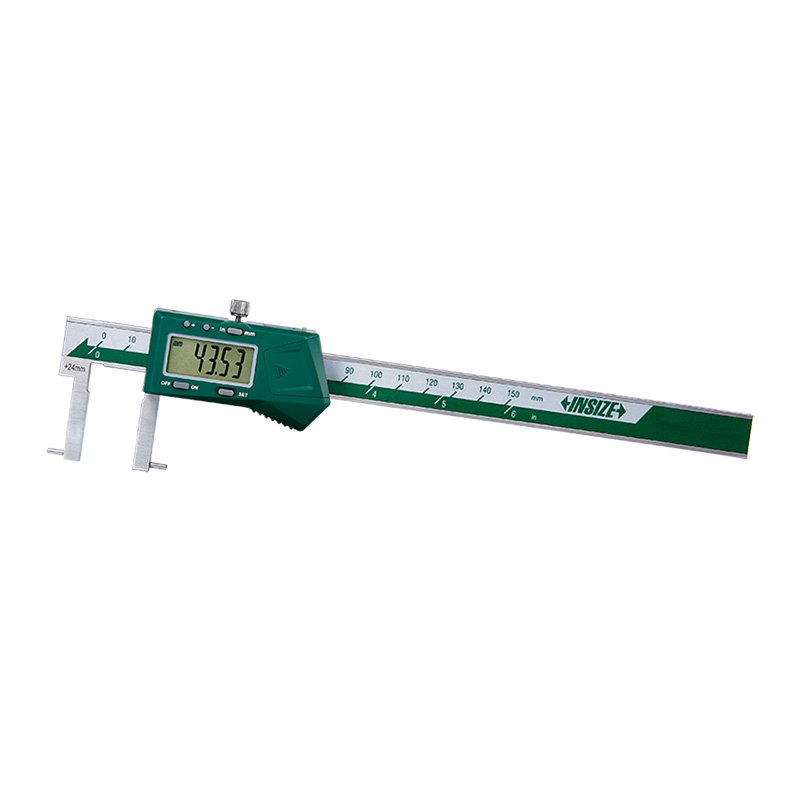

Digital Inside Point Calipers Code: 1121

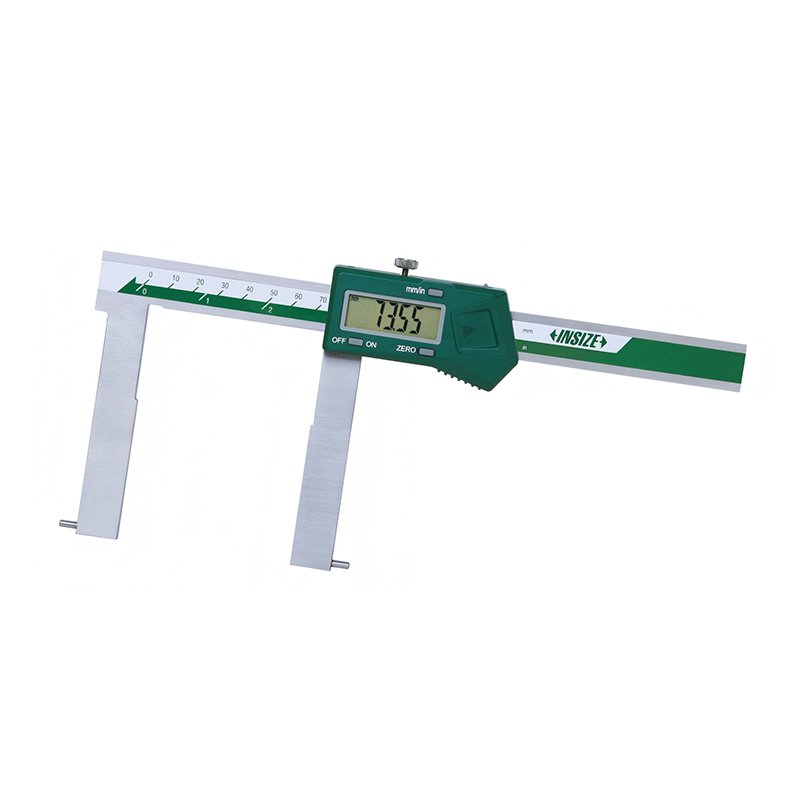

Digital Inside Point Calipers Code: 1121 - Image 2
,

Digital Inside Point Calipers Code: 1121

  • Non waterproof
  • Measure groove diameter
  • Buttons type A: on/off, set, mm/inch, preset (+, -), type B: on/off, zero, mm/inch
  • Automatic power off, move the digital unit to turn on power
  • Battery CR2032
  • Data output
  • Made of stainless steel
  • Optional accessory: depth stop (code 6143, for calipers with c=16mm)
Categories: , Brand:

Specification

Code Type Range Accuracy Resolution Data output
1121-150A A 24-150mm/0.94-6″ ±0.04mm 0.01mm/0.0005″ with data interface
1121-1501 A 35-150mm/1.38-6″ ±0.05mm 0.01mm/0.0005″ with data interface
1121-200A A 25-200mm/0.98-8″ ±0.04mm 0.01mm/0.0005″ with data interface
1121-2001 A 40-200mm/1.57-8″ ±0.05mm 0.01mm/0.0005″ with data interface
1121-300A A 30-300mm/1.18-12″ ±0.07mm 0.01mm/0.0005″ with data interface
1121-3001A A 50-300mm/1.97-12″ ±0.07mm 0.01mm/0.0005″ with data interface
1121-500A A 40-500mm/1.57-20″ ±0.07mm 0.01mm/0.0005″ with data interface
1121-5001 A 60-500mm/2.36-20″ ±0.08mm 0.01mm/0.0005″ with data interface
1121-5002 A 80-500mm/3.15-20″ ±0.08mm 0.01mm/0.0005″ with data interface
1121-150AWL A 24-150mm/0.94-6″ ±0.04mm 0.01mm/0.0005″ built-in wireless
1121-1501WL A 35-150mm/1.38-6″ ±0.05mm 0.01mm/0.0005″ built-in wireless
1121-200AWL A 25-200mm/0.98-8″ ±0.04mm 0.01mm/0.0005″ built-in wireless
1121-2001WL A 40-200mm/1.57-8″ ±0.05mm 0.01mm/0.0005″ built-in wireless
1121-300AWL A 30-300mm/1.18-12″ ±0.07mm 0.01mm/0.0005″ built-in wireless
1121-3001AWL A 50-300mm/1.97-12″ ±0.07mm 0.01mm/0.0005″ built-in wireless
1121-500AWL A 40-500mm/1.57-20″ ±0.07mm 0.01mm/0.0005″ built-in wireless
1121-5001WL A 60-500mm/2.36-20″ ±0.08mm 0.01mm/0.0005″ built-in wireless
1121-5002WL A 80-500mm/3.15-20″ ±0.08mm 0.01mm/0.0005″ built-in wireless
1121-150B B 50-150mm/1.97-6″ ±0.06mm 0.01mm/0.0005″ with data interface
1121-200B B 60-200mm/2.36-8″ ±0.06mm 0.01mm/0.0005″ with data interface
1121-300B B 60-300mm/2.36-12″ ±0.07mm 0.01mm/0.0005″ with data interface
