Shank / Drive : Square Drive 19 mm (3/4″)
-
Square drive : 19.0 mm (3/4″)
-
Anvil type : Long
-
Anvil length : 137 mm (5-3/8″)
-
Max fastening torque : 6-sec tightening: 1,360 N·m (1,000 ft.lbs.)
3-sec tightening: 1,150 N·m (N/A ft.lbs.)
-
Max fastening torque (Battery) : BL1860B
-
Max fastening torque (Other conditions) : When tightening an M27 friction grip bolt
-
Nut-busting torque : 1,700 N·m (1,250 ft.lbs.)
-
Nut-busting torque (Battery) : BL1860B
-
Nut-busting torque (Other conditions) : The maximum torque value at which an M33 friction grip bolt can be loosened within 3 seconds
-
Automatic impact stop system : Yes (Forward: 3 stages, Reverse: 1 stage)
-
No load speed : Max / Hard / Med. / Soft: 0 – 1,800 / 0 – 1,000 / 0 – 900 / 0 – 800 minˉ¹
-
Impacts per minute : Max / Hard / Med. / Soft: 0 – 2,200 / 0 – 1,800 / 0 – 1,600 / N/A – N/A minˉ¹
-
Vibration level (EN62841-2-2) : Impact tightening of fasteners of the maximum capacity of the tool: 14.2 m/s²
-
Vibration K factor (EN62841-2-2) : Impact tightening of fasteners of the maximum capacity of the tool: 1.8 m/s²
-
Sound pressure level (EN62841-2-2) : 100 dB(A)
-
Sound power level (EN62841-2-2) : 108 dB(A)
-
Noise K factor (EN62841-2-2) : 3 dB(A)
-
Switch type : Variable speed control by trigger with full speed mode
-
Dimensions (L x W x H) : 339 x 91 x 291 mm (13-3/8 x 3-5/8 x 11-1/2″)
-
Dimensions (Battery) : BL1860B
-
Net weight : 3.9 – 4.2 kg (8.6 – 9.3 lbs.)
-
Net weight (Battery) : BL1815N – BL1860B
Impact Wrench, Power Tools

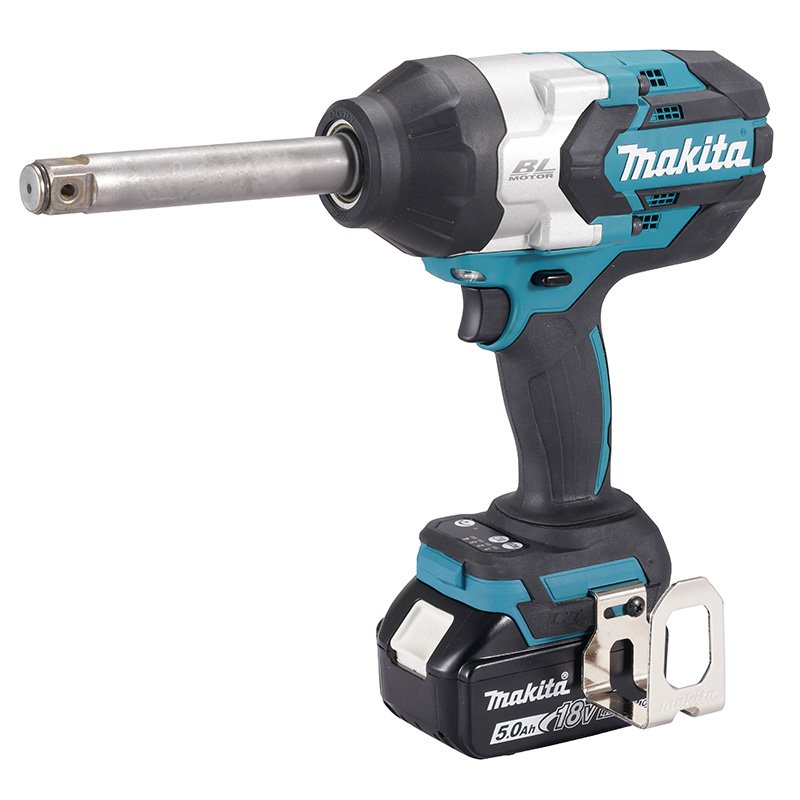

DTW1005 Cordless Impact Wrench
18V LXT BL Cordless 3/4″ (19 mm) 1,360 N·m (1,000 ft.lbs.) Impact Wrench, Forward/Reverse Rotation Auto Stop Mode
- Overview:

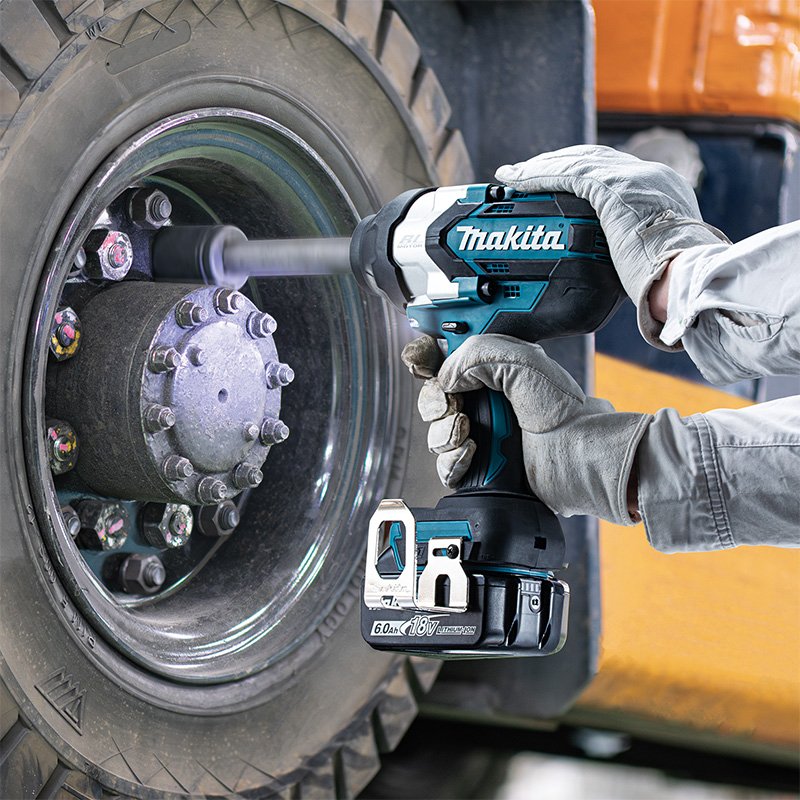

The DTW1005 is a cordless impact wrench with a 137mm (5-3/8″) long anvil with a 19mm (3/4″) square drive, powered by an 18V LXT Li-Ion battery. With high power and the long anvil, it is suitable for loosening and tightening bolts and nuts in recessed areas such as the rear wheels of trucks.
Four modes are available for forward rotation, with Modes 1, 2, and 3 featuring an auto-stop system to enhance bolt/nut tightening efficiency, making it suitable for tire removal and installation. - Delivers maximum fastening torque of 1,360N·m (1,000ft·lbs) and nut-busting torque of 1,700N·m (1,250ft·lbs)
- Mode settings suitable for tire removal and installation
Four modes are available for forward rotation
• Mode 1: Stops immediately after seating (30 – 50N·m), which is equivalent to manual tightening of large truck tires
• Mode 2: Stops approx. 0.3 seconds after seating (50 – 150N·m), which is equivalent to initial tightening of large truck tires
• Mode 3: Stops approx. 0.5 seconds after seating (300 – 450N·m), which is equivalent to temporary tightening of large truck tires
• Mode 4: Tightens at the maximum speed
Two modes are available for reverse rotation
• Mode 1-3 are on: Rotates slowly after finishing impacts
• Mode 4: Loosens at the maximum speed - Twin LED job light illuminates bolts and nuts
- The full-speed mode function reduces the trigger pull to reach the full speed, reducing hand and finger fatigue from trigger pull.
- Ergonomically designed handle with rubberized soft grip provides increased comfort
- Ensures stable torque until the end of the battery capacity with constant speed control
- Water-resistance compatible with XPT
