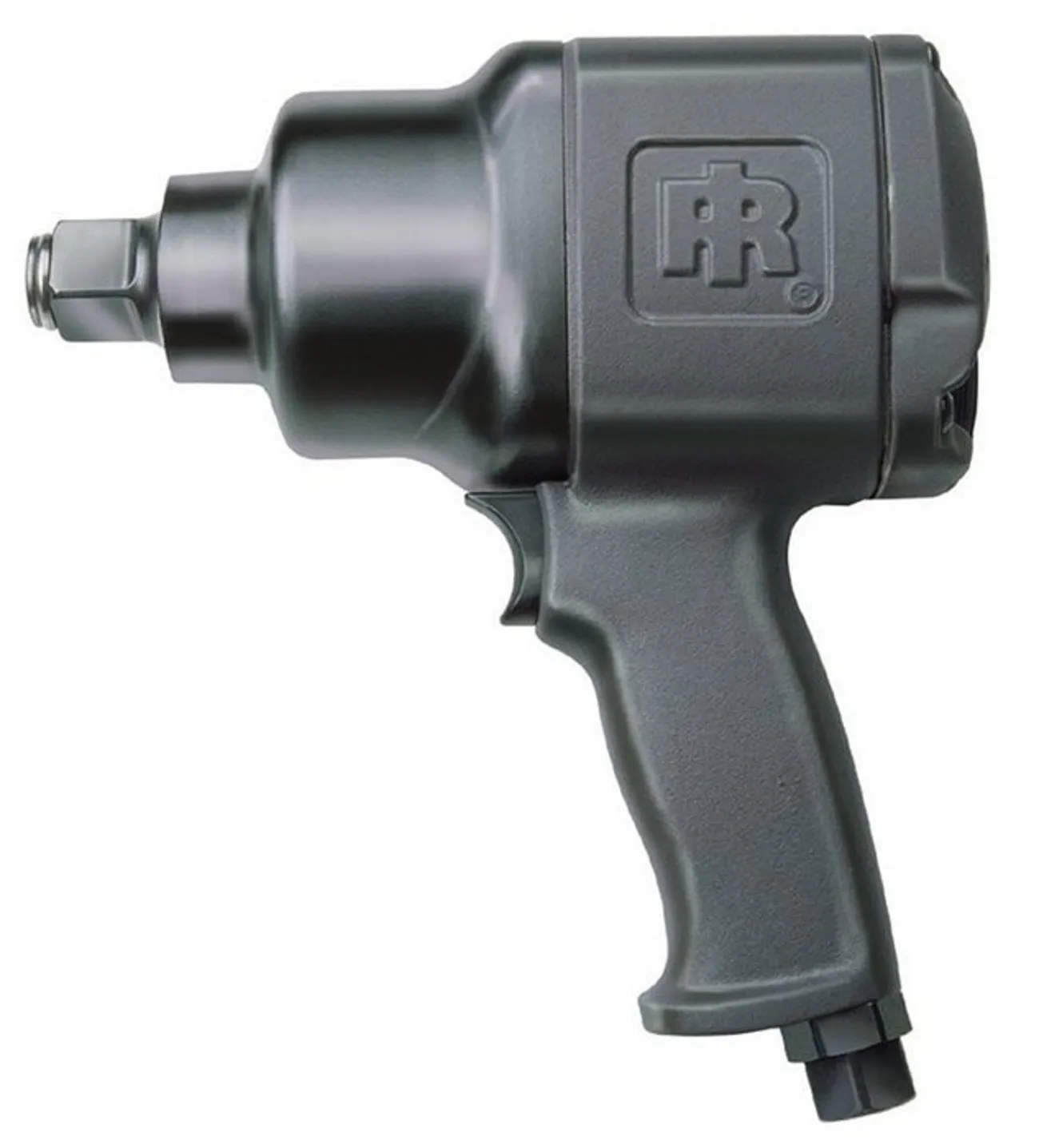

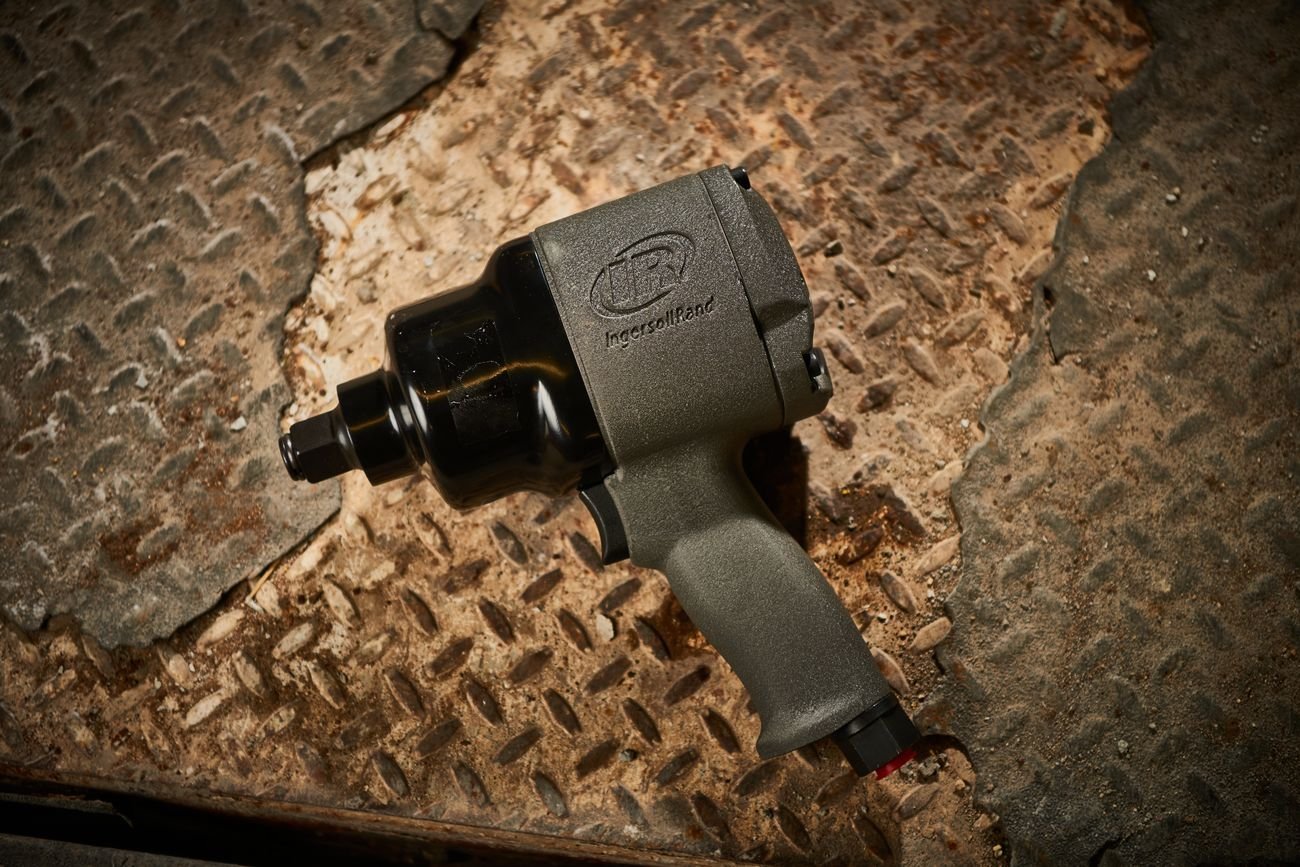

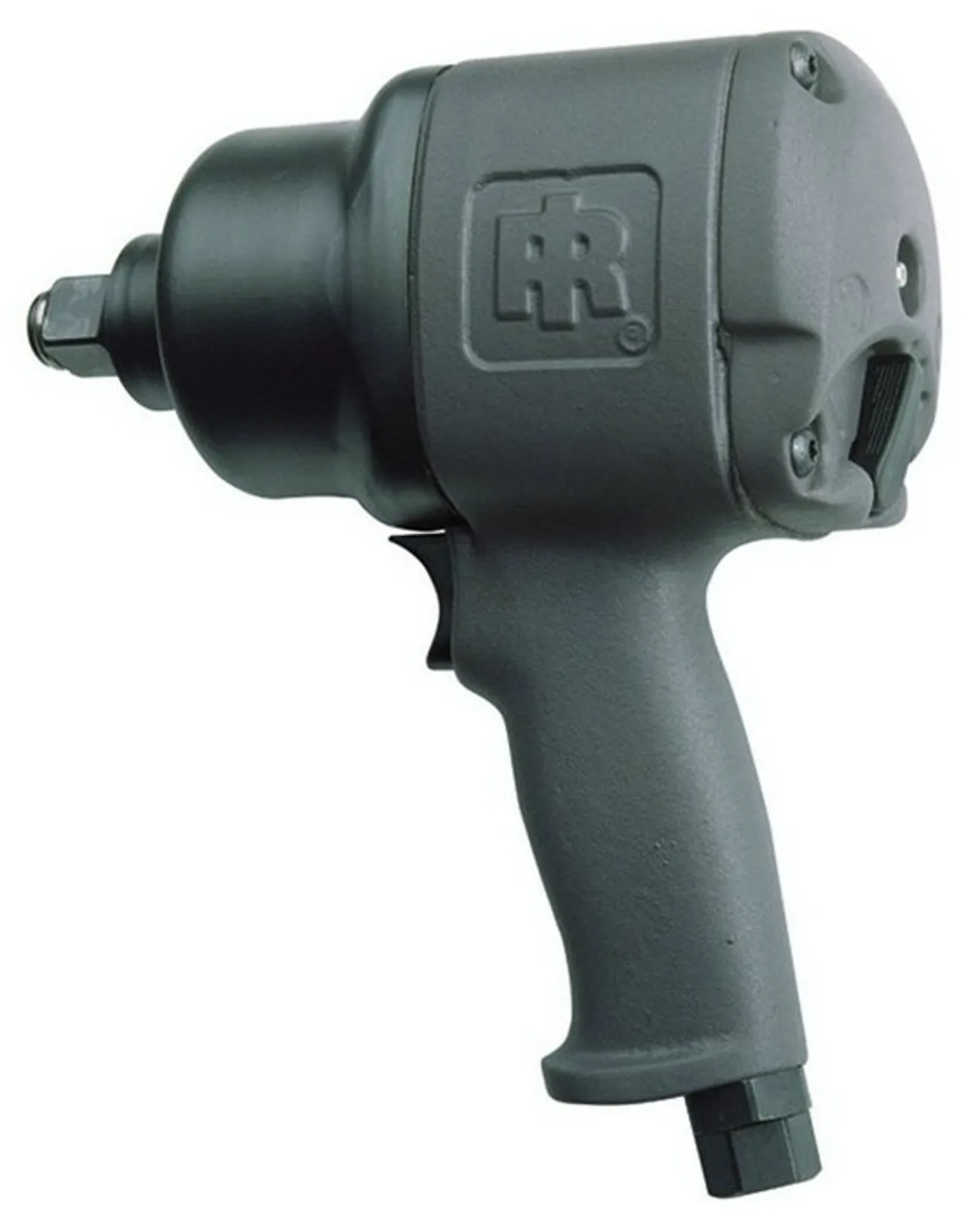

2161, 2171 Series Impact Wrench



The metal housing and steel hammer case of the 2161 | 2171 Series Impact Wrench makes this one of the toughest tools on the market. You’ll also benefit from the twin hammer impact mechanism, which provides a more even impact with every blow and makes it less sensitive to changes in air pressure.

Features

Durability:

  • This heavy-duty impact wrench is tough enough to handle harsh environments and repeated drops.

Versatility:

  • The 2161 | 2171 Series is an ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.

Increased Safety:

  • The square pin drive of the 2161 | 2171 Series provides the strongest connection to the socket to increase safety, especially when doing overhead work.

Other Features:

  • 1695 Nm of maximum reverse torque
  • 3-position power regulator and forward/reverse control

Model Specifications

Model Configuration Actuation Drive Size (in) Anvil Length Drive Type Max Reverse Torque (ft-lbs) Max Free Speed (rpm) Free Speed Sound Pressure/Power Db(A) Weight (lb) Height (in) Length (in) Air Inlet Min Hose Size (in) Avg Air Consumption (cfm)
2161P Pistol Grip Trigger 3/4 Standard Square 1,250 6,000 97.7 / 108.7 12.14 9.5 8.5 3/8″ NPT 1/2 10
2161XP Pistol Grip Trigger 3/4 Standard Square 1,250 6,000 97.2 / 108.2 12.14 9.5 8.5 3/8″ NPT 1/2 10

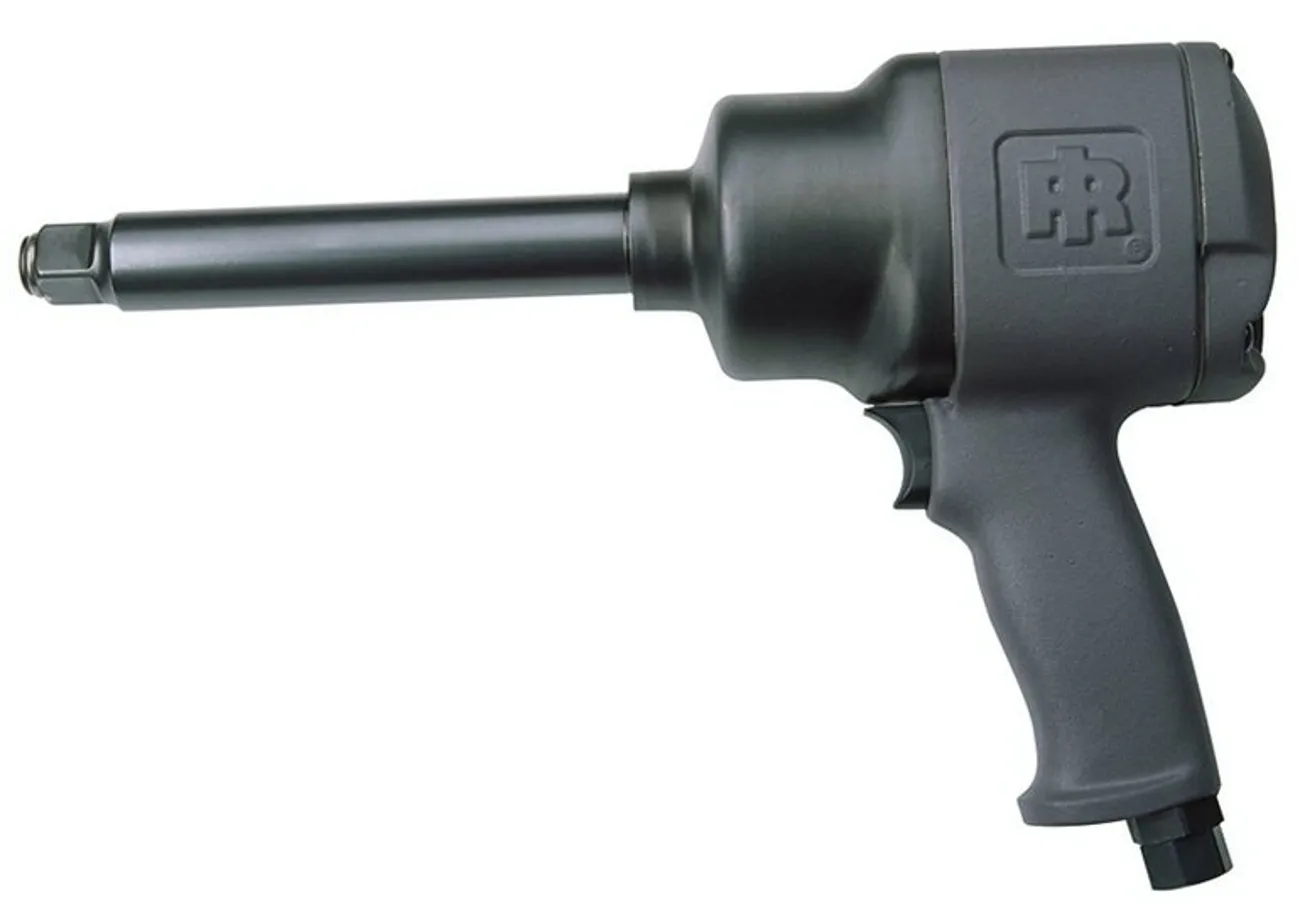

2161XP-6 Pistol Grip Trigger 3/4 6″ Extended Square 1,250 6,000 97.2 / 108.2 13.11 9.5 14.5 3/8″ NPT 1/2 10
2171P Pistol Grip Trigger 1 Standard Square 1,250 6,000 97.7 / 108.7 12.32 9.5 8.5 3/8″ NPT 1/2 10
2171XP Pistol Grip Trigger 1 Standard Square 1,250 6,000 96.4 / 106.3 12.32 9.5 8.5 3/8″ NPT 1/2 10
