Features

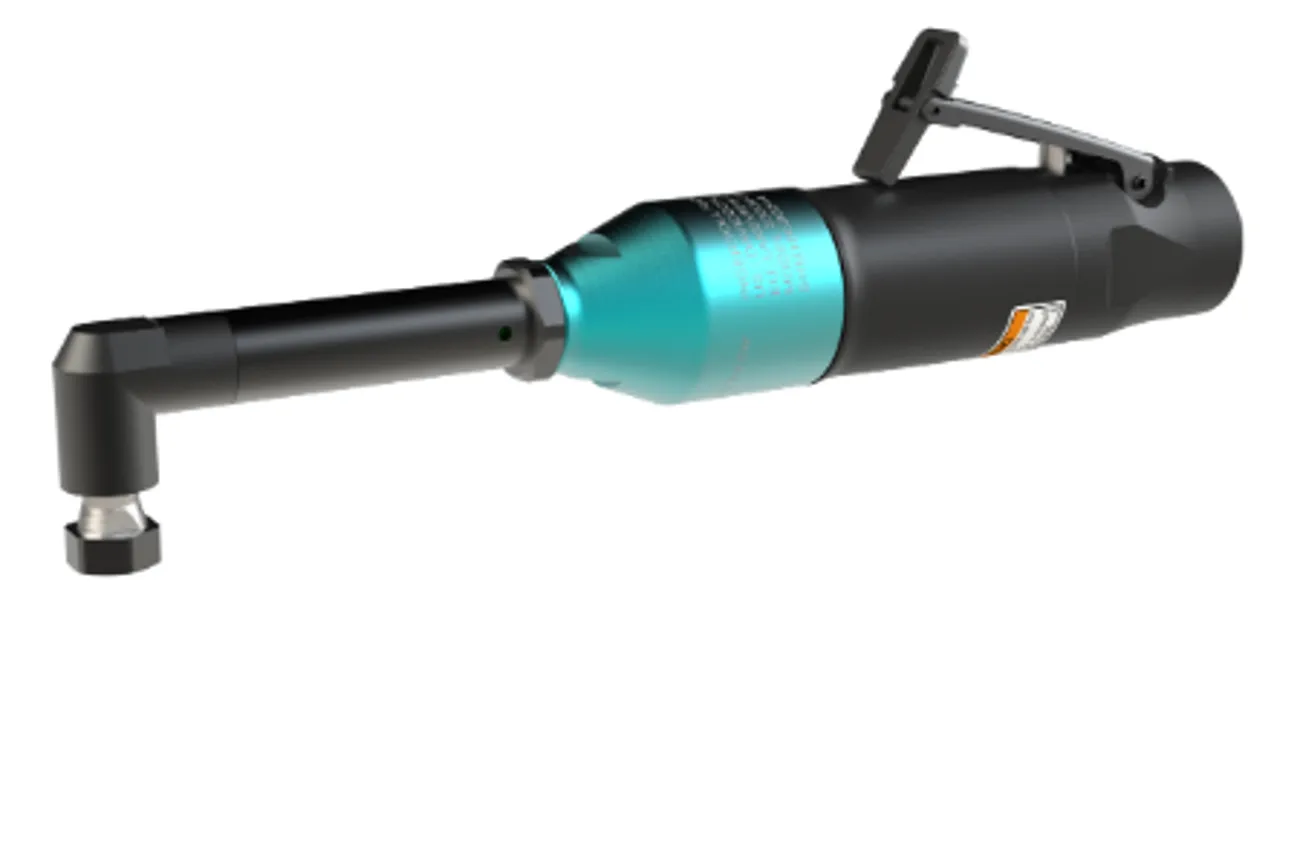

P33N Series The New Generation of Precision Drills:
- When Engineering know-how, state of the art design and ergonomics meet along with quality and new requirements of flexible production: Ingersoll-Rand provides you with it’s latest P33N generation of precision drills.
- The Ingersoll Rand P33N drill range, originates as an evolution from successfull P33 drill range, providing the same ideal flexibility, power and durability but with a better tool identification as well as an outstanding new ergonomics.
Flexibility and Interchangeability:
- One motor type 330W
- Pistol, Straight or Angle version
- Wide range of speeds available, from 660 to 18000 rpms
- 30°, 90°, 180° angle heads
- P33N is the ideal tool for the multi-task drilling environment, it matches operator needs for accuracy and precise drilling operations according to material and application requirements
Operator Confort and Ergonomics:
- Lube free motor for a clean working environment
- Soft touch housing for better ergonomic grip
Economic Effectiveness:
- P33N range share same motor and gears to reduce inventory cost
|
Model |
Speed (rpm) |
Torque (Nm) |
MAX capacity (mm) |
Weight (Kg) |
Length (mm) |
Air consumption (l/s) |
|---|---|---|---|---|---|---|
|
P33N006-DASL090P45 |
660 |
16.0 |
5.0 |
0.80 |
277 |
10 |
|
P33N006-DASL090P64 |
660 |
16.0 |
6.4 |
0.81 |
277 |
10 |
|
P33N011-DASL090P45 |
1100 |
9.5 |
5.0 |
0.80 |
277 |
10 |
|
P33N011-DASL090P45 |
1100 |
9.5 |
6.4 |
0.81 |
277 |
10 |
|
P33N016-DASL090P45 |
1600 |
6.8 |
5.0 |
0.80 |
277 |
10 |
|
P33N016-DASL090P64 |
1600 |
6.8 |
6.4 |
0.81 |
277 |
10 |
|
P33N022-DASL090P45 |
2200 |
4.5 |
5.0 |
0.70 |
262 |
10 |
|
P33N022-DASL090P64 |
2200 |
4.5 |
6.4 |
0.71 |
262 |
10 |
|
P33N032-DASL090P45 |
3200 |
3.2 |
5.0 |
0.69 |
262 |
10 |
|
P33N032-DASL090P64 |
3200 |
3.2 |
6.4 |
0.70 |
262 |
10 |
|
P33N054-DASL090P45 |
5400 |
1.9 |
5.0 |
0.69 |
262 |
10 |
|
P33N054-DASL090P64 |
5400 |
1.9 |
6.4 |
0.70 |
262 |
10 |
