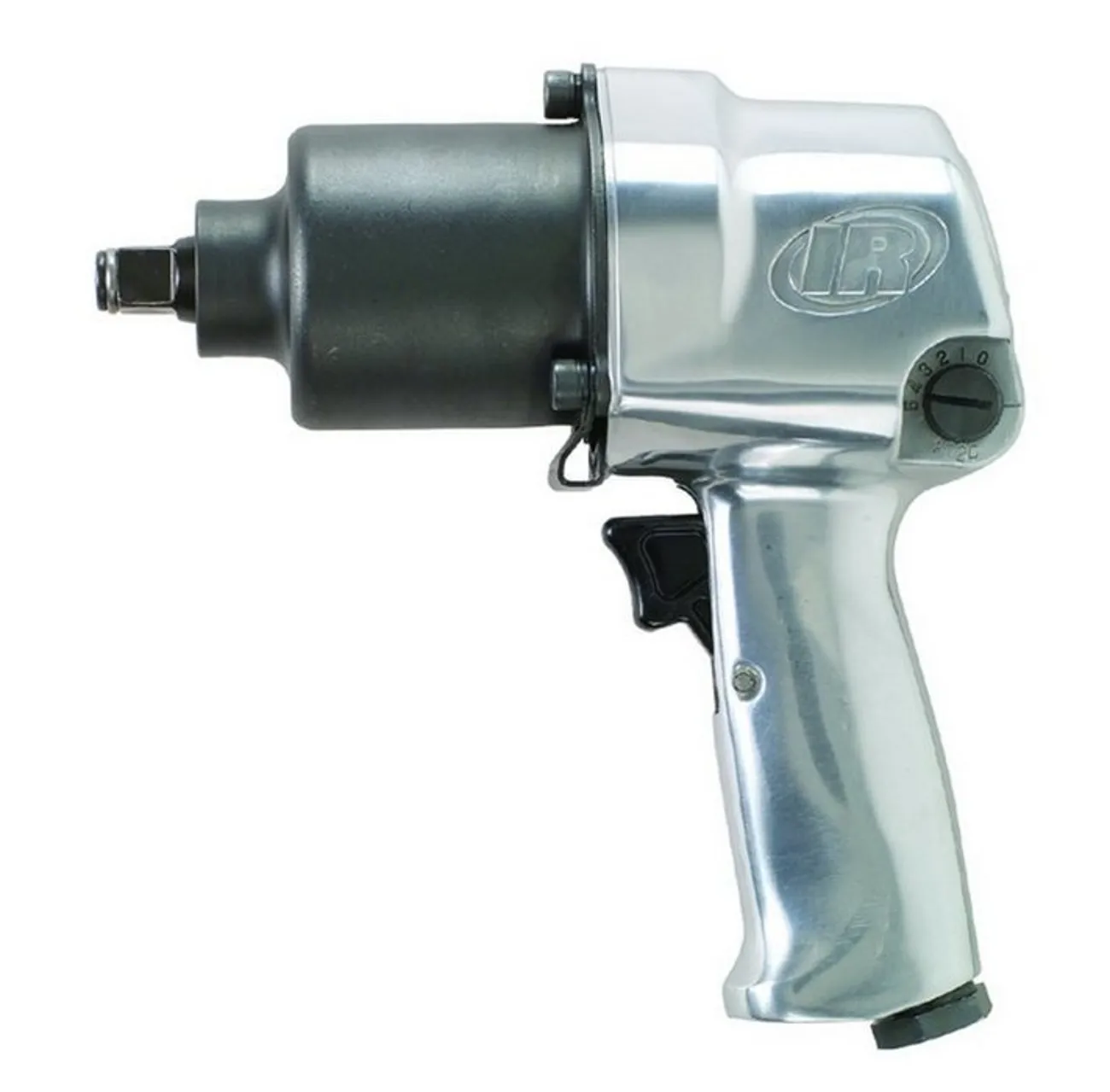

244A Series Impact Wrench

The 244A Series ½” Impact Wrench comes loaded with a steel hammer case, square socket retaining ring, vane motor and metal housing — making this wrench one of the toughest, most durable impact wrenches on the market.

Features

Reliability:

  • Ingersoll Rand impact wrenches are put to the test to ensure they’ll work as seamlessly as the day you bought them, every time you pull the trigger.

Increased Control:

  • The power regulator on the 244A Series provides you with increased control and stability on even your toughest projects.

Durability:

  • Tough and durable, the metal housing and steel hammer case on the 244A Series will help it hold up through repeated drops and harsh environments.

Increased Reach:

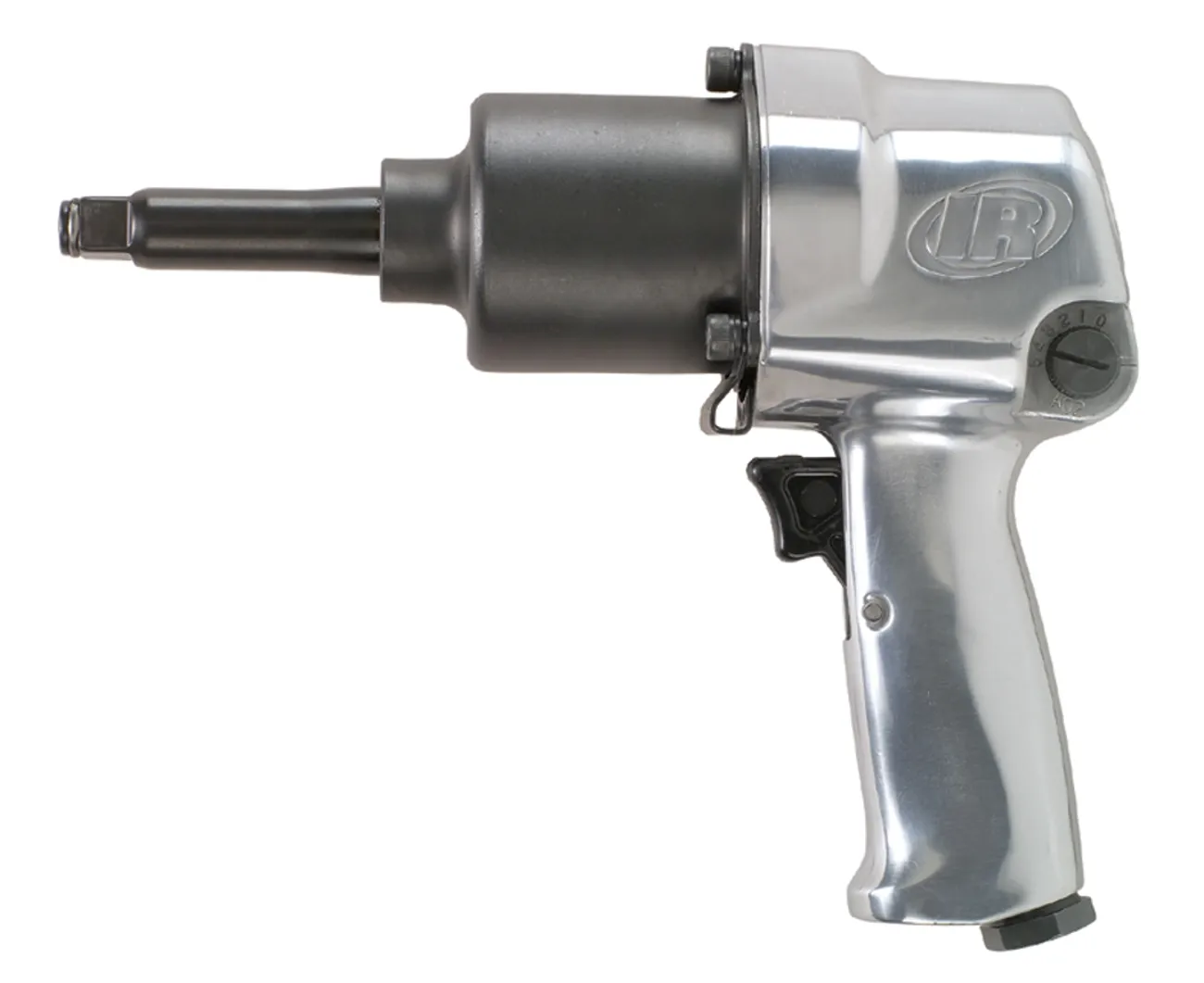

  • The extended anvil on the -2 version of these impact wrenches provides you with increased reach that’s invaluable when working with deeper fasteners.



Model Specifications

Model Configuration Actuation Drive Size Drive Type Forward Torque (ft-lbs) Forward Torque (Nm) Max Reverse Torque (ft-lbs) Max Reverse Torque (Nm) Blows per minute Free Speed (RPM) Impacting Sound Level dB(A) — ISO15744 (pressure/power) Free Speed Sound Level dB(A) — CAGI/ANSI S12.41 (pressure/power) Vibration Level m/s² (K) Weight (lbs) Weight (kg) Width (in) Width (mm) Height (in) Height (mm) Length (in) Length (mm) Air Inlet Min Hose Size (in) Min Hose Size (mm) Air Consumption @ Load (cfm) Air Consumption @ Load (L/min) Average Air Consumption (cfm) Average Air Consumption (L/min) PSI Bar
244A Pistol Trigger 1/2 in. Square, Hog-Ring N/A N/A 500 678 1300 7000 N/A 93.0 / 104.0 8.7 (0.8) 6 2.72 2.95 74.9 7.85 199.4 7.3 185 1/4 in. 3/8 10 21 595 5.4 153 90 6.2
244A-2 Pistol Trigger 1/2 in. Square, Hog-Ring, 2 in. Ext. N/A N/A 500 678 1300 7000 N/A 93.0 / 104.0 8.6 (1.1) 6.3 2.85 2.95 74.9 7.85 199.4 9.5 241 1/4 in. 3/8 10 21 595 5.4 153 90 6.2
