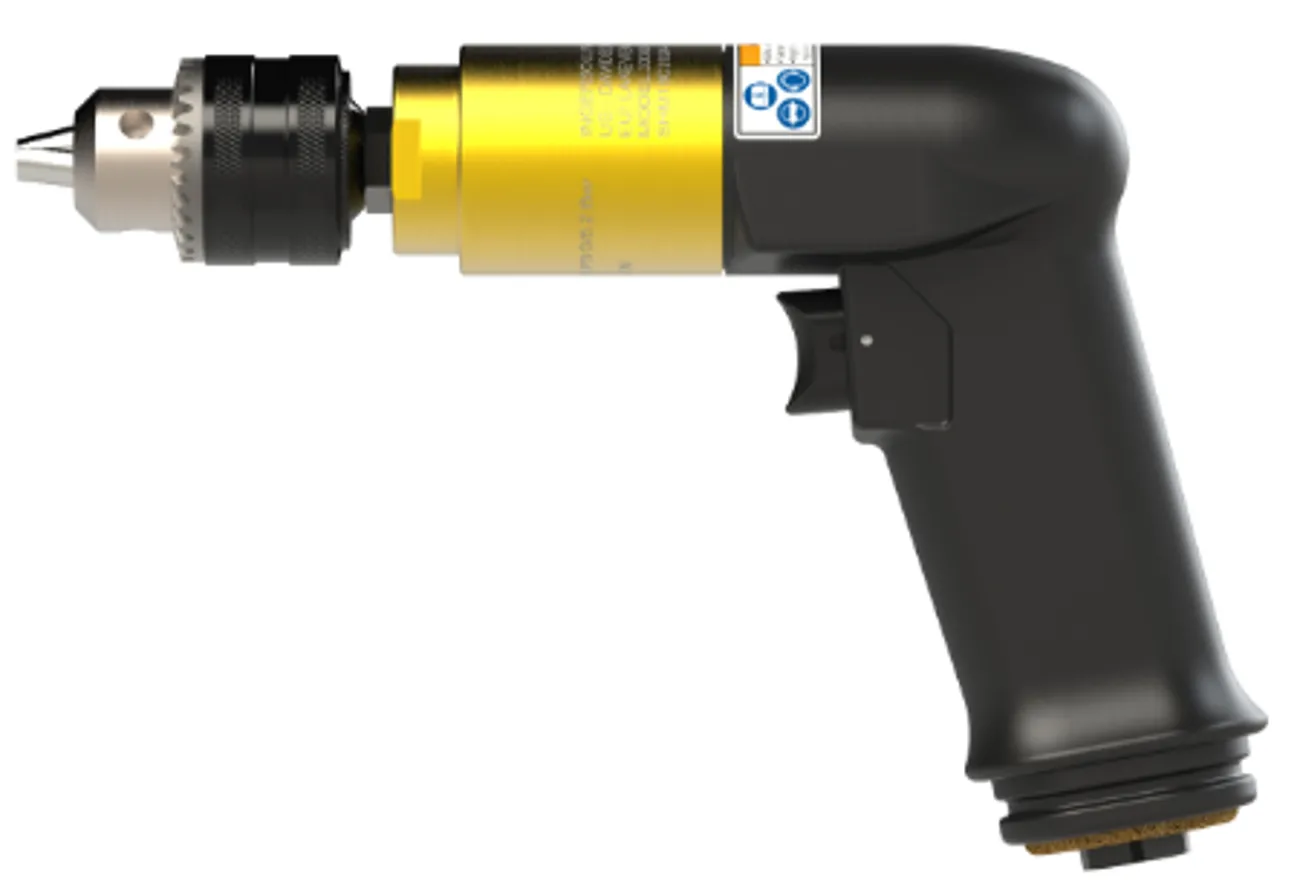

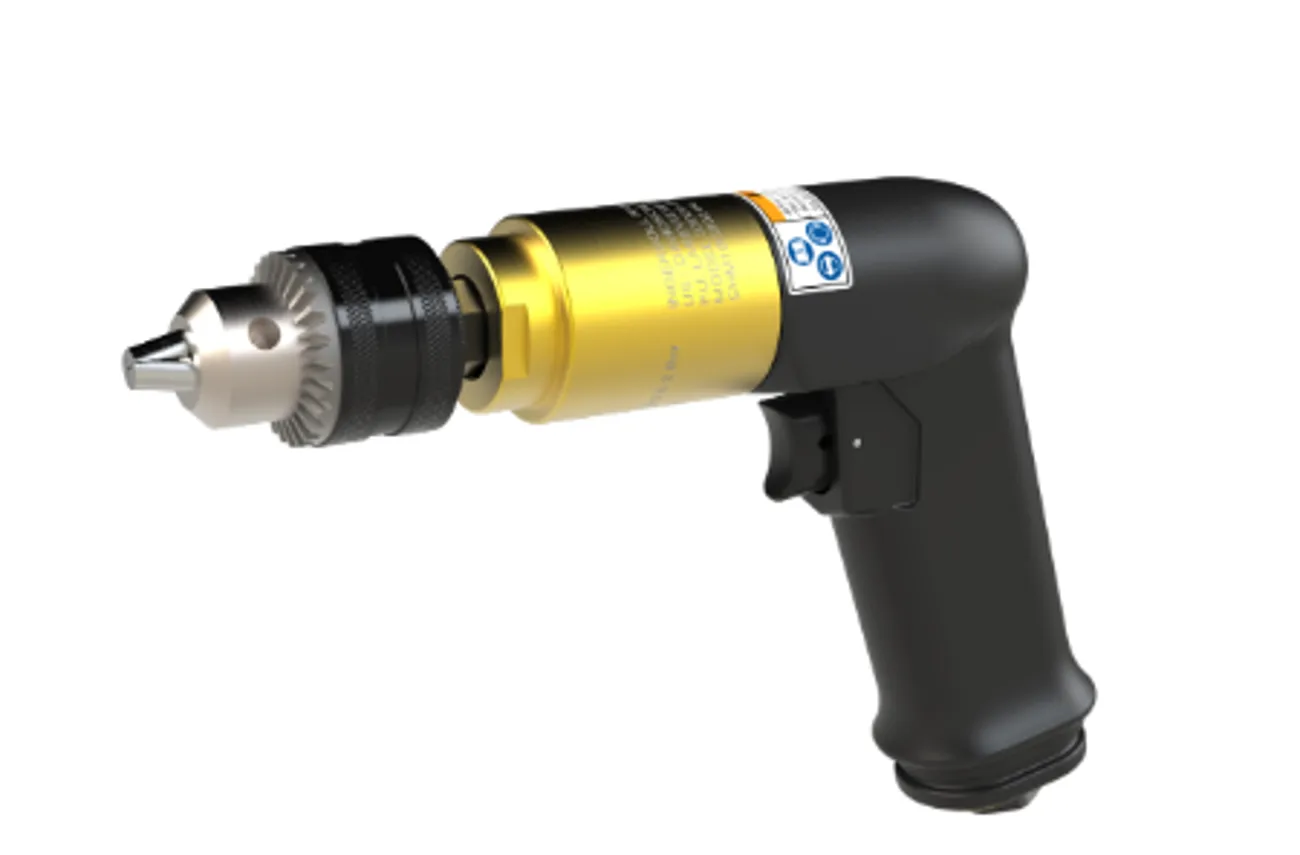

P33N PSL Precision Drills Non Modular Pistol

From aircraft manufacturing to aerospace maintenance, P33N is designed to offer flexibility and to answer for requirements of precise drilling and reaming of high technology materials for the aerospace industry.

Features

P33N Series the New Generation of Precision Drills:

  • When Engineering know-how, state of the art design and ergonomics meet along with quality and new requirements of flexible production: Ingersoll-Rand provides you with it’s latest P33N generation of precision drills.
  • The Ingersoll Rand P33N drill range, originates as an evolution from successful P33 drill range, providing the same ideal flexibility, power and durability but with a better tool identification as well as an outstanding new ergonomics.

Flexibility and Interchangeability:

  • One motor type 330W
  • Pistol, Straight or Angle version
  • Wide range of speeds available, from 660 to 18000 rpms
  • 30°, 90°, 180° angle heads
  • P33N is the ideal tool for the multi-task drilling environment, it matches operator needs for accuracy and precise drilling operations according to material and application requirements

Operator Confort and Ergonomics:

  • Lube free motor for a clean working environment
  • Soft touch housing for better ergonomic grip

Economic Effectiveness:

  • P33N range share same motor and gears to reduce inventory cost



Categories: , Brand:

Model Specifications

Model Speed (rpm) Torque (Nm) MAX capacity (mm) Weight (Kg) Length (mm) Side to center distance (mm)
P33N006-PSL 660 16.0 10 0.95 209 20
P33N011-PSL 1100 9.5 10 0.95 209 20
P33N016-PSL 1600 6.8 8 0.95 209 20
P33N022-PSL 2200 4.5 8 0.80 194 20
P33N032-PSL 3200 3.2 6 0.80 194 20
P33N054-PSL 5400 1.9 6 0.80 194 20
