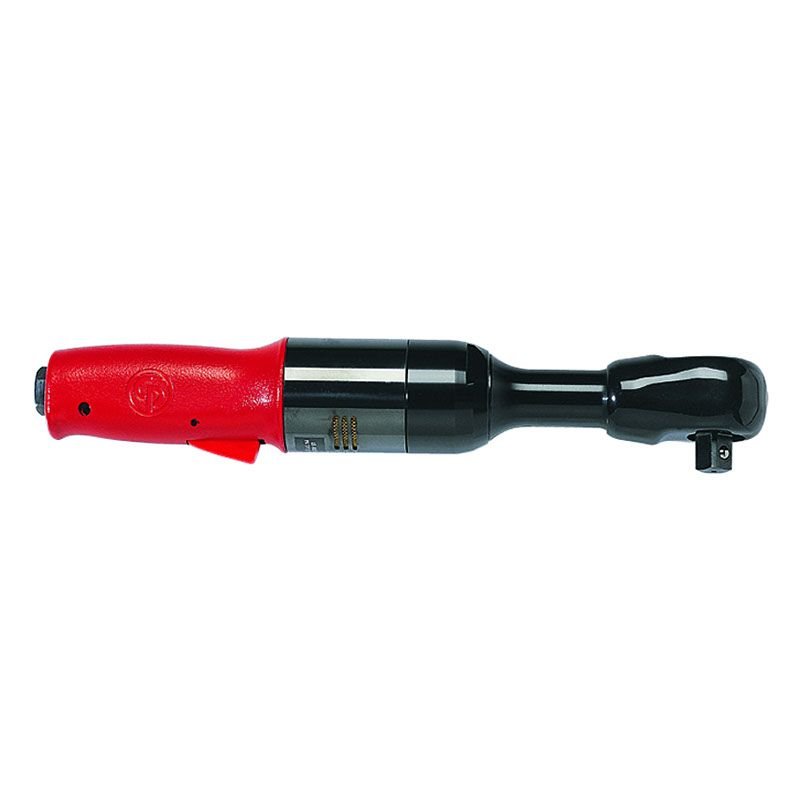

CP7830HQ 1/2" PNEUMATIC RATCHET WRENCH
,

CP7830HQ 1/2″ PNEUMATIC RATCHET WRENCH



The CP7830 features a maximum torque up to 90 ft.lbs / 122 Nm allowing quick and easy fastening. The progressive throttle allows users to apply the necessary amount of power safely and effectively. The tool benefits from the patented TriSpring Technology which guarantees anti-slip head design. The grease fitting option on the reverse button allows for easier lubrication. The pneumatic ratchet wrench CP7830 Series is composed of 2 models: 3/8″ and 1/2″ anvil.Country of origin is JP. Customs tariff is 84671190

Categories: , Brand:

Technical Specifications

Speed
Free Speed :- 190 rpm
Torque
Max working torque reverse :- 122 Nm
Max torque reverse :- 122 Nm
Min working torque reverse :- 13 Nm
Size & Weight
Length (L) :- 305 mm
Weight :- 1.2 kg
General
Subfamily :- Pneumatic Ratchet Wrenches
Noise & vibrations
Sound Power :- 96 dB(A)
Sound Pressure :- 85 dB(A)
Uncertainty vibration-K :- 1.4 m/s²
Vibration (m/s²) :- 4.1
Air information
Air consumption at load :- 8.7 l/s
Air inlet thread size (in) :- 1/4
Air inlet thread type :- NPT
Max dynamic air working pressure :- 6.3 bar
Min hose diam (5 m hose length) :- 10 mm
Design & Functions
Main Material type :- Composite
Output drive size (in) :- 1/2
Output drive type :- Sq
Output retainer type :- Ball detent
Starting system :- Lever

Benefits

  • Adjustable side exhaust and low noise for improved comfort
  • Progressive teasing throttle to better adjust the torque
  • Grease fitting on the reverse button for easier lubrication
  • Sturdy aluminium alloy head and CP’s patented TriSpring anti-slip head design with protective head cover for higher durability
