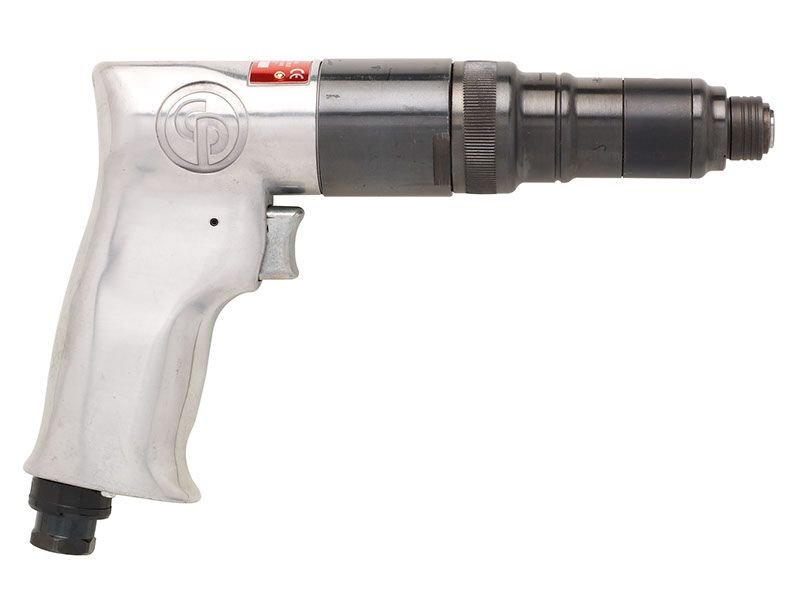

CP781 1/4"HEX CUSHION PNEUMATIC SCREWDRIVER
CP781 1/4"HEX CUSHION PNEUMATIC SCREWDRIVER - Image 2
,

CP781 1/4″HEX CUSHION PNEUMATIC SCREWDRIVER



The CP780/CP781 Series are 1/4″ hex quick change pistol cushion clutch screwdrivers designed for fastening operations. They feature a rugged aluminum body and steel clutch housing for durability while also being comfortable with their external clutch adjustment. Available in 2 free speed levels: Medium speed (CP781) and high speed (CP780).Country of origin is JP. Customs tariff is 84671190

Categories: , Brand:

Technical Specifications

Torque
Max torque in forward :- 11.3 Nm
Min torque in forward :- 6.2 Nm
Torque Control System :- Non shut-off-clutch
Design & Functions
Adjustment :- Rotative ring
Body :- Aluminium
Clutch housing :- Steel
Clutch Type :- Cushion clutch
Handle type :- Pistol
Main Material type :- Aluminium
Output drive size (in) :- 1/4
Output drive type :- Hex
Output retainer type :- Quick change
Reversible :- Yes
Starting system :- Trigger
Speed
Free Speed :- 800 rpm
Air consumption at free speed :- 11 l/s
Air information
Air inlet thread size (in) :- 1/4
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.38 in
Min hose diam (5 m hose length) :- 10 mm
Size & Weight
Height (H) :- 150 mm
Length (L) :- 226 mm
Weight :- 1.36 kg
Noise & vibrations
Sound Power :- 110.5 dB(A)
Sound Pressure :- 99.5 dB(A)
Vibration (m/s²) :- <2.5

Benefits

  • Fast screw fastening in cushion clutch high torque for better productivity
  • External clutch adjustment
  • Convenient single-handed forward/reverse for better ease of use
  • Robust aluminum body and steel clutch housing
  • Convenient single-handed forward/reverse for better ease of use
