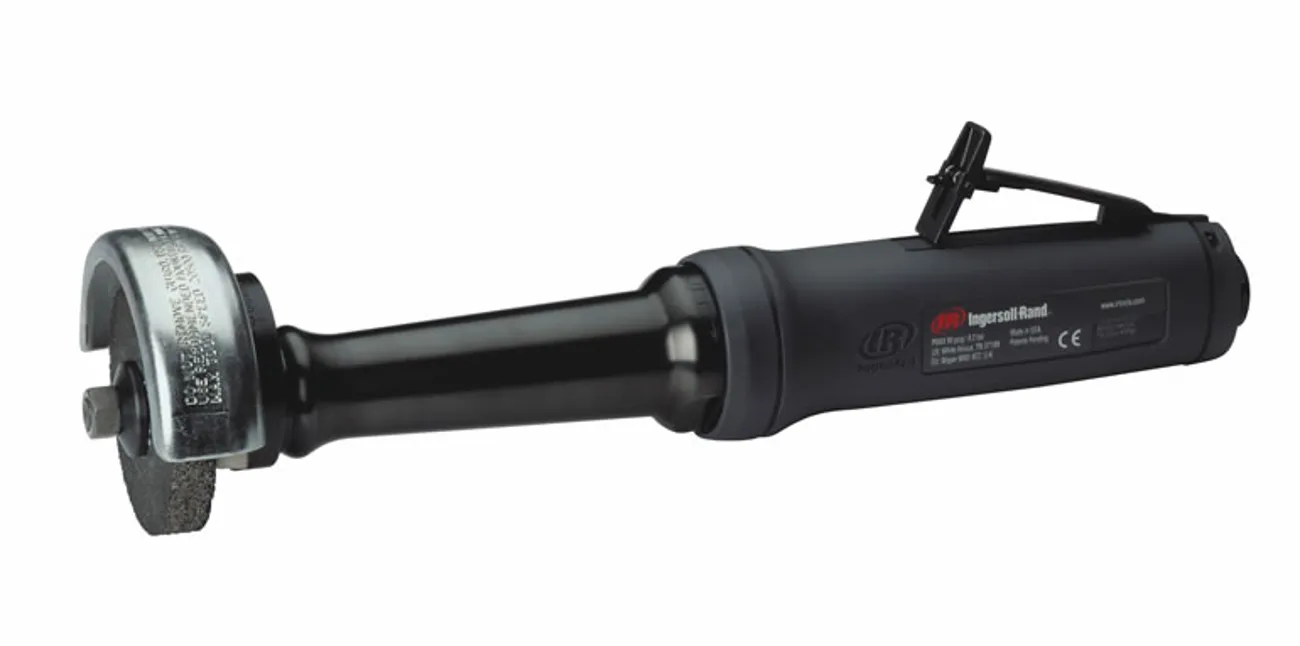

G3 Series Type 1 Grinders

The G-Series grinders deliver more power and precision for enhanced performance. They are easier to service, which means less downtime for users.
The G3 Series Angle Grinders are backed by Ingersoll Rand’s longstanding history of delivering strong, powerful tools that make your life easier.

Features

Power:

The G3 Series Type 1 has a superior power-to-weight ratio you can use to tackle the biggest jobs.

Comfort:

Ergonomic and lightweight, the Type 1 Grinder offers easy handling all day long.

Durability:

Able to withstand harsh environments and repeated drops, the G3 Series Type 1 can withstand the test of time.

Reliability:

The G3 Series Type 1 Grinder is a handy tool you can count on.

Categories: Grinder, Pneumatic Tools Brand: Ingersoll Rand

Description

Model Specifications

Model	Rated Power (kW)	Max Free Speed (rpm)	Collet Capacity	Weight in (kg)	Length (mm)	Max Air consumption (l/s)	Air Inlet diameter (in)	Vibration m/s2	Min Hose Size (mm)	Air Consumption @ Load (L/min)	Exhaust
G3X150RH64	1	15000	3/8 in.- 24 thread, 4 in. guard	4.4 (2)	358		3/8″	2.5, uncertainty: 0.8	13	935	Rear
G3X180RH63	1	18000	3/8 in.- 24 Thread, 3 in. Guard	4.4 (2)	358		3/8″	2.8, uncertainty: 0.9	13	1558	Rear
G3X150PH64	1	15000	3/8″ – 24	4.4 (2)	359	15.6	3/8″	2.5, uncertainty: 0.8	13		Rear
G3X180PH63	1	18000	3/8″ – 24	4.4 (2)	359	26	3/8″	2.8, uncertainty: 0.9	13		Rear
