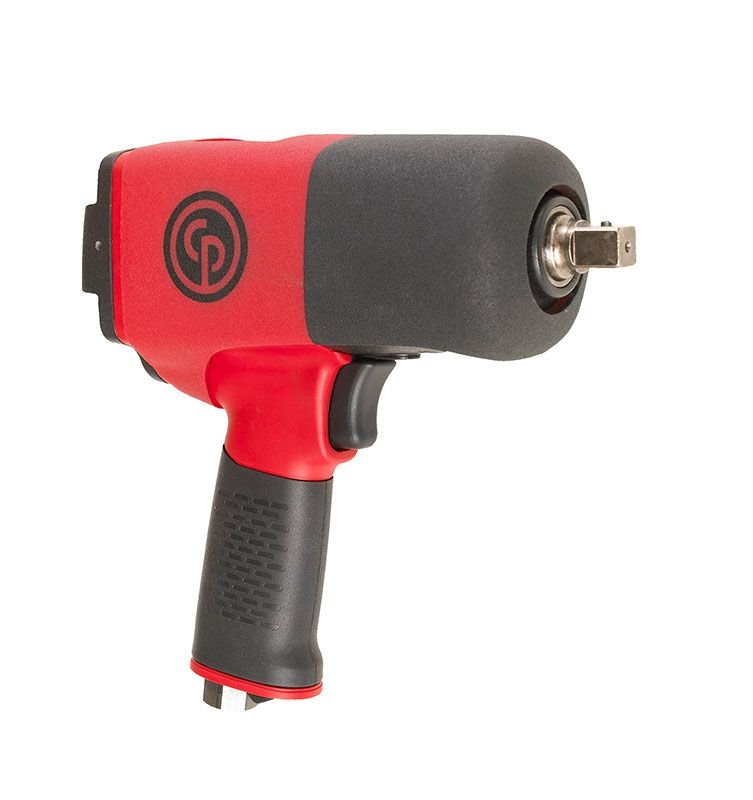

CP8252-P 1/2" PISTOL PNEUMATIC IMPACT WRENCH

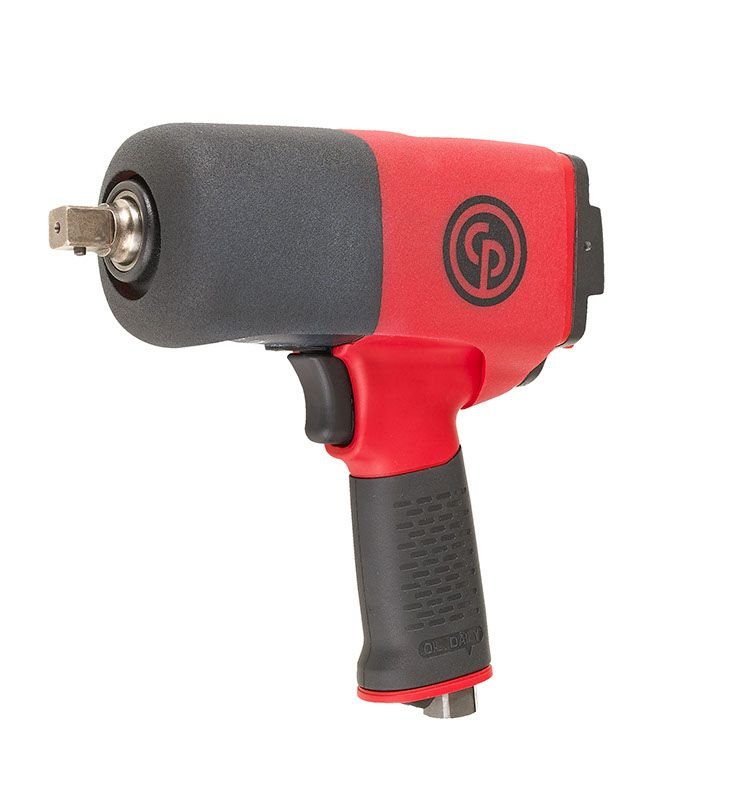

CP8252-P 1/2" PISTOL PNEUMATIC IMPACT WRENCH - Image 2
CP8252-P 1/2" PISTOL PNEUMATIC IMPACT WRENCH - Image 3

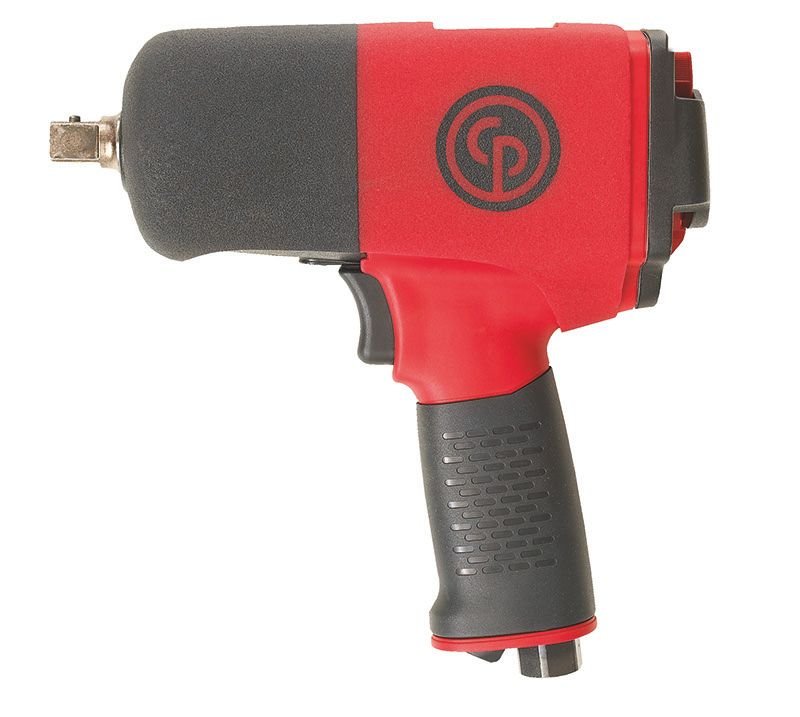

CP8252-P 1/2" PISTOL PNEUMATIC IMPACT WRENCH - Image 4
CP8252-P 1/2" PISTOL PNEUMATIC IMPACT WRENCH - Image 5
,

CP8252-P 1/2″ PISTOL PNEUMATIC IMPACT WRENCH



This series of ultralight, ergonomic impact wrenches, designed with a durable twin hammer clutch mechanism is highly recommended. The advantages of pneumatic technology are reinforced by the lightweight composite body design and an aluminium clutch housing for long-term use. Bolt mounting and removal is facilitated by ergonomic options such as an integrated bail and rubber grip handle. The CP82 series is available in 9 models with pin or ring dual socket retainer for a maximum reverse torque from 450 up to 1,650 Nm (332 up to 1217 ft.lb). The range extends from 3/8″ to 3/4″.Country of origin is TW. Customs tariff is 84671190

Categories: , Brand:

Technical Specifications

Torque
Max working torque fwd :- 750 Nm
Max torque reverse :- 950 Nm
Min working torque fwd :- 150 Nm
Torque limited :- No
Air information
Air consumption at load (Normo) :- 25.4 1/sNl
Air consumption at load :- 12 l/s
Air inlet thread size (in) :- 1/4
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.38 in
Min hose diam (5 m hose length) :- 10 mm
Noise & vibrations
Sound Power :- 105 dB(A)
Sound Pressure :- 94 dB(A)
Uncertainty vibration-K :- 3.6 m/s²
Vibration (m/s²) :- 8.8
Speed
Free Speed :- 9000 rpm
Size & Weight
Length (L) :- 200 mm
Power weight ratio :- 470 Nm/kg
Side to Center :- 35 mm
Weight :- 2 kg
Design & Functions
Blow per minute :- 1400
Body :- Composite
Clutch housing :- Aluminium
Clutch lubrication type :- Grease
Handle type :- Pistol
Impact mecanism :- Twin hammer
Main Material type :- Composite
Output drive size (in) :- 1/2
Output drive type :- Sq
Output retainer type :- Pin retainer
Starting system :- Trigger
Suspension option :- Included

Benefits

  • The twin hammer clutch mechanism offers a high power/weight ratio.
  • Low vibration sensation for operator comfort, even at very high torque.
  • Lightweight composite body and aluminium clutch housing
  • 3 power settings ensure high progressive maximum torque for smooth operation.

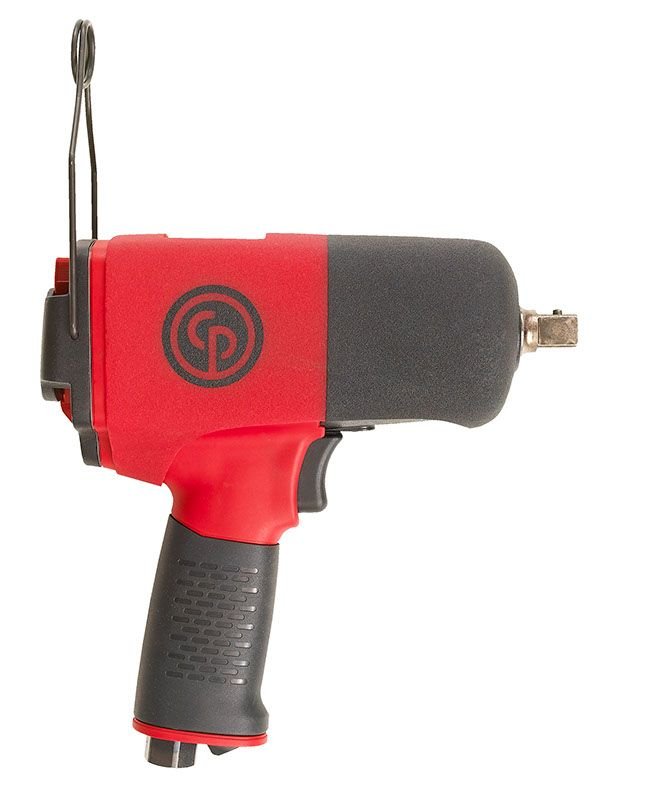

  • Integrated suspension bail for use with balancer
