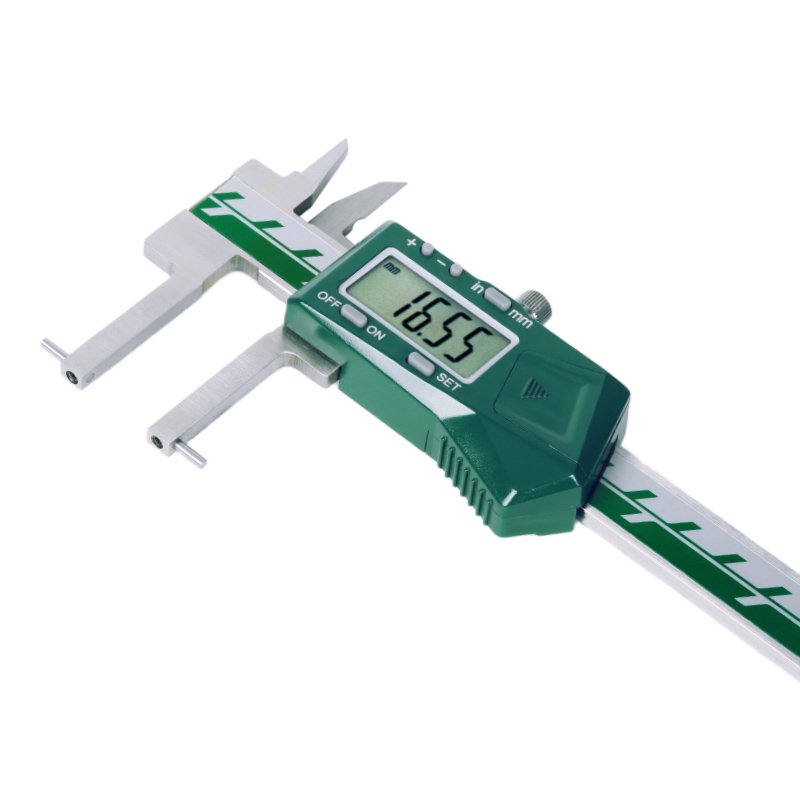

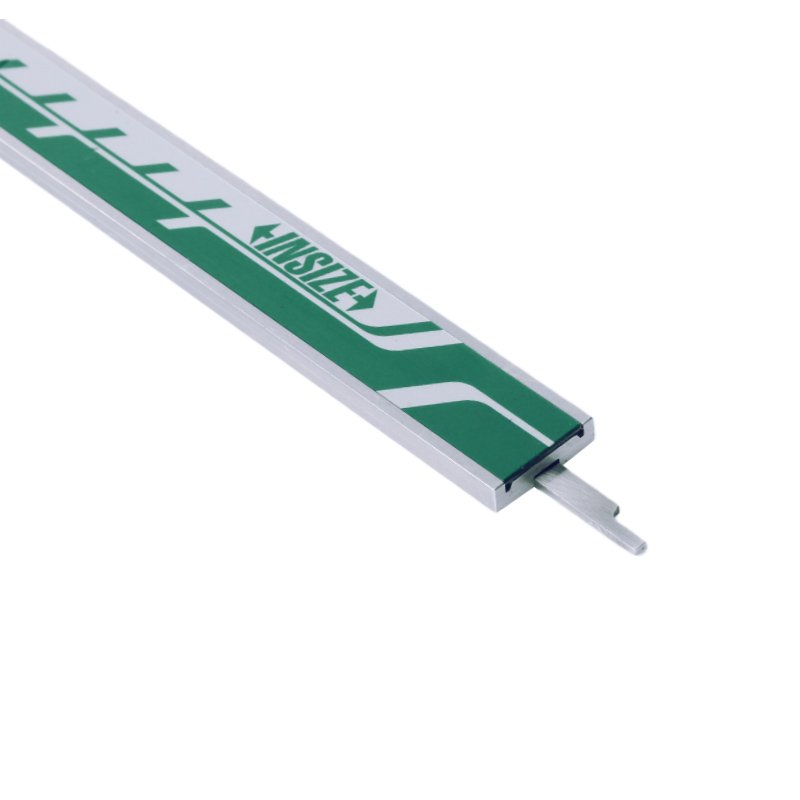

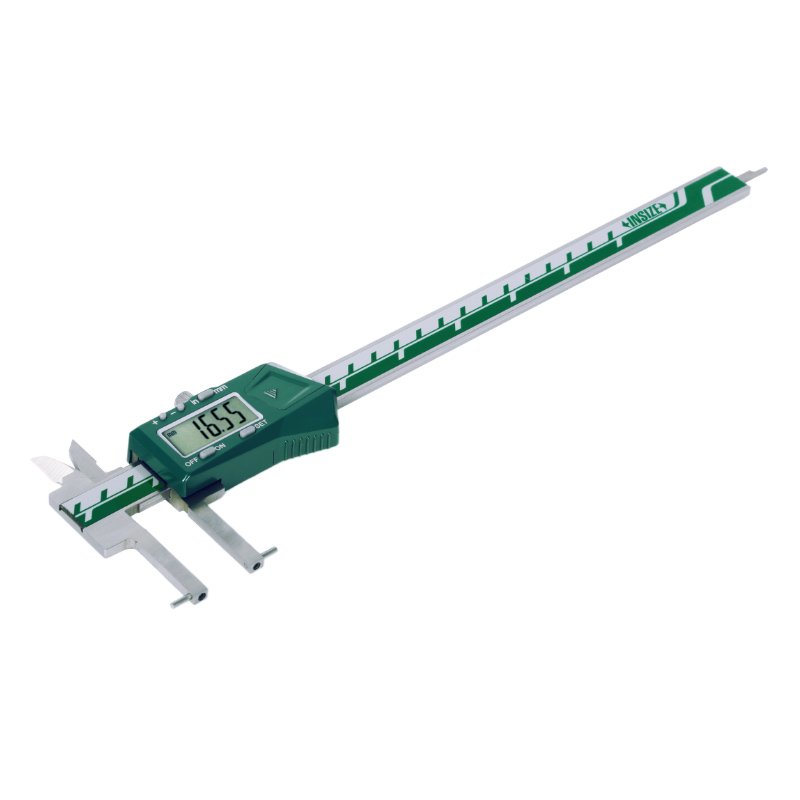

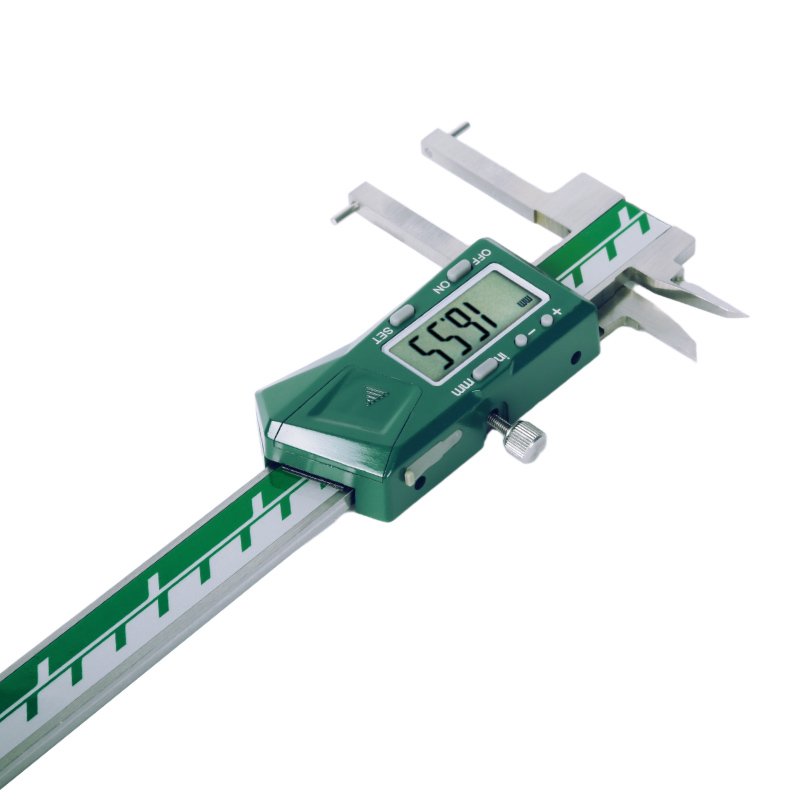

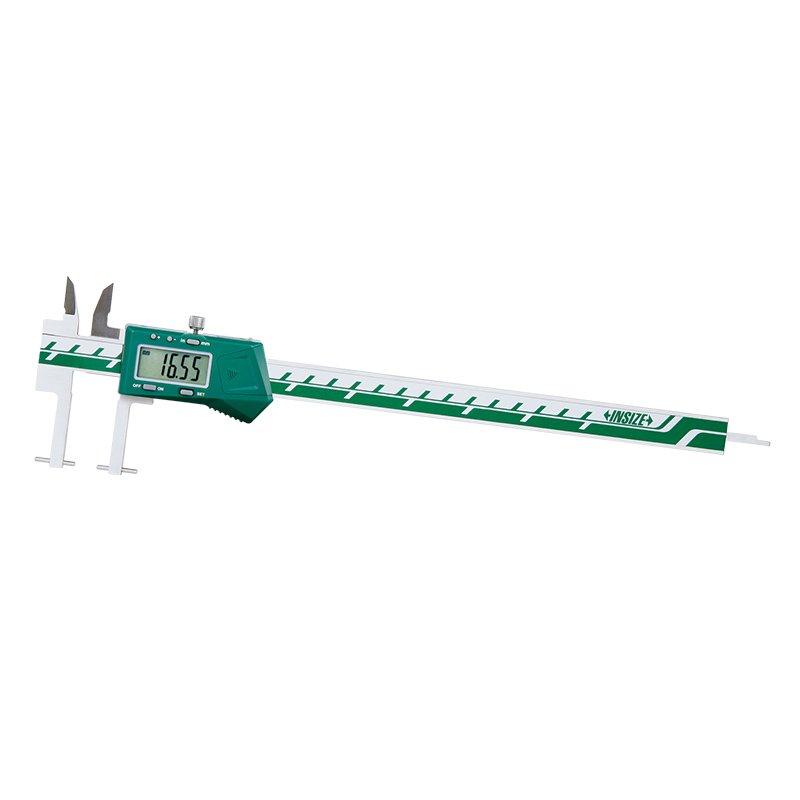

Digital Calipers With Interchangeable Points Code: 1526
Digital Calipers With Interchangeable Points Code: 1526 - Image 2
Digital Calipers With Interchangeable Points Code: 1526 - Image 3
Digital Calipers With Interchangeable Points Code: 1526 - Image 4
Digital Calipers With Interchangeable Points Code: 1526 - Image 5
,

Digital Calipers With Interchangeable Points Code: 1526

  • Non waterproof
  • Supplied with 3 pairs of points and zero setting block for external measurement
  • Resolution: 0.01mm/0.0005″
  • Buttons: on/off, set, mm/inch, preset (+, -)
  • Automatic power off, move the digital unit to turn on power
  • Battery CR2032
  • Made of stainless steel
Categories: , Brand:



Specification

Code Range Accuracy Resolution Data output Point
1526-200 12-212mm(internal) ±0.03mm 0.01mm/0.0005″ with data interface short spherical points
1526-200 24-224mm (internal), 0-187mm (external) ±0.03mm 0.01mm/0.0005″ with data interface long spherical/flat points
1526-200 24-224mm (internal), 0-187mm (external) ±0.03mm 0.01mm/0.0005″ with data interface spherical blade points
1526-200WL 12-212mm(internal) ±0.03mm 0.01mm/0.0005″ Built-in wireless short spherical points
1526-200WL 24-224mm (internal), 0-187mm (external) ±0.03mm 0.01mm/0.0005″ Built-in wireless long spherical/flat points
1526-200WL 24-224mm (internal), 0-187mm (external) ±0.03mm 0.01mm/0.0005″ Built-in wireless spherical blade points
