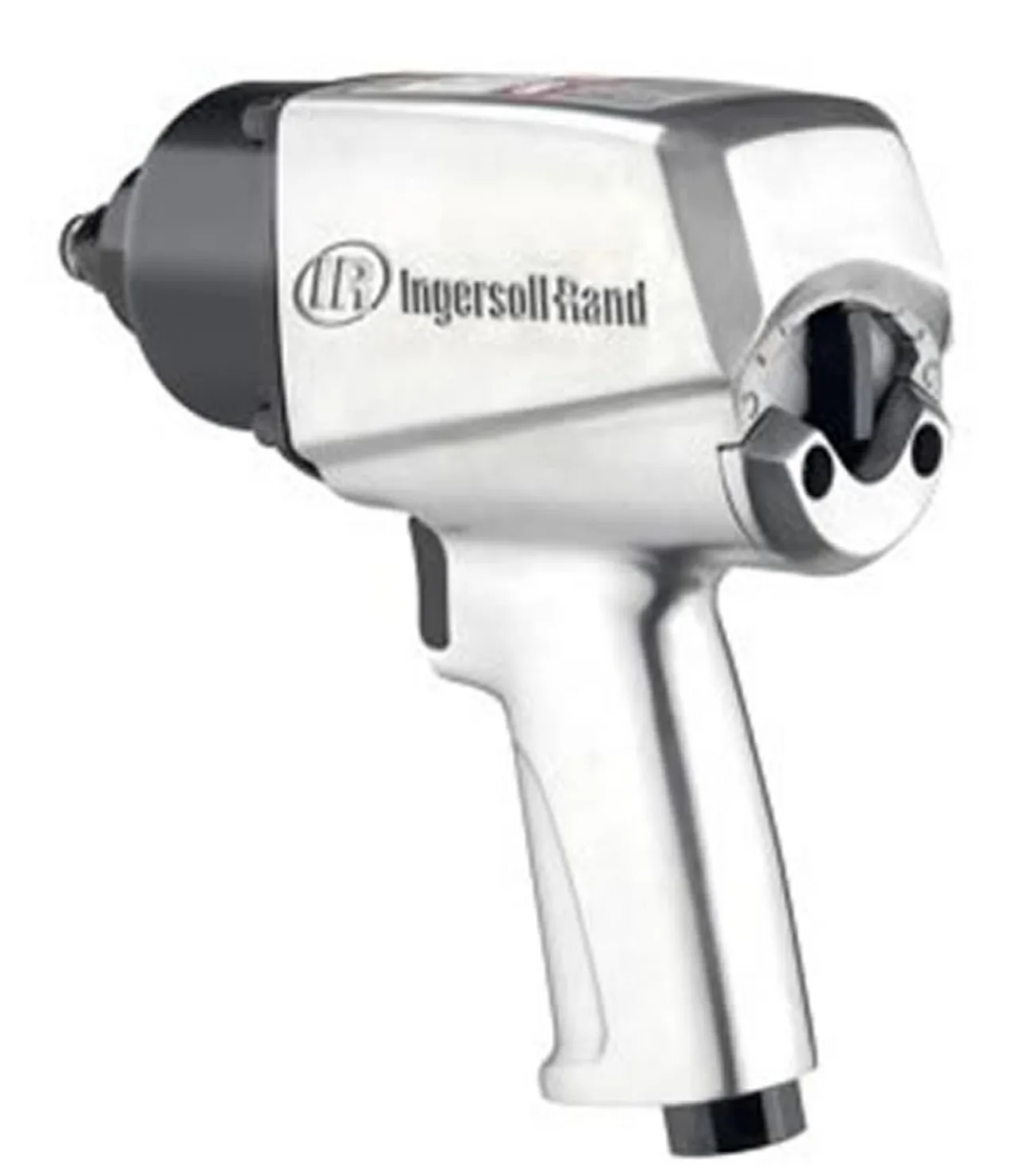

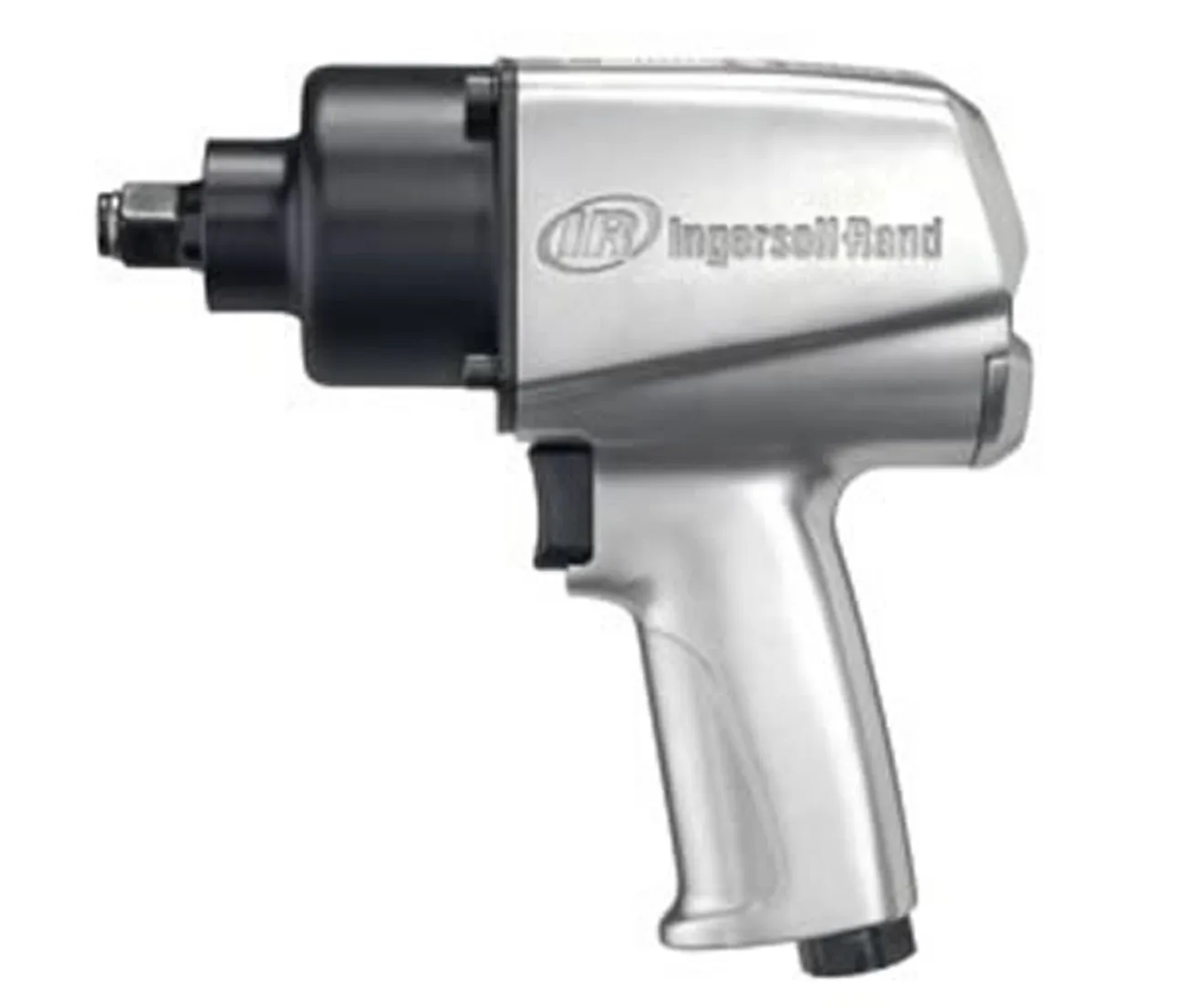

236 Impact Wrench

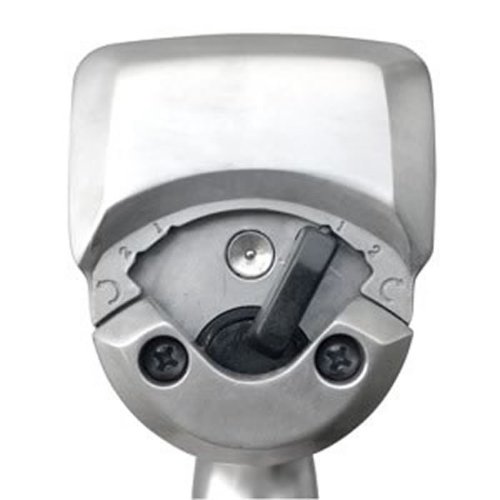

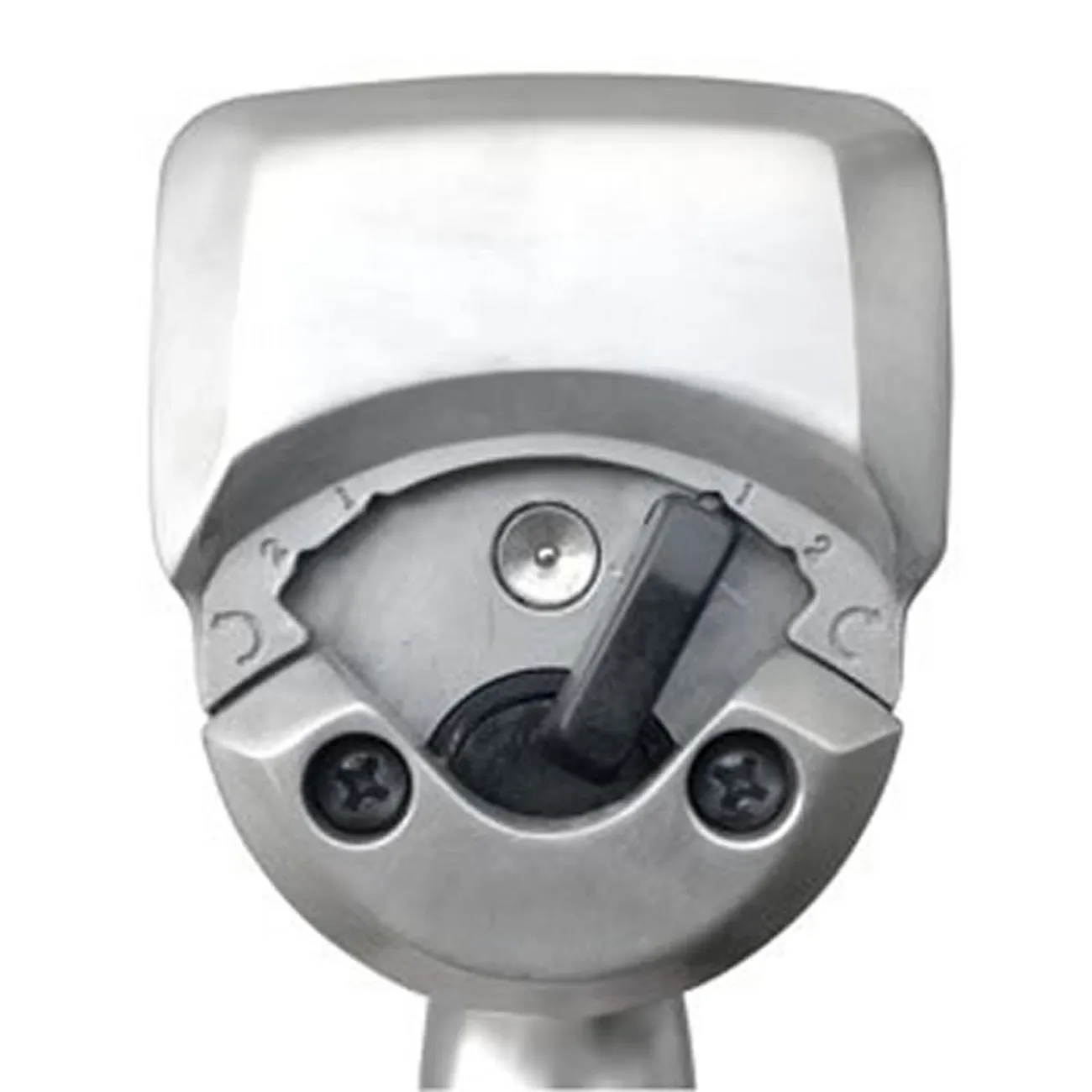

If you work in vehicle repair, this impact wrench will see you through every job that walks in the door. The 236 ½” is strong and reliable, with a power regulator that allows for increased control from start to finish.

Features

Reliability:

  • The 236 ½” Impact Wrench will put in overtime on your toughest projects. Each part is tested for quality, so you can be sure it’ll deliver a high-performance output every time.

Power:

  • This impact wrench comes with a finely tuned vane motor that pairs smoothly with the jumbo hammer impact mechanism on the 236 ½” impact wrench for maximum power.

Warranty:

  • A one-year warranty comes standard on all 236 ½” impact wrenches

Other Features:

  • Soft-mount system reduces vibration for extended motor and switch life
  • Handle-vented exhaust directs air away from the operator
  • Silenced exhaust reduces tool noise while using this pneumatic impact wrench
  • Feather-touch trigger provides maximum speed control
  • Ergonomically designed small-handle grip helps reduce operator fatigue during extended use of this pneumatic air wrench
  • Optimized for the vehicle repair industry and heavy trucks
  • Non-biased motor delivers 610 Nm of maximum torque in both forward and reverse



Model Specifications

Model Configuration Actuation Drive Size Drive Type Forward Torque (Nm) Max Reverse Torque (ft-lbs) Max Reverse Torque (Nm) Blows per minute Free Speed (RPM) Impacting Sound Level dB(A) — ISO15744 (pressure/power) Free Speed Sound Level dB(A) — CAGI/ANSI S12.41 (pressure/power) Vibration Level m/s² (K) Weight (lbs) Weight (kg) Width (in) Width (mm) Height (in) Height (mm) Length (in) Length (mm) Air Inlet Min Hose Size (in) Min Hose Size (mm) Air Consumption @ Load (cfm) Air Consumption @ Load (L/min) Average Air Consumption (cfm) Average Air Consumption (L/min) PSI Bar
236 Pistol Trigger 1/2 in. Square, Hog-Ring 271 450 610 1200 7400 N/A 90.3 / 101.3 12 (1) 5.3 2.4 2.6 67 7.2 183 7 179 1/4 in. 3/8 10 24 680 4.3 122 90 6.2
