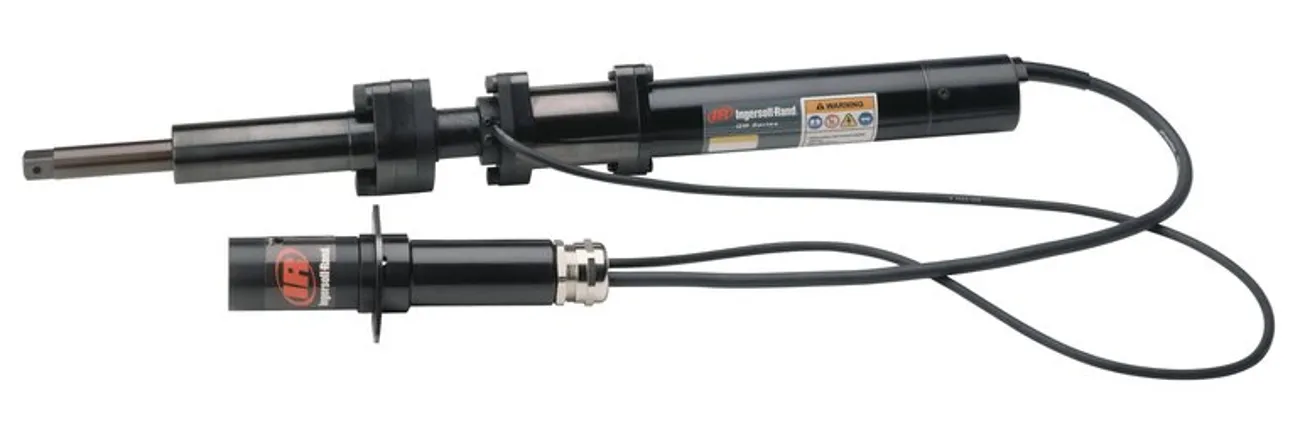

QM5 Series Fixtured Spindles

NUTRUNNER, Power Tools

QM5 Series Fixtured Spindles

QM5 Tools are highly durable designed. They come with flexible mounting options and are designed to work for Single or Multi Spindle Applications. QM5 Torque Range 3.5-90Nm.

Features

Accuracy:

The closed loop transducerized control provides high accuracy and traceability for advanced torque control strategies.

Flexibility:

With flexible mounting options, an external electronics pod, and high durability cables and connections, you’ll be able to integrate your spindles with ease and security.

Reliability:

With a heavy-duty gear train and brushless DC motor, the QM3 series is as dependable as it is efficient. And with preventative maintenance alarms, you’ll always know when your tool is in need of a tune up.

Categories: NUTRUNNER, Power Tools Brand: Ingersoll Rand

Description

Model Specifications

Model	Recommended Torque Range (Nm)	Recommended Torque Range (ft-lbs)	Max Torque (Nm)	Free Speed (rpm)	Spindle Length (mm)	Float (mm)	Length (mm)	Weight (kg)	C-C (mm)	Bolt Size	Square Drive (in)
QM5SS035H22S06	7 – 28	5.2 – 20.6	35	590	300	50	673	4.2	44	M6-M8	3/8
QM5SS035H22S08	7 – 28	5.2 – 20.6	35	590	300	50	673	4.2	44	M6-M8	1/2
QM5SS035H22S06	7 – 28	5.2 – 20.6	35	590	150	50	523	3.9	44	M6-M8	3/8
QM5SS035H22S08	7 – 28	5.2 – 20.6	35	590	150	50	523	3.9	44	M6-M8	1/2
QM5SS035H22S06	7 – 28	5.2 – 20.6	35	590	225	50	598	4	44	M6-M8	3/8
QM5SS035H22S08	7 – 28	5.2 – 20.6	35	590	225	50	598	4	44	M6-M8	1/2
QM5SS055H22S06	11 – 44	8.1 – 32.4	55	507	300	50	523	4.2	44	M6-M8	3/8
QM5SS055H22S08	11 – 44	8.1 – 32.4	55	507	300	50	523	4.2	44	M6-M8	1/2
QM5SS055H62S06	11 – 44	8.1 – 32.4	55	507	150	50	523	3.9	44	M6-M8	3/8
QM5SS055H62S08	11 – 44	8.1 – 32.4	55	507	150	50	523	3.9	44	M6-M8	1/2
QM5SS055H92S06	11 – 44	8.1 – 32.4	55	507	225	50	523	4	44	M6-M8	3/8
QM5SS055H92S08	11 – 44	8.1 – 32.4	55	507	225	50	523	4	44	M6-M8	1/2
QM5SS090H22S08	18 -72	13.3 – 53.1	90	280	300	50	673	4.2	44	M8-M10	1/2
QM5SS090H62S08	18 -72	13.3 – 53.1	90	280	150	50	523	3.9	44	M8-M10	1/2
QM5SS090H92S08	18 -72	13.3 – 53.1	90	280	225	50	598	4	44	M8-M10	1/2
