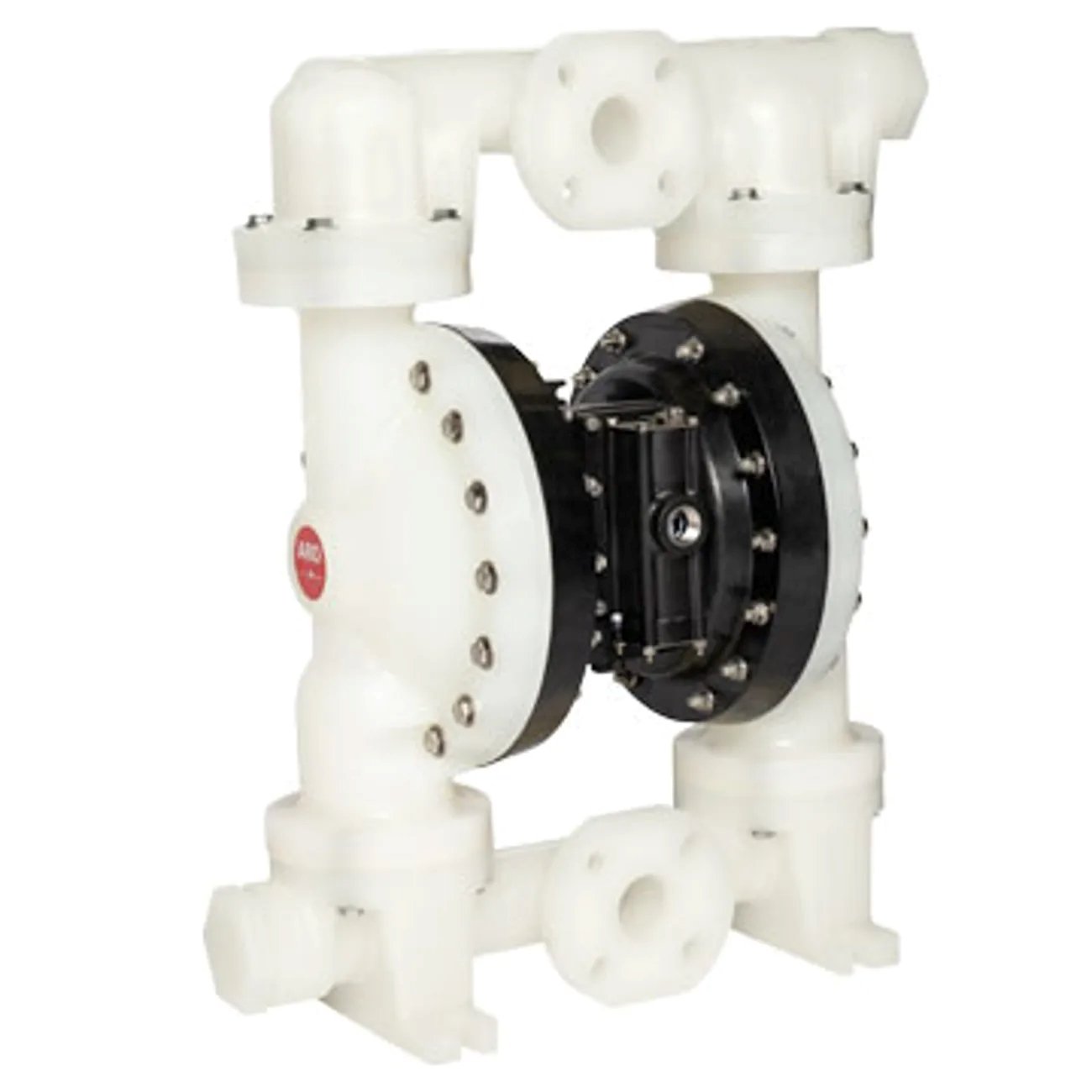

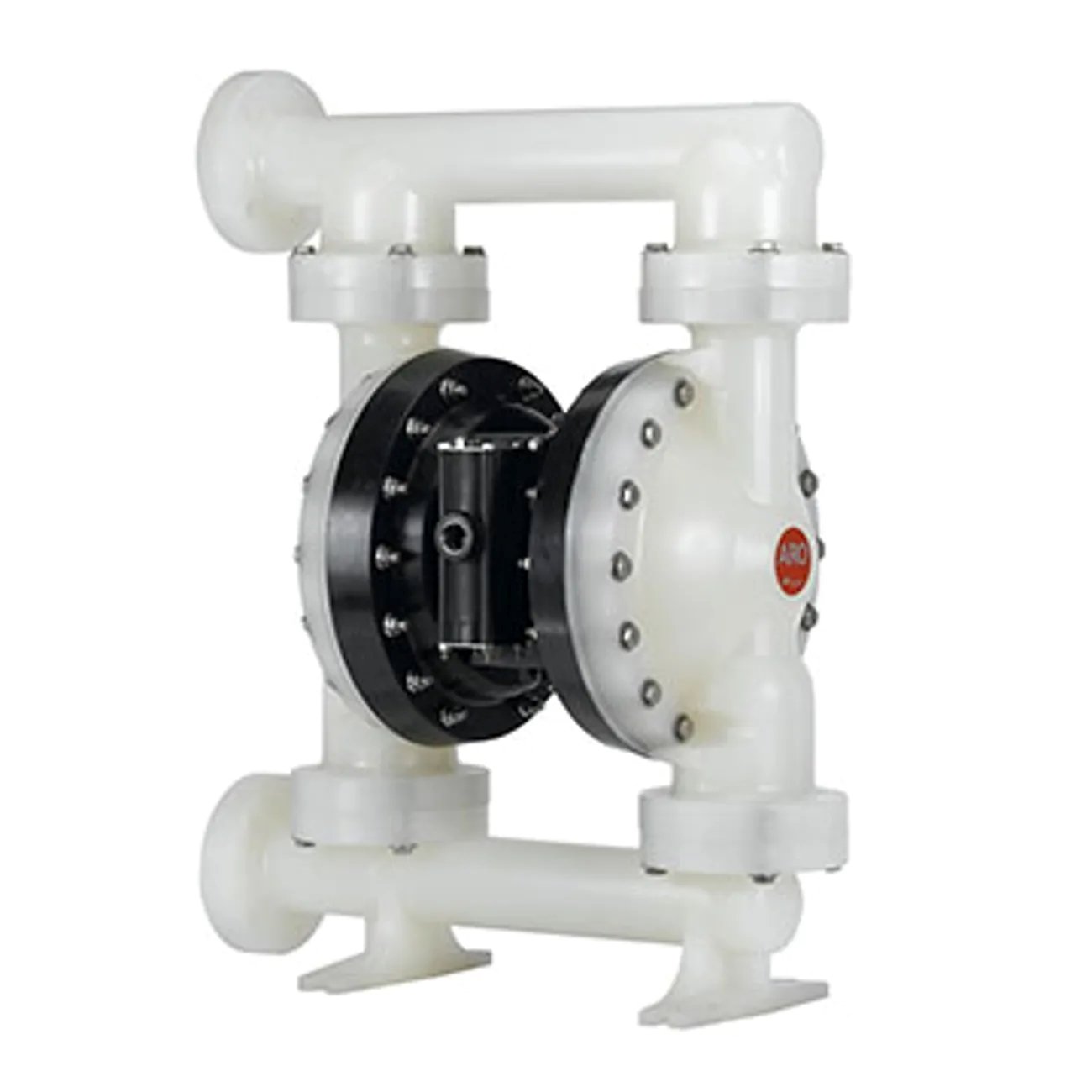

2” EXP Non-Metallic Air Operated Diaphragm Pump PX20P-XXX-XXX

PX20P-XXX-XXX

Maximum Flow: 184 GPM (696 L/min)

Maximum Discharge Pressure: 120 PSI (8,3 bar)

Fluid Ports Inlet/Outlet: 2” ANSI/DIN Hybrid Flange (Side or Center Ports)

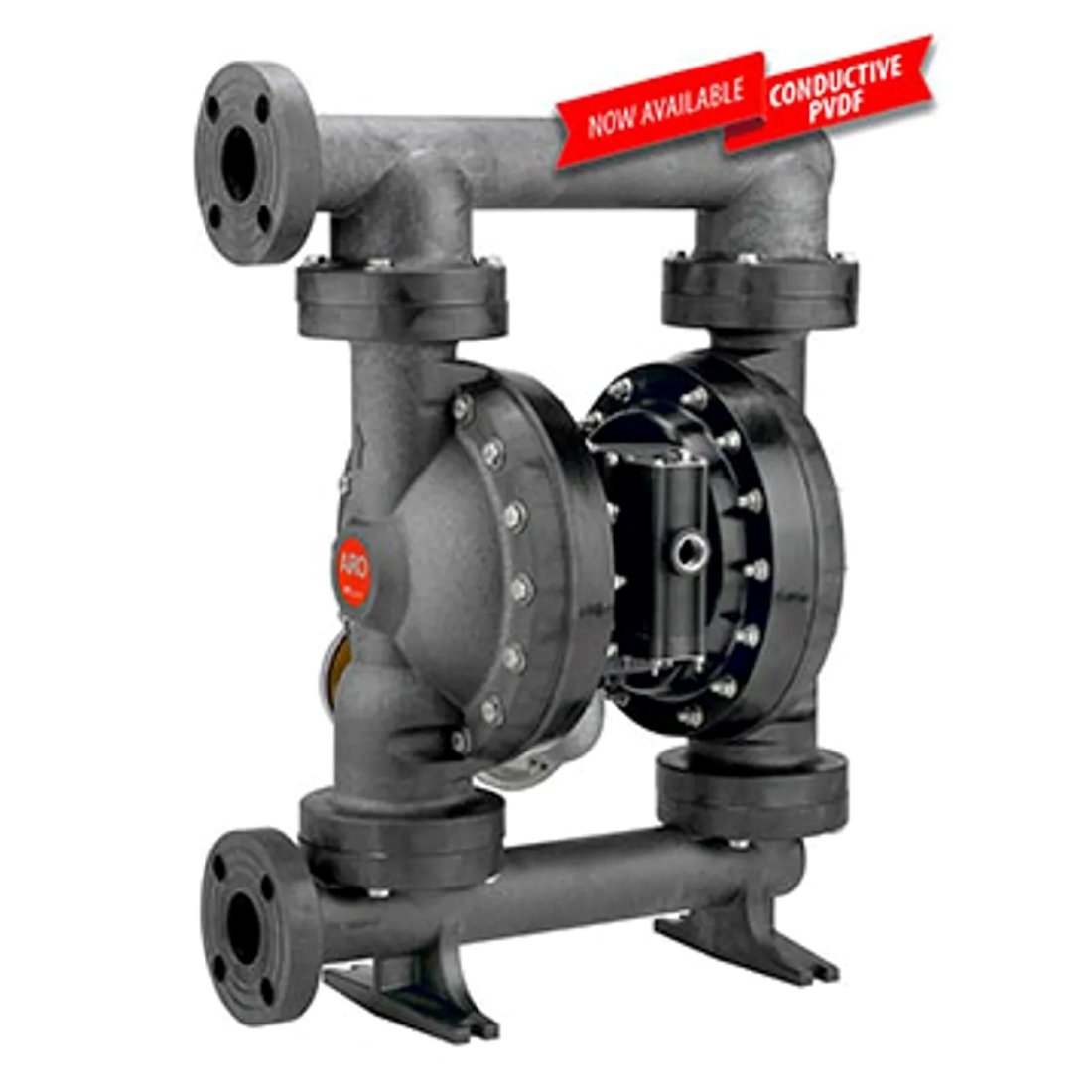

Material of Construction: Polypropylene, PVDF, Conductive Polypropylene, Conductive PVDF

Maximum Solids: 1/4 inches (6,4 mm)

Maximum Dry Suction Lift: 19.5 feet (5,9 meters)

Overview

ARO EXP 2” non-metallic pumps achieve flow rates of up to 184 GPM (696.4 LPM) and offer a wide array of material and porting configurations. 2” non-metallic pumps are often used for transfer, filling, recirculation and batching in Chemical, Industrial and Water/Wastewater treatment markets.

Available with Long-life PTFE diaphragms.

1/4'' Non-Metallic Diaphragm Pump Upgrade

Features

Up to 4 times the life of traditional diaphragm pumps due to the EXP’s convoluted diaphragm design

Efficiency – Simul-Shift™ valve provides ultra-positive, reliable shift signal

Reliability – ARO’s patented ‘Unbalanced’ air valve ensures no-stall operation

Versatility – Broad range in materials of construction for optimum fluid compatibility

Environmentally Sound – Bolted construction for leak-free fluid handling and ribless fluid caps to eliminate cracking

Serviceability – Easier service through modular design

Accessories

66312 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
67237 Diaphragm Failure Detection Kit
67350 Cycle Counter Kit
67323 Continuous-Duty Muffler
67341-E20N Flange Connection Kit
637369 Air Section Service Kit
637373-XX Fluid Section Service Kit

Pump Casing Materials

PVDF (Kynar)
Polypropylene
Conductive PVDF
Conductive Polypropylene

Diaphragm Materials

LongLife PTFE (not available on Conductive PVDF)
Nitrile
Santoprene
Medical Grade Santoprene
PTFE w/ Santoprene backer
Viton
Hytrel

Description

Specifications

Ratio: 1:1

Maximum Flow: 184 GPM (696 lpm)

Displacement per cycle: 1.4 gallons (5.3 liters)

Air Inlet (Female): 3/4 – 14 N.P.T.

Fluid Inlet/Outlet: 2” A.N.S.I./DIN Hybrid Flange (Side or Center Ports)

Max. operating pressure: 120 PSI (8.3 bar)

Suspended solids maximum diameter: 1/4” (6.4 mm)

Weight:
Polypropylene, Side Ported 85.3 lbs (38.7 kg)
Polypropylene, Center Ported 89 lbs (40.4 kg)
PVDF, Center Ported 116.8 lbs (53 kg)
PVDF, Side Ported 110.9 lbs (50.3 kg)

Maximum dry suction lift: 19.5 ft (5.9 m)

Sound Level: 70 PSI 60 Cycles/Min 85.0 db(A)

Muffler Included: 93139
