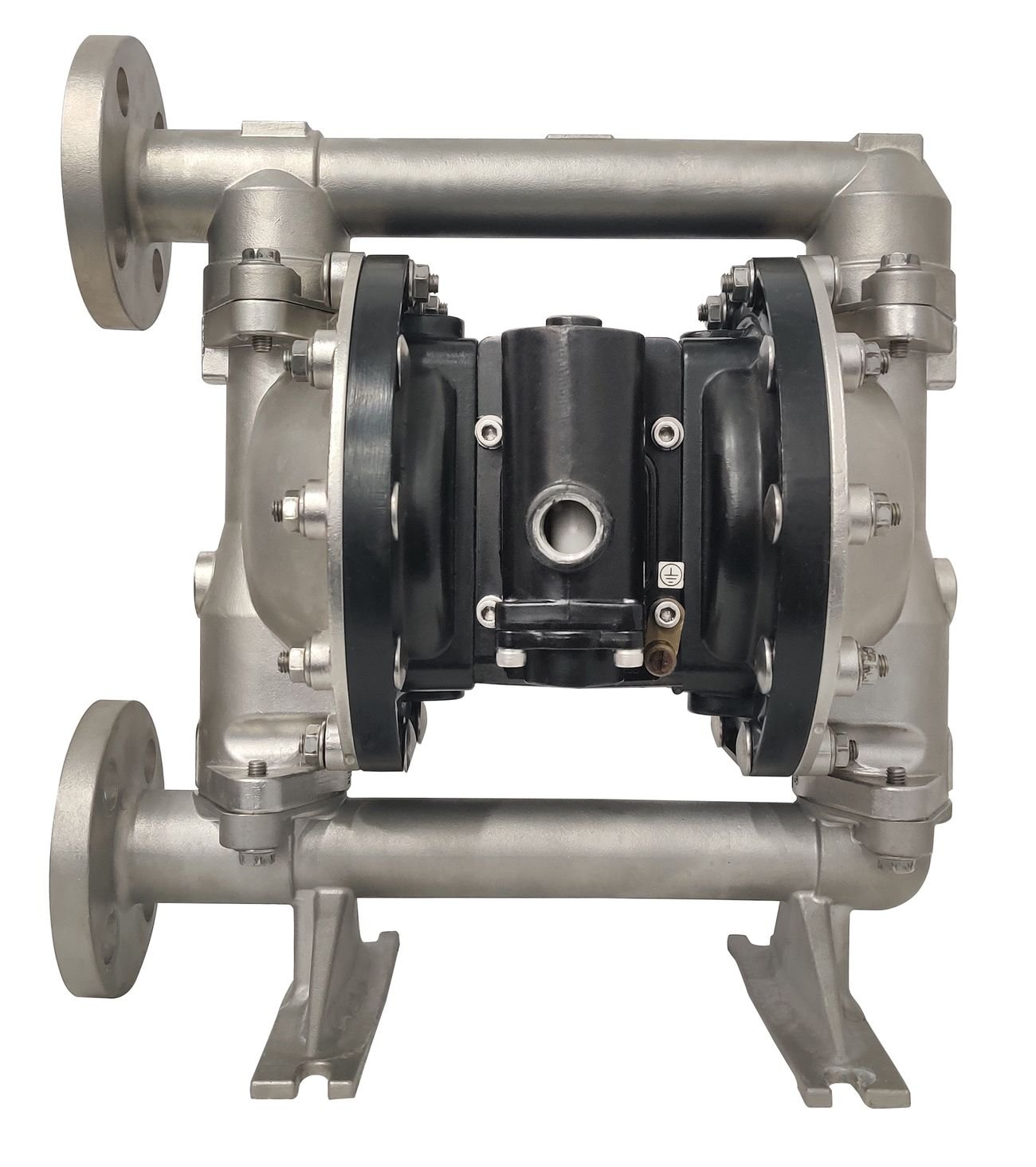

1'' EXP Metallic Air Operated Diaphragm Pump PX10X-XXX-XXX
1'' EXP Metallic Air Operated Diaphragm Pump PX10X-XXX-XXX - Image 2
, ,

1” EXP Metallic Air Operated Diaphragm Pump PX10X-XXX-XXX

1” EXP Metallic Air Operated Diaphragm Pump



PX10X-XXX-XXX



Maximum Flow gpm (lpm): 52 (197)

Maximum Discharge Pressure psi (bar): 120 (8.3)

Fluid Ports Inlet/Outlet (bsp): 1-11-1/2” NPTRp1(1-11 BSP) (Side or Center)

Material of Construction: Aluminum, Cast Iron, Stainless Steel, Hastelloy®

Maximum Solids in (mm): 1/8 (3.32)

Maximum Dry Suction Lift ft (m): 19 (5.7)

Overview

ARO EXP 1” metallic diaphragm pumps achieve flow rates of up to 52.2 GPM (197.6 LPM) and offer a wide array of material and porting configurations. These pumps are often used for transfer, filling, recirculation and batching in Ceramic, Industrial, Chemical and Petrochemical markets.

Available with  Long-life PTFE diaphragms.

Features

Efficiency – Simul-Shift™ valve provides ultra-positive, reliable shift signal

Reliability – ARO’s patented ‘Unbalanced’ air valve ensures no-stall operation

Versatility – Broad range in materials of construction for optimum fluid compatibility

Environmentally Sound – Bolted construction for leak-free fluid handling and ribless fluid caps to eliminate cracking

Serviceability – Easier service through modular design

Accessories

  • 66073-2 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
  • 67237 Diaphragm Failure Detection (DFD)
  • 67350 Cycle Counter Kit
  • 637397 Air Section Service Kit
  • 637401-XX Fluid Section Service Kit

Pump Casing Materials

  • Aluminum
  • Cast Iron
  • Stainless Steel
  • Hastelloy-C

Diaphragm Materials

  • Long Life PTFE
  • Santoprene
  • Hytrel
  • Nitrile
  • Medical Grade Santoprene
  • Garlock ONE-UP®/EPDM backer
  • Garlock ONE-UP®/Neoprene backer
  • Garlock ONE-UP®/Viton backer
  • PTFE w/ Santoprene backer
  • Viton
Categories: , , Brand:

Specifications

Ratio: 1:1

Maximum GPM (LPM):  52 (197)

Displacement per cycle Gallons (Liters): 0.232 (0.88)

Air Inlet (Female):  1/4 – 18 N.P.T.

Fluid Inlet/Outlet: 1 – 11-1/2 N.P.T.F.-1, Rp1(1-11 BSP)

Max. operating pressure psi (bar): 120 (8.3)

Suspended solids max. dia. in. (mm): 1/8” (3.3)

Weight lbs (kg):
PX10R-XAX-XXX 20.7 (9.4)
PX10R-XCX-XXX 35.2 (16.0)
PX10R-XHX-XXX 39.6 (18.0)
PX10R-ASX-XXX-AXXX 38.2 lbs (17.3 kg)
PX10R-BSX-XXX-AXXX 38.2 lbs (17.3 kg)
PX10R-FSX-XXX-AXXX 43.9 lbs (19.9 kg)

Note:
Add 4.65 lbs (2.11 kg) for aluminum air motor
Add 11.09lbs (5.03 kg) for stainless steel air motor

Maximum dry suction lift ft(m): 19 (5.7)

Sound Level: 70 PSI     60 Cycles/Min 80.6 db(A)

1'' EXP Metallic Air Operated Diaphragm Pump Chart
