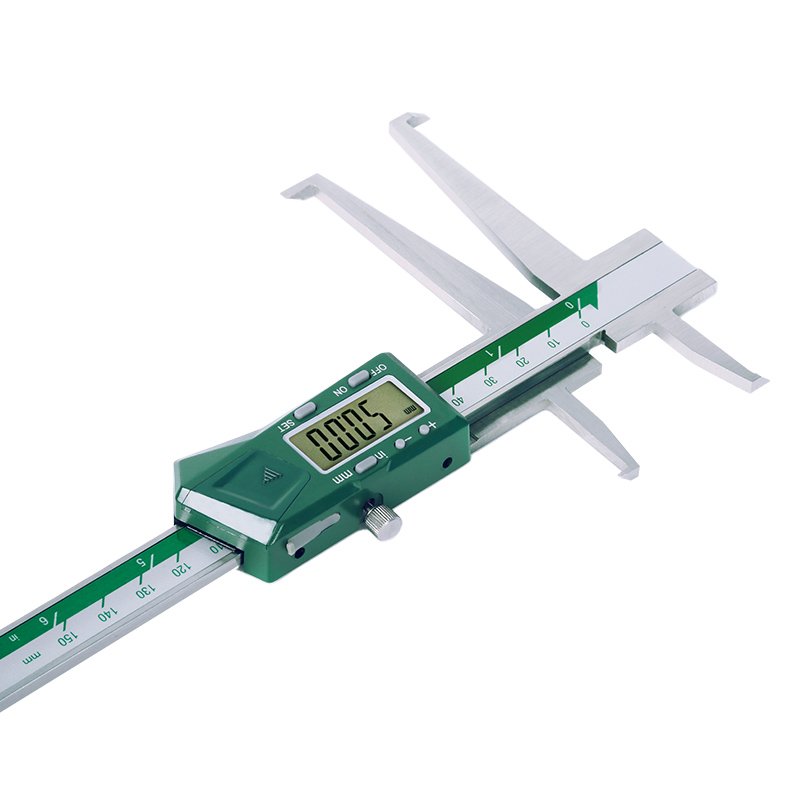

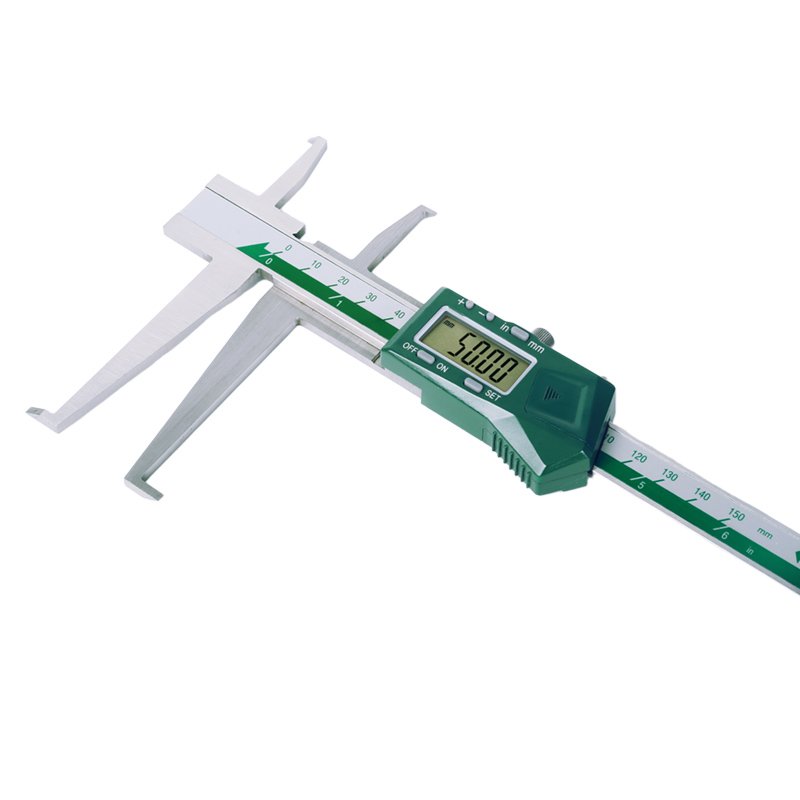

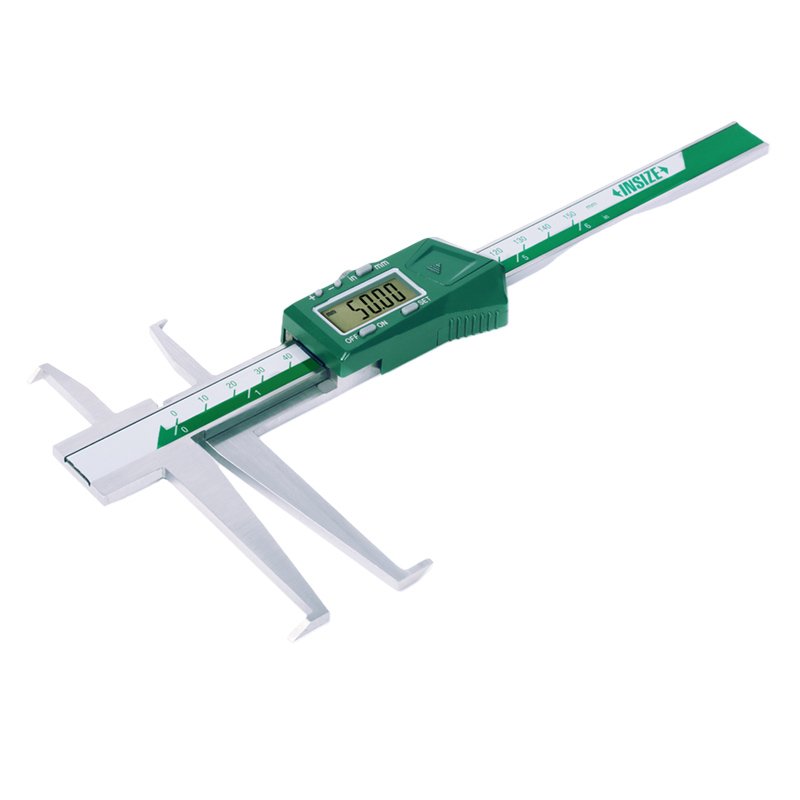

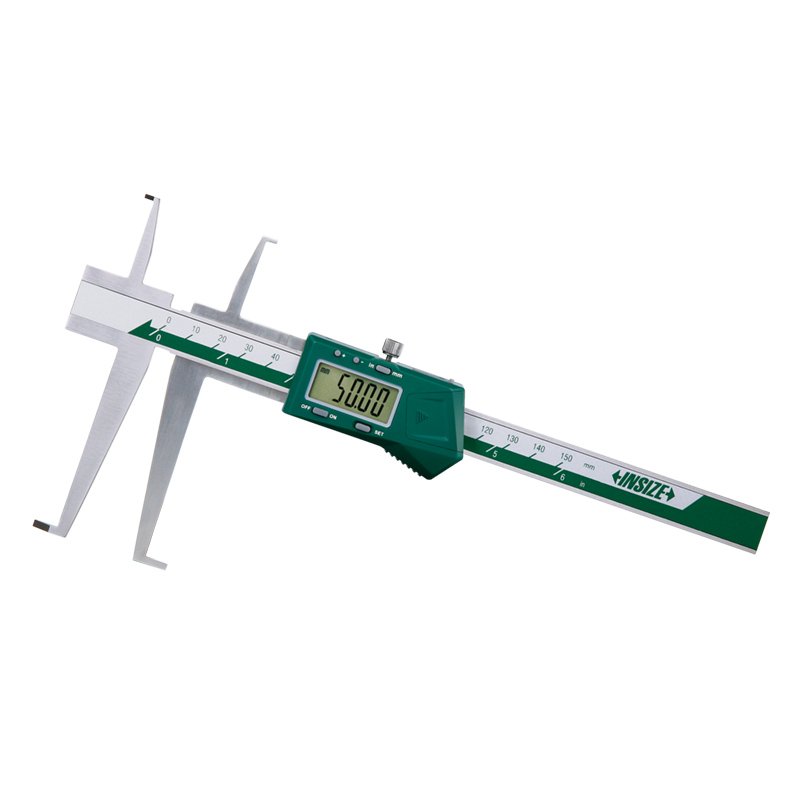

Digital Inside Groove Calipers Code: 1176

Measure diameter of grooves inside bores
Buttons type A: on/off, set, mm/inch, preset (+, -), type B: on/off, zero, mm/inch, ABS/REL, hold
Battery CR2032
Made of stainless steel
Optional accessory: depth stop (code 6143)

Specification

Code	Type	Range of upper jaw	Range of lower jaw	Accuracy	Resolution	Data output
1176-150	A	9-150mm/0.35-6″	17-150mm/0.70-6″	±0.04mm	0.01mm/0.0005″	with data interface
1176-200	A	9-200mm/0.35-8″	17-200mm/0.70-8″	±0.05mm	0.01mm/0.0005″	with data interface
1176-150WL	A	9-150mm/0.35-6″	17-150mm/0.70-6″	±0.04mm	0.01mm/0.0005″	built-in wireless
1176-200WL	A	9-200mm/0.35-8″	17-200mm/0.70-8″	±0.05mm	0.01mm/0.0005″	built-in wireless
1176-150P	B	9-150mm/0.35-6″	17-150mm/0.70-6″	±0.04mm	0.01mm/0.0005″	without data interface
