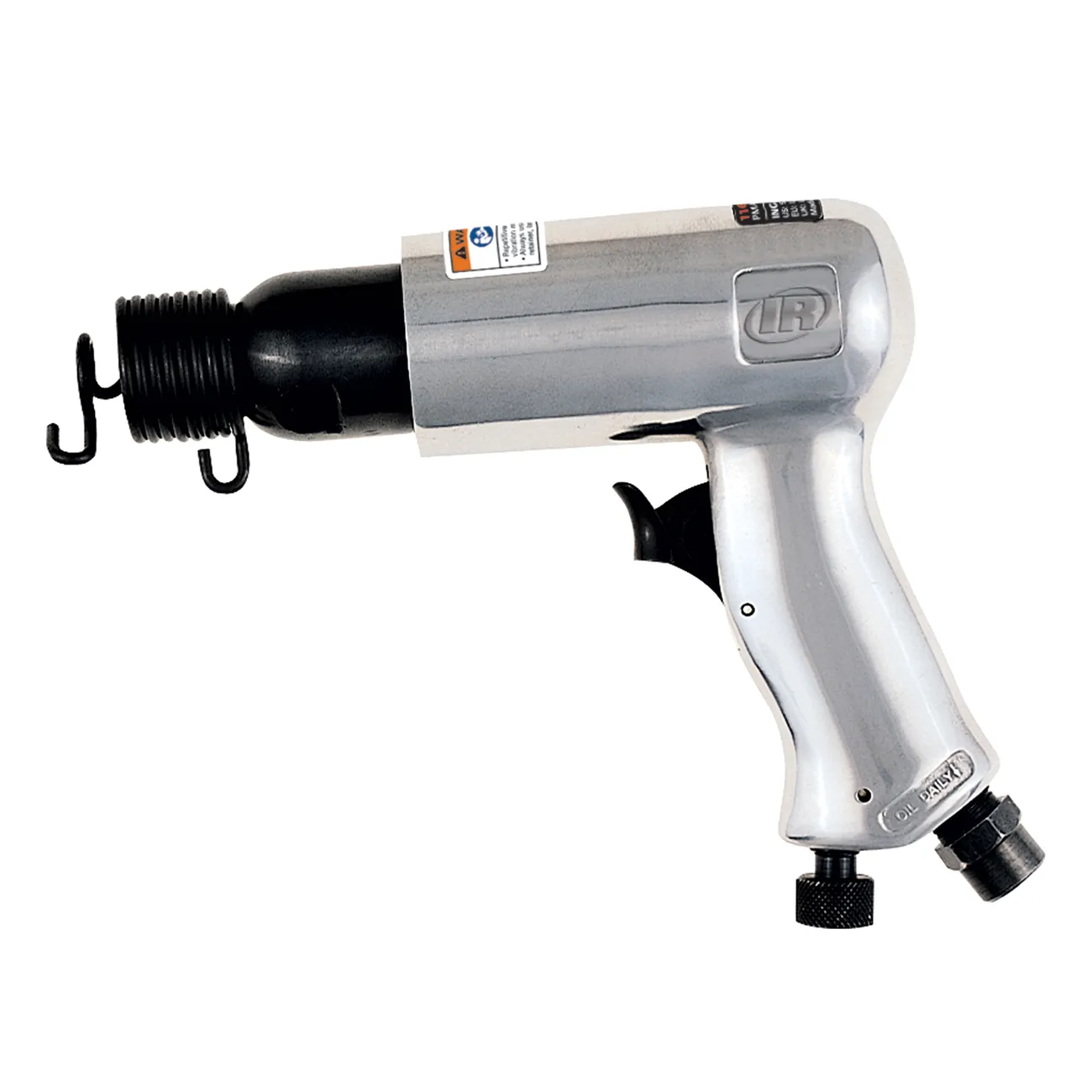

116 Standard Air Hammer

116-EU / 116H-EU

The 116 standard air hammer is ideal for fast cutting action, and excels in medium exhaust systems, panel cutting, and general repair work.

Features

Reliable:

  • This hammer’s alloyed steel barrel and heat-treated piston prolong your tool’s life and make sure it delivers the same quality output every time.

Lightweight:

  • Built for user comfort, this tool is lightweight and easy to use, so you never have to overexert yourself when working a job.

Power:

  • With a built-in power regulator you have full control over the speed and power output of your hammer, up to 3,500 blows per minute.



Model Specifications

Model

Shank Opening

Blows per Minute

Bore Diameter (in)

Bore Diameter (mm)

Stroke Length (in)

Stroke Length (mm)

Tool Weight (lbs)

Tool Weight (kg)

Overall Length (in)

Overall Length (mm)

Average Air Consumption (cfm)

Average Air Consumption (L/min)

Air Consumption @ Load (cfm)

Air Consumption @ Load (L/min)

Sound Pressure/Power (dBA)

Vibration m/s2 (uncertainty K)

Air Inlet NPTF (in)

Min. Hose Size (in)

Min. Hose Size (mm)

116-EU

Round

3500

0.69

17.5

2.63

67

3.4

1.54

7.8

198

3

85

15

425

104.4 / 117.4

14.8 (uncertainty: 2.2)

1/4

3/8

10
