QM3 Series Fixtured Spindles
,

QM3 Series Fixtured Spindles

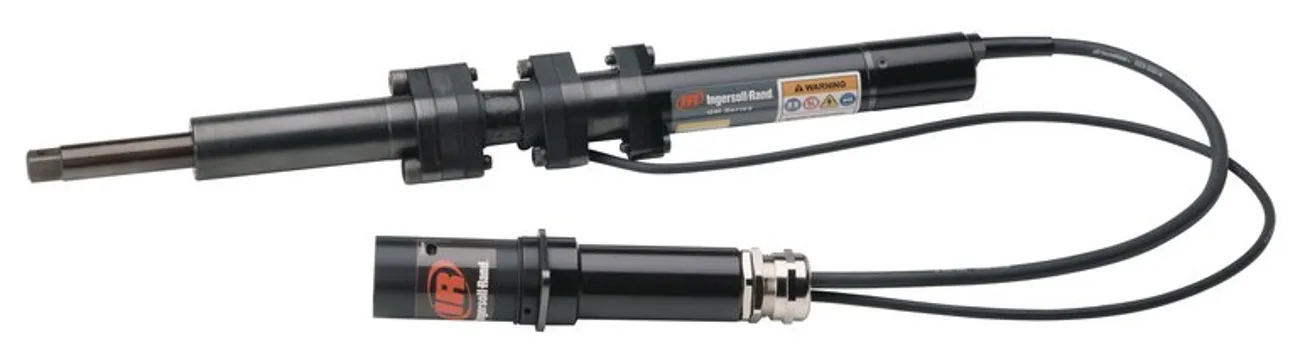

QM3 Tools are highly durable designed. They come with flexible mounting options and are designed to work for Single or Multi Spindle Applications. QM3 Torque Range 0.8-20Nm.

Features

Accuracy:

  • The closed loop transducerized control provides high accuracy and traceability for advanced torque control strategies.

Flexibility:

  • With flexible mounting options, an external electronics pod, and high durability cables and connections, you’ll be able to integrate your spindles with ease and security.

Reliability:

  • With a heavy duty gear train and brushless DC motor, the QM3 series is as dependable as it is efficient. And with preventative maintenance alarms, you’ll always know when your tool is in need of a tune up.



Categories: , Brand:

Model Specifications

Model

Recommended Torque Range (Nm)

Recommended Torque Range (ft-lbs)

Max Torque (Nm)

Free Speed (rpm)

Spindle Length (mm)

Float (mm)

Length (mm)

Weight (kg)

C-C (mm)

Bolt Size

Square Drive (in)

QM3SS008H22S06

1.6 – 6.4

1.18 – 4.72

8

1382

300

50

599

2.7

34

M4 – M5

3/8

QM3SS008H22S08

1.6 – 6.4

1.18 – 4.72

8

1382

300

50

599

2.7

34

M4 – M5

1/2

QM3SS008H62S06

1.6 – 6.4

1.18 – 4.72

8

1382

150

50

449

2.4

34

M4 – M5

3/8

QM3SS008H62S08

1.6 – 6.4

1.18 – 4.72

8

1382

150

50

449

2.4

34

M4 – M5

1/2

QM3SS008H92S06

1.6 – 6.4

1.18 – 4.72

8

1382

225

50

524

2.5

34

M4 – M5

3/8

QM3SS008H92S08

1.6 – 6.4

1.18 – 4.72

8

1382

225

50

524

2.5

34

M4 – M5

1/2

QM3SS012H22S06

2.4 – 9.6

1.77 – 7.1

12

927

300

50

599

2.7

34

M4 – M6

3/8

QM3SS012H22S08

2.4 – 9.6

1.77 – 7.1

12

927

300

50

599

2.7

34

M4 – M6

1/2

QM3SS012H62S06

2.4 – 9.6

1.77 – 7.1

12

927

150

50

449

2.4

34

M4 – M6

3/8

QM3SS012H62S08

2.4 – 9.6

1.77 – 7.1

12

927

150

50

449

2.4

34

M4 – M6

1/2

QM3SS012H92S06

2.4 – 9.6

1.77 – 7.1

12

927

225

50

524

2.5

34

M4 – M6

3/8

QM3SS012H92S08

2.4 – 9.6

1.77 – 7.1

12

927

225

50

524

2.5

34

M4 – M6

1/2

QM3SS016H22S06

3.2 – 12.8

2.36 – 9.44

16

686

300

50

599

2.7

34

M4 – M6

3/8

QM3SS016H22S08

3.2 – 12.8

2.36 – 9.44

16

686

300

50

599

2.7

34

M4 – M6

1/2

QM3SS016H62S06

3.2 – 12.8

2.36 – 9.44

16

686

150

50

449

2.4

34

M4 – M6

3/8

QM3SS016H62S08

3.2 – 12.8

2.36 – 9.44

16

686

150

50

449

2.4

34

M4 – M6

1/2

QM3SS016H92S06

3.2 – 12.8

2.36 – 9.44

16

686

225

50

524

2.5

34

M4 – M6

3/8

QM3SS016H92S08

3.2 – 12.8

2.36 – 9.44

16

686

225

50

524

2.5

34

M4 – M6

1/2

QM3SS020H22S06

4 -16

2.95 – 11.8

20

545

300

50

599

2.7

34

M5 – M6

3/8

QM3SS020H22S08

4 -16

2.95 – 11.8

20

545

300

50

599

2.7

34

M5 – M6

1/2

QM3SS020H22S06

4 -16

2.95 – 11.8

20

545

150

50

449

2.4

34

M5 – M6

3/8

QM3SS020H22S08

4 -16

2.95 – 11.8

20

545

150

50

449

2.4

34

M5 – M6

1/2

QM3SS020H22S06

4 -16

2.95 – 11.8

20

545

225

50

524

2.5

34

M5 – M6

3/8

QM3SS020H22S08

4 -16

2.95 – 11.8

20

545

225

50

524

2.5

34

M5 – M6

1/2
