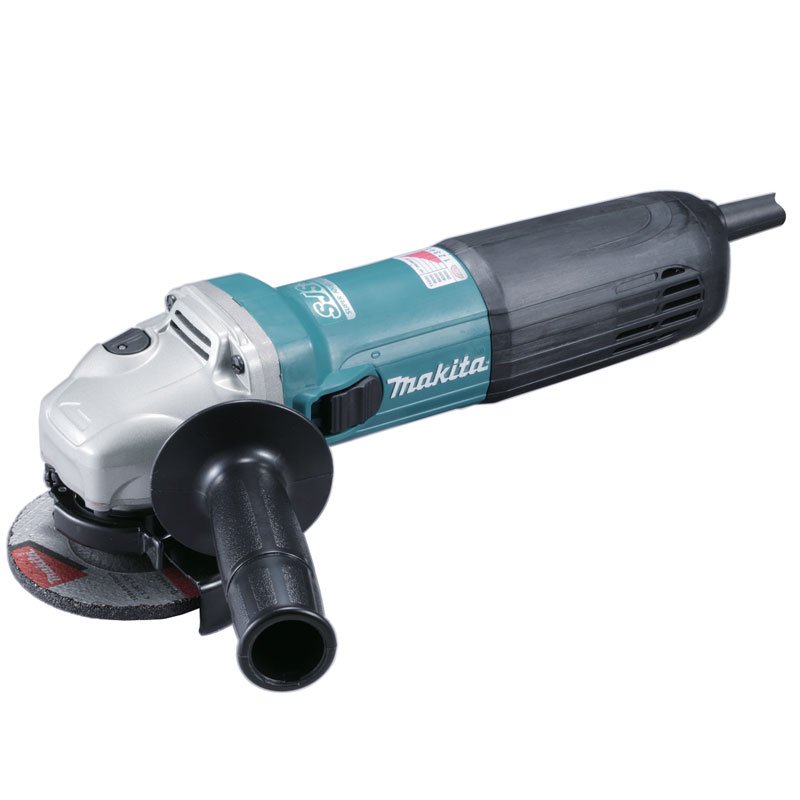

GA4040C Angle Grinder
GA4040C Angle Grinder - Image 2
,

GA4040C Angle Grinder



100 mm (4″) 1,400 W SJS II Variable Speed Angle Grinder, Anti-Restart Function, Soft Start, Slide Switch

  • 100 mm (4″) 1,400 W SJS II Variable Speed Angle Grinder, Anti-Restart Function, Soft Start, Slide Switch
  • SJSII (Super Joint System) provides increased machine durabililty by absorbing the vibration produced by the wheel grinding or cutting material
  • Electronic current limiter for overload protection
  • Anti-restart function minimizes accidental start-up
  • Re-designed durable gear housing for enhanced shaft locking mechanism
  • Ergonomically best possible barrel grip with perfect circumference, size and shape fits the users hand for extra comfortable handling
  • Constant speed control maintains constant speed under load
  • Soft start for smooth start-ups
  • Variable speed (2,800 – 11,000 RPM)
  • Connectable to Makita vacuum cleaner with optional dust collecting wheel guard
  • Push button spindle lock for operator convenience
  • Wheel cover protects operator from accidental scattering of broken wheel or workpiece with minimal wheel cover movement
  • Double insulated
Categories: , Brand:
Carbon Brush : 318

Continuous Rating Input : 1,400W

Wheel diameter : 100 mm (4″)

No load speed : 2,800-11,000 minˉ¹

Cup brush diameter capacity : 75 mm (3″)

Disc paper diameter : 100 mm (4″)

Rubber pad diameter : 76 mm (3″)

Hole diameter : 16 mm (5/8″)

Thread : M10x1.5

Abrasive grinding wheel diameter : 100 mm (4″)

Abrasive cut-off wheel diameter : 100 mm (4″)

Max abrasive wheel thickness : 6.4 mm (1/4″)

Diamond wheel diameter : 105 mm (4″)

Cup diamond wheel usable or not? : mm: YES, inch: YES

Vibration level : Surface grinding w/ Normal side grip: 5 m/s²

                              Surface grinding w/ Anti-vibration side grip: 5 m/s²
                              Disc sanding w/ Normal side grip: 3 m/s²
                              Disc sanding w/ Anti-vibration side grip: 2.5 m/s² or less

Vibration K factor : Surface grinding w/ Normal side grip: 1.5 m/s²
                                    Surface grinding w/ Anti-vibration side grip: 1.5 m/s²
                                    Disc sanding w/ Normal side grip: 1.5 m/s²
                                    Disc sanding w/ Anti-vibration side grip: 1.5 m/s²

Sound pressure level : 86 dB(A)

Sound power level : 97 dB(A)

Noise K factor : 3 dB(A)

Dimensions (L x W x H) : 303 x 117 x 111 mm (11-7/8 x 4-5/8 x 4-3/8″)

Net weight : 2.3 – 2.6 kg (5.1 – 5.7 lbs.)

Power supply cord : 2.5 m (8.2 ft)
