Technical Specifications
Torque
Max working torque fwd :- 1460 Nm
Max torque reverse :- 1950 Nm
Min working torque fwd :- 407 Nm
Torque limited :- No
Air information
Air consumption at load :- 14 l/s
Air inlet thread size (in) :- 3/8
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.5 in
Min hose diam (5 m hose length) :- 13 mm
Noise & vibrations
Sound Power :- 107.8 dB(A)
Sound Pressure :- 96.8 dB(A)
Uncertainty vibration-K :- 1.5 m/s²
Vibration (m/s²) :- 12.97
Speed
Free Speed :- 6500 rpm
Size & Weight
Height (H) :- 220 mm
Length (L) :- 200 mm
Width (W) :- 84 mm
Power weight ratio :- 610 Nm/kg
Weight :- 3.15 kg
Design & Functions
Blow per minute :- 1200
Body :- Composite
Clutch housing :- Aluminum
Clutch lubrication type :- Grease
Handle type :- Pistol
Impact mecanism :- Twin hammer
Output drive size (in) :- 3/4
Output drive type :- Sq
Output retainer type :- Dual
Starting system :- Trigger
Features
- 1,440 ft.lbs (1,950 Nm) of max torque in reverse position for high productivity
- Composite housing and twin hammer impact mechanism for high durability
- Due to its composite motor housing, it is both lightweight and compact, offering improved comfort
- One-hand power adjustment and reverse system – S2S technology – thereby limiting wrist and arm fatigue
Benefits
- Lightweight
- Increased comfort and productivity

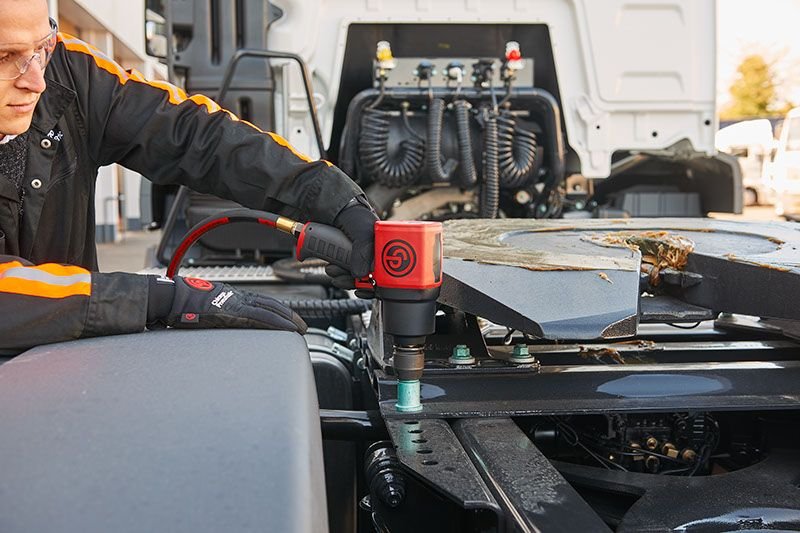

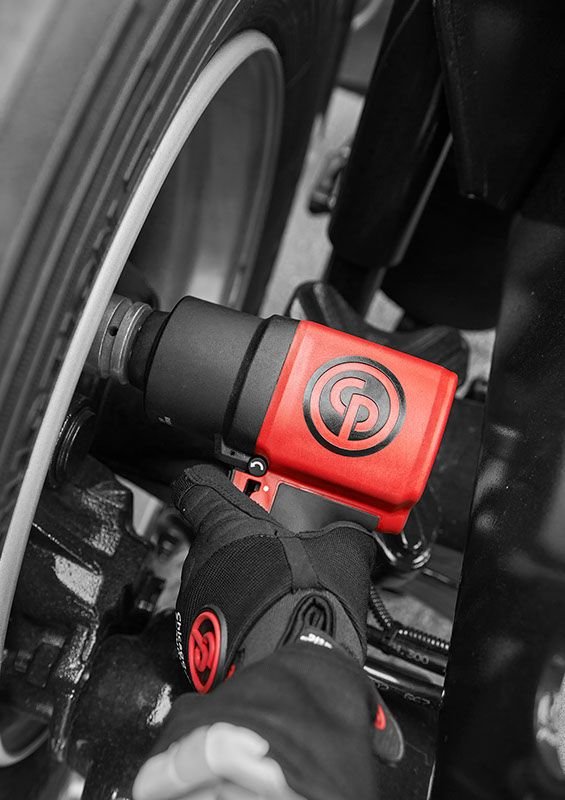

- For use in a wide variety of Vehicle Service & MRO applications
