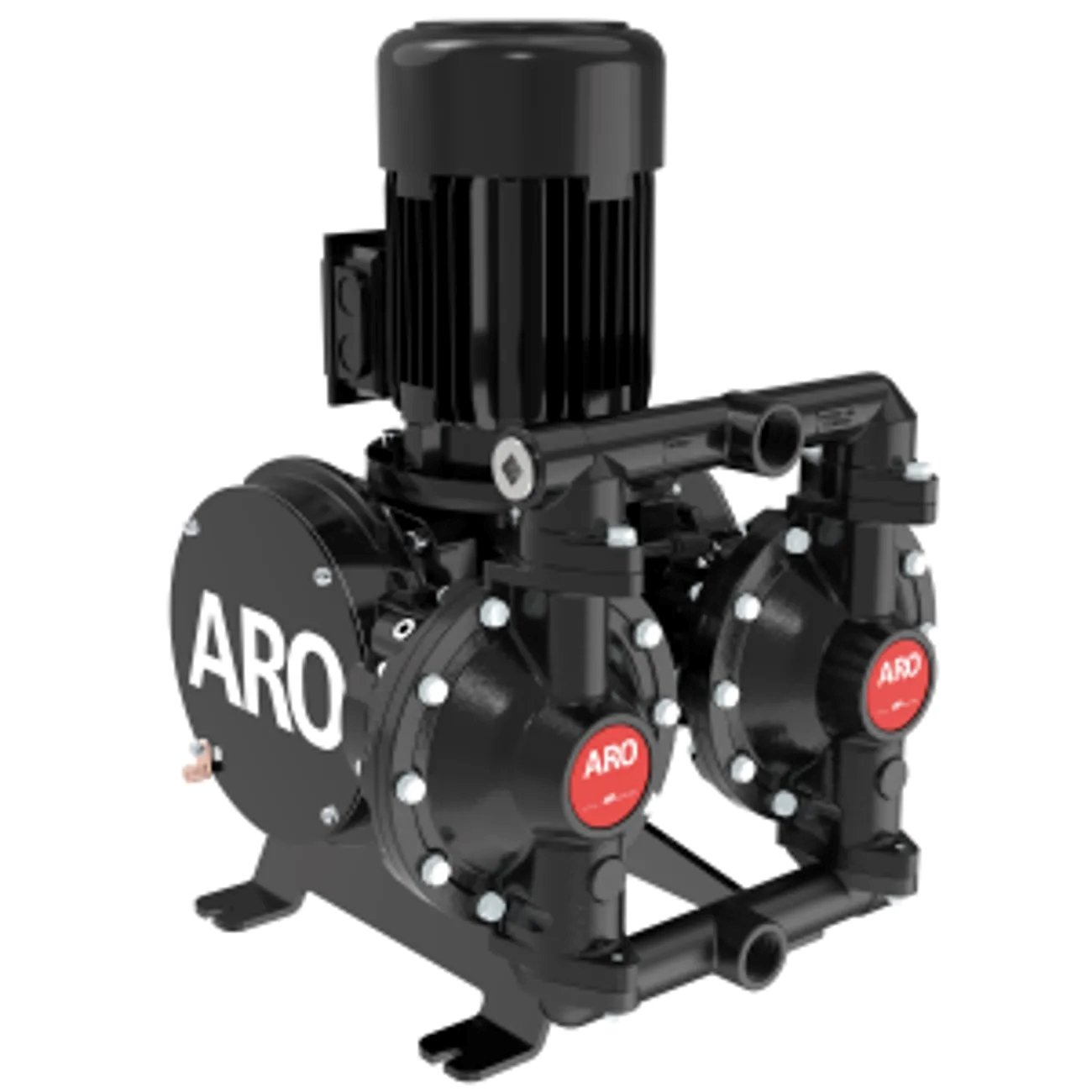

EVO Series™ 210: Electric 1” Double Diaphragm Pump

Available in Aluminum and Stainless Steel

The ARO EVO 210 electric 1″ double diaphragm pump metallic models deliver a reliable and economical solution for general transfer and batching tasks. As part of the EVO Series electric diaphragm pumps, this unit enhances the existing air operated double diaphragm pump range with industry-leading, energy-efficient performance and improved controllability.

Designed for compactness in tight operating spaces, this pump features a robust drive-train that minimizes components, ensuring ease of maintenance and maximizing operational uptime. Additionally, the ARO Protect program supports this model with wear parts kits for planned preventative maintenance and provides an extended warranty, offering users peace of mind and optimizing the total cost of ownership while helping to reduce operating costs.

Features and Benefits

Designed for Reliability

Utilizes proven EVO 300 and EXP foundational modules / parts that are time tested technologies with demonstrated robustness and reliability
Secondary leak containment is standard, preventing pumped media from contacting and damaging the actuator and drive mechanisms in the event of diaphragm leakage
Designed for simplicity – utilizing a standard drive mechanism (fewer parts • improved reliability), resulting in less maintenance time, more uptime, and overall low total cost of ownership
Internally sealed bearings eliminate required maintenance on the actuator compared to competitor mechanisms (such as ball screw components, scotch yoke components, etc.)

Designed for Safety

Ease of maintenance – diaphragms on the same side – more ergonomic/safer, reducing maintenance time
Pump’s overall design adheres to ISO 12100 and is CE compliant
Standard motor options have regional certifications/agency approval markings
Suitable for hazardous environments (ATEX)

Designed for Performance

Higher efficiency than standard Air Operated Diaphragm Pumps (AODP)
Overpressure protection (i.e. deadhead) option available
Electronic leak detection capable with optional electronic sensor

Description

Specifications

Models	Aluminum Stainless Steel
Pump Type	Standard Duty Hazardous Duty
Maximum Flow Rate (flood inlet)	39 GPM (149 l/min)
Displacement Per Cycle	0.17 gallons (0.64 liters)
Fluid Inlet / Outlet Hybrid – internal thread	1 – 11-1/2 NPTF-2 or 1 – 11 BSP
Inlet Pressure	25 PSIG – 50 PSIG (1,7 – 3,4 bar)
Maximum Average Working Pressure	50 PSIG – 90 PSIG (3,4 – 6,2 bar)
Suspended Solids Maximum Diameter	1/8” diameter (3.3 mm)
Wet Suction Lift	28.6 ft (8.7 m)
Dry Suction Lift	13.4 ft (4.31m)
Diaphragm / Ball Check Size	1″ (25.4 mm) equivalent
Weight	Aluminum Pump Head: 135 lbs (61 kg) Stainless Steel Pump Head: 147 lbs (67 kg)
Mounting Dimension	QTY (4) .40 in (10.3 mm) Wide Slot on 10.31 in (262 mm) x 11.45 in (291 mm) Pattern (See Operator’s Manual)
Dimensions	Height: 23.69″ (601.8 mm) w/ 2 HP IEC 90 motor installed Height: 24.69″ (627.03 mm) w/ 2 HP NEMA 140TC motor installed Dimensional information with motor installed is for reference only
