Features
Access:
- Thanks to its small size, this wrench can fit in even the toughest to reach spaces.
Reliability:
- These parts will stand the test of time. The rocking dog impact mechanism is easy to maintain and delivers a powerful burst with low air needs.
Increased Productivity:
- The less time you have to worry about changing parts, the more time you have to work.
- 75 Nm of max reverse torque
- Low weight with only 0.7 kg will reduce operator’s fatigue
- Ergonomic composite housing
- One hand forward/reverse switch for easy operation
Available In the Following Kits:

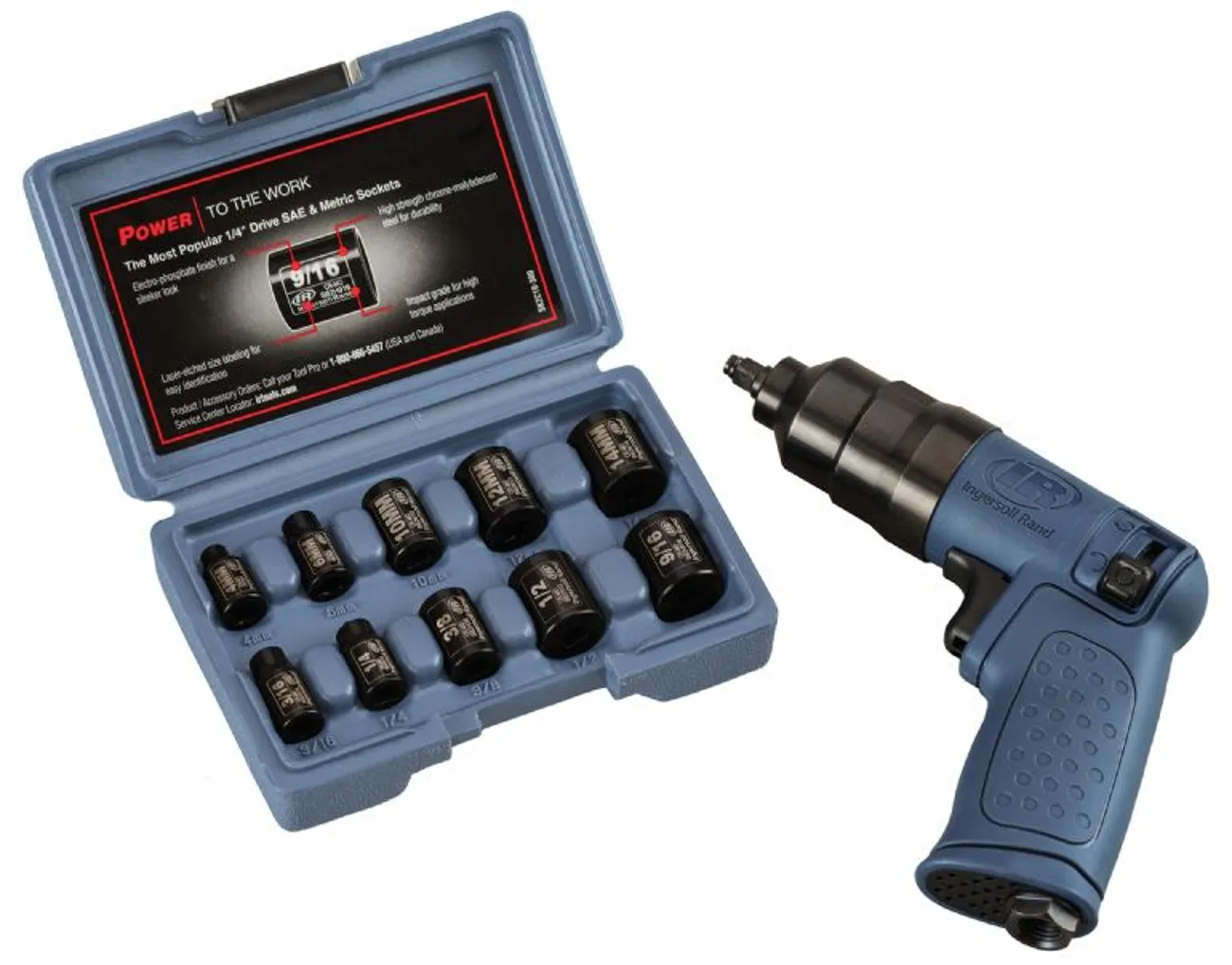

- 2101KA: 2101XPA Mini Impact Wrench and set of 10 Standard Sockets
Model Specifications
|
Model |
Configuration |
Actuation |
Drive Size |
Drive Type |
Max Forward Torque (ft-lbs) |
Max Reverse Torque (ft-lbs) |
Blows per minute |
Max Free Speed (RPM) |
Free Speed Sound Pressure dB(a) |
Vibration Level (m/s2) |
Weight (lbs) |
Exhaust Location |
Air Inlet |
Min Hose Size (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2101XPA |
Pistol Grip |
Trigger |
1/4 in |
Square |
50 |
55 |
3650 |
14500 |
83.5 |
3 |
1.5 |
Bottom |
1/4″ NPT |
3/8 |
|
2101XPA-QC |
Pistol Grip |
Trigger |
1/4 in |
Hex |
50 |
55 |
3650 |
14500 |
83.6 |
3 |
1.54 |
Handle |
1/4″ NPT |
|
|
2102XPA |
Pistol Grip |
Trigger |
3/8 in |
Square |
50 |
55 |
3650 |
14500 |
83.5 |
3 |
1.6 |
Bottom |
1/4″ NPT |
3/8 |
