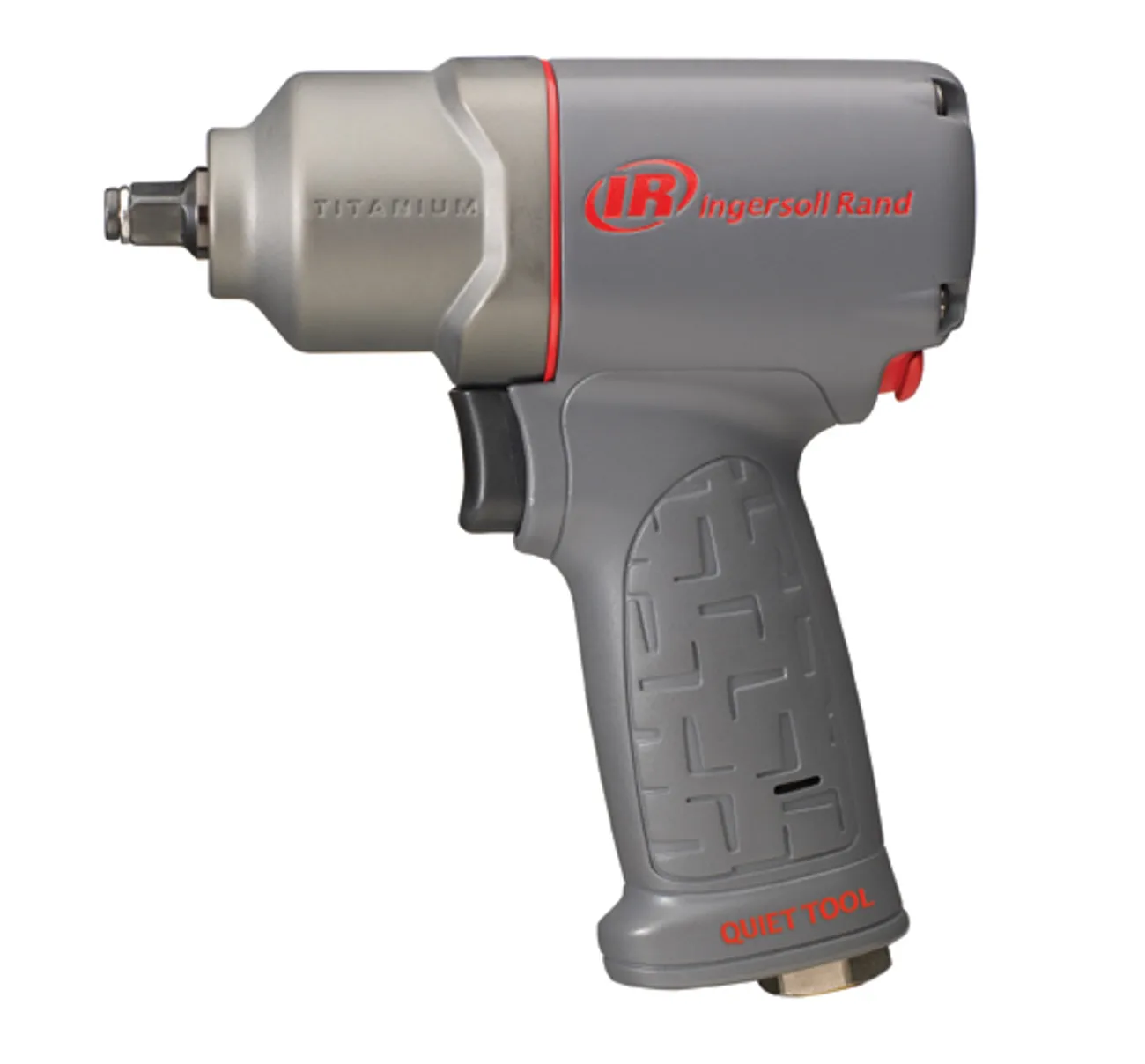

2115QTiMAX Series Impact Wrench

Made with durable materials and featuring a number of different anvil configurations, this 2115QTiMAX Series are a tools you can count on.

Features

Durable:

With a titanium hammer case and composite housing, this wrench can withstand anything, including repeated drops and harsh environments.

Versatile:

Reliable:

This wrench has been tested and is guaranteed to last. It’ll deliver the same level of power every time.

Other Features:

Easier access to grease fitting – for quicker maintenance and less downtime
Enhanced socket retention with hog ring for rapid socket replacement and pin anvil for increased safety
7-vane Motor delivers added power with less weight
Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency
Feather-touch trigger provides maximum control of this air impact wrench
Anodized end plate for enhanced durability
Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction
Patented one-hand forward/reverse control for easy operation
Optimized air flow for maximized performance when using this pneumatic impact wrench

Model	Configuration	Actuation	Drive Size (in)	Drive Type	Max Forward Torque ft-lbs (Nm)	Max Reverse Torque ft-lbs (Nm)	Blows Per Minute	Free Speed (RPM)	Impacting Sound Level dB(A) — ISO15744 (pressure/power)	Free Speed Sound Level dB(A) — CAGI/ANSI S12.41 (pressure/power)	Vibration Level m/s2 (K)	Weight lbs (kg)	Length in (mm)	Air Inlet NPT (in)	Min Hose Size (in)	Air Consumption @ Load cfm (L/min)	Avg Air Consumption cfm (L/min)	PSI	Bar
2115TiMAX	Pistol	Trigger	3/8	Square, Friction Ring	250 (339)	300 (407)	1500	15000	96.6 / 107.6	106.3 / 117.3	7.8 (1.8)	2.48 (1.12)	6 (152)	1/4	3/8	17 (481)	4 (113)	90	6.2
2115PTiMAX	Pistol	Trigger	3/8	Square, Pin	250 (339)	300 (407)	1500	15000	93.2 / 104.2	89.7 / 100.7	7.8 (1.8)	2.48 (1.12)	5.9 (150)	1/4	3/8	17 (481)	4 (113)	90	6.2
2115QTiMAX	Pistol	Trigger	3/8	Square, Friction Ring	250 (339)	300 (407)	1500	15000	93.2 / 104.2	89.7 / 100.7	7.8 (1.8)	2.48 (1.12)	6 (152)	1/4	3/8	17 (481)	4 (113)	90	6.2
2125PTiMAX	Pistol	Trigger	1/2	Square, Pin	277 (375)	332 (450)	1500	15000	93.2 / 104.2	89.7 / 100.7	7.8 (1.8)	2.51 (1.14)	6.1 (155)	1/4	3/8	17 (481)	4 (113)	90	6.2
2125QTiMAX	Pistol	Trigger	1/2	Square, Friction Ring	277 (375)	332 (450)	1500	15000	93.2 / 104.2	89.7 / 100.7	7.8 (1.8)	2.51 (1.14)	6.1 (155)	1/4	3/8	17 (481)	4 (113)	90	6.2
