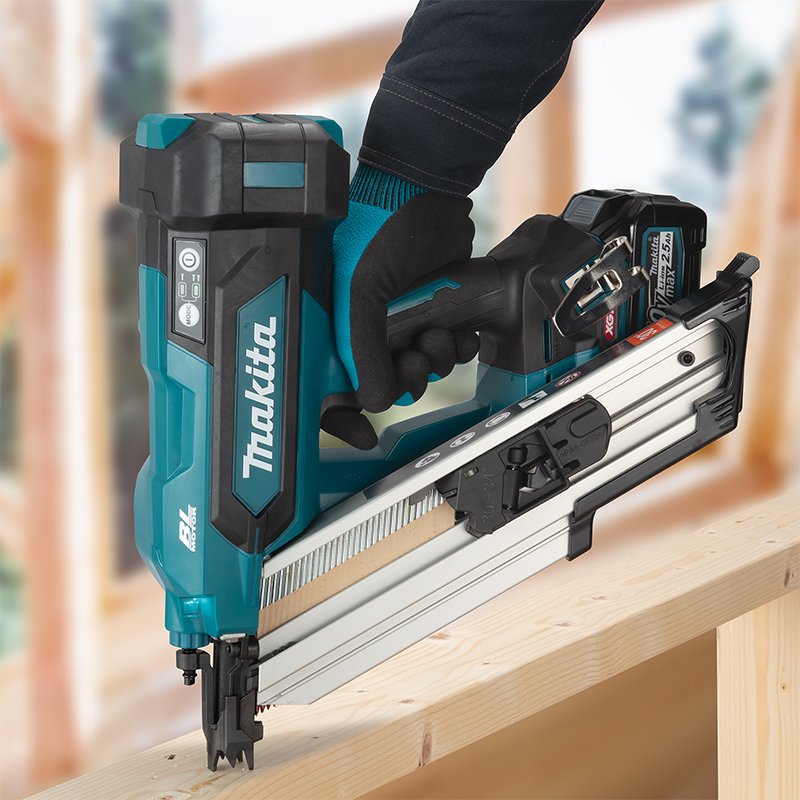

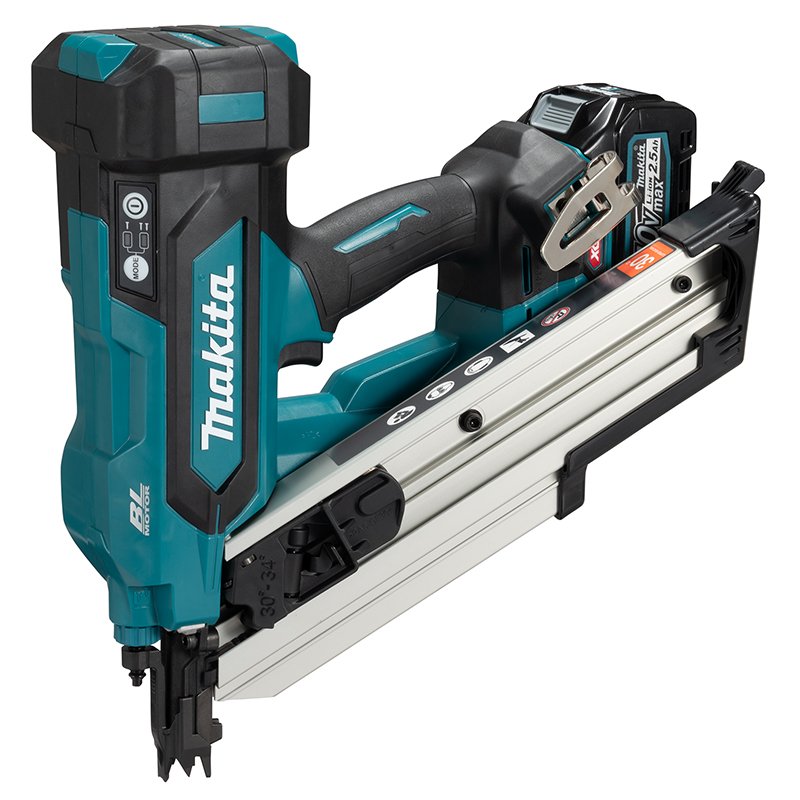

BN001G Cordless Framing Nailer



40Vmax XGT Li-Ion Brushless Cordless 90 mm (3-1/2″) Framing Nailer, Clipped-Head

  • Developed from DBN900, but with an XGT Li-Ion battery and more powerful BL motor, this model features:
    Significantly improved rapid firing capability, which is superior to that of our competitors’ models
    Increased compression speed of pneumatic spring that allows for driving nails up to 90mm with a driving feel very close to that of pneumatic nailers
  • Operation mode
    Selectable from Full sequential actuation mode (for single nailing) / Contact actuation mode (for continuous nailing)
  • LED job light
    Single LED with preglow and afterglow functions
  • Driving depth is adjustable with the dial
  • Anti-slip nose
    Tip shape that resists slipping when driving nails at an angle
  • Window for checking remaining nail quantity
    The amount of remaining nails can be checked.
  • Anti-dry fire mechanism
    The anti-dry fire mechanism is activated before the number of remaining nails reaches zero, avoiding missed shots.
  • Hooks
    • Different hooks can be attached to the left and right sides for various work applications.
    • The rafter hook can be attached to the opposite side of the belt hook. The width of the hook portion is 2-1/2″, allowing for hooking on ladders, scaffolding, and 3x timbers.
  • Water-resistance compatible with XPT
Categories: , Brand:

Drive system : Pneumatic spring


Nail capacity : Length: 50 – 90 mm (2 – 3-1/2″)

Gauge: 2.9 – 3.3 mm (0.113 – 0.131″)

Collation angle display: 30 – 34 °

                         Head shape: Clipped-head

Max magazine capacity: 58 nails


Work volume on a full battery charge : 1,020


Work volume on a full battery charge (Battery) : BL4025


Rapid firing capability per second : 4


Rapid firing capability per second (Battery) : BL4025


Main power switch button : YES


Hook : YES


Battery capacity and other errors : Yes


Vibration level : 3.6 m/s² (EN60745-2-16)


Uncertainty (K) for Vibration : 1.5 m/s² (EN60745-2-16)


Sound pressure level : 90 dB (A) (EN60745-2-16)


Sound power level : 101 dB (A) (EN60745-2-16)


Uncertainty (K) for Noise : 3 dB (A) (EN60745-2-16)


Dimensions (L x W x H) : 326 x 186 x 358 mm (12-7/8 x 7-3/8 x 14-1/8″)


Dimensions (Battery) : BL4025


Net weight : 5.3 – 6.5 kg


Net weight (Battery) : BL4020 – BL4080F
