Pneumatic Drum Pump DAB05-XXXX-X-X

Chemical Transfer, Drum Pump Solutions by ARO

Pneumatic Drum Pump DAB05-XXXX-X-X

DAB05-XXXX-X-X

Non-metallic: 14.4 GPM (54.5 l/min)
Metallic: 12.0 GPM (45.4 l/min)

ARO pneumatic drum pumps are available in three body materials for optimum fluid compatibility. Choose from aluminum, stainless steel or polypropylene body construction.

Factory-Matched Package Components – Our Drum Pump Packages contain pre-specified, matching materials of construction for complete fluid compatibility.

Overview

Features:

12.0 GPM (45.4 lpm) to 14.4 GPM (54.5 lpm) flow capability: drum pumps offer plenty of capacity to satisfy a broad range of transfer application volume demands
Stall-free operation: ARO diaphragm drum pumps feature a patented unbalanced air valve design that avoids stall-out, even under low air-inlet pressures
Bolted construction: ARO diaphragm drum pumps utilize bolted fasteners for leak-tight integrity
5-year warranty

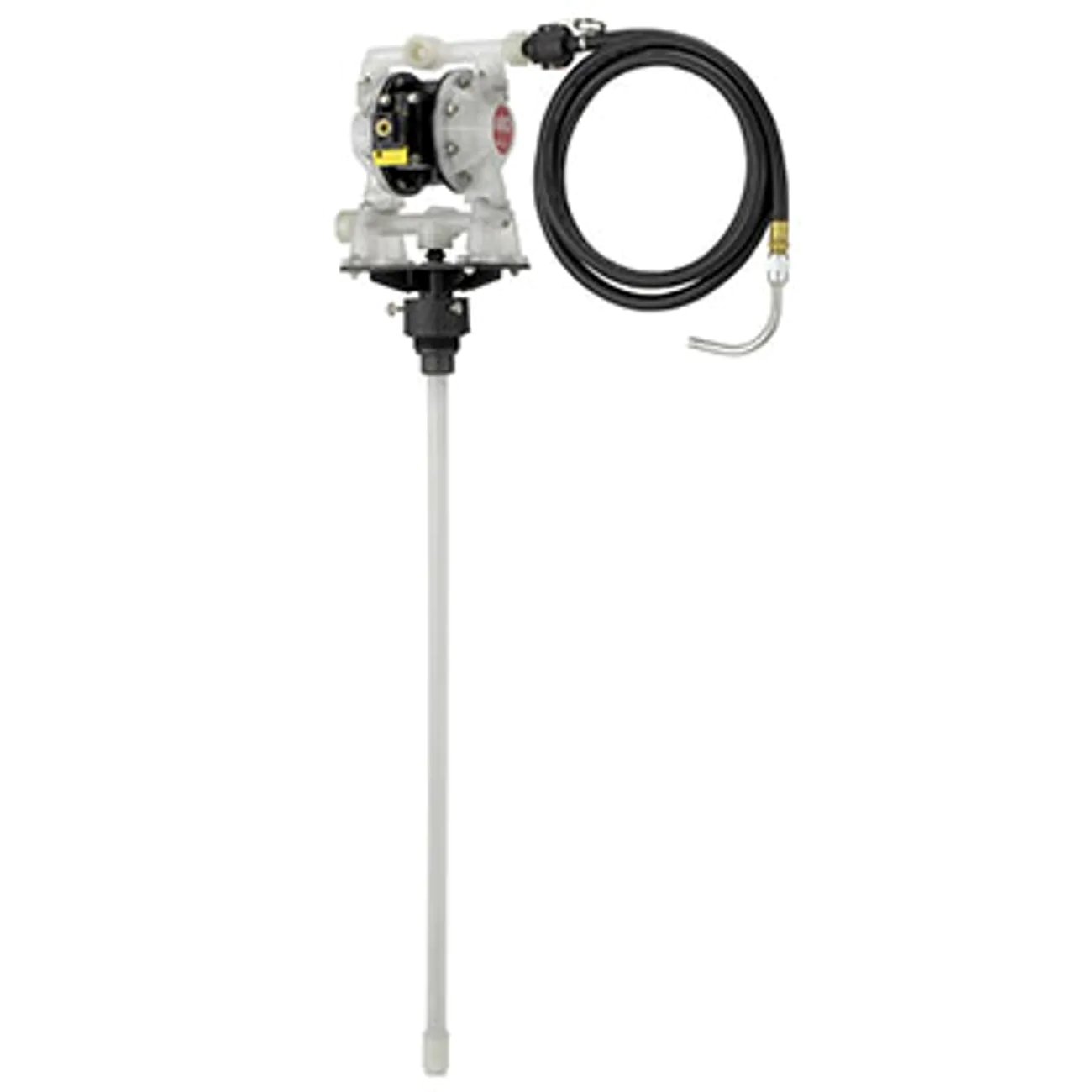

Drum Pump Packages can be ordered in three styles:

Basic: Pump, bung adapter, air safety shut-off, siphon tube, weather seal, and base
Complete / Transfer: basic pump plus fluid hose or fluid hose with non-drip nozzle
Complete / Dispensing: basic pump plus foot valve, hose and dispensing nozzle

Categories: Chemical Transfer, Drum Pump Solutions by ARO Brand: ARO

Description

Specifications

Ratio: 1:1

Maximum Flow:
Non-metallic: 14.4 GPM (54.5 lpm)
Metallic: 12.0 GPM (45.4 lpm)

Displacement per cycle: 0.039 Gallons (0.15 Liters)

Air Inlet: (Female) 1/4 – 18 NPT/F

Fluid Inlet: Siphon tube for 55-gallon drum

Fluid Outlet: 1/2 – 14 NPT/F

Max. operating pressure: 100 PSI (6.9 bar)

Suspended solids max. dia.: 3/32” (2.4 mm)

Weight:
22 lbs. (10 kg) Polypropylene, basic package
26 lbs. (11.8 kg) Aluminum, basic package
36 lbs. (16.3 kg) Stainless, basic package

Model	Pump Housing & Seats	Pump Diaphragm & Balls	Lock Out Valve (104253-2)	Foot Valve	10′ (3m) hose ASM	Dispense Valve	Fluid Service
DAB05-PPTT-2-A	Polypropylene	PTFE	X	–	–	–	Some Acids & Caustics*
DAB05-PPCC-2-A	Polypropylene	Hytrel	X	–	–	–	Oil
DAB05-PPUU-2-A	Polypropylene	Polyurethane	X	–	–	–	Oil
DAB05-PPAA-2-A	Polypropylene	Santoprene	X	–	–	–	Some Mild Acids / Mild Caustics*
DAB05-PPCC-2-N	Polypropylene	Hytrel	X	–	Nitrile	–	Oil
DAB05-PPCC-B-M	Polypropylene	Hytrel	X	X	Nitrile	No-drip	Oil
DAB05-PPAA-2-B	Polypropylene	Santoprene	X	–	EPDM	–	Some Mild Acids / Mild Caustics*
DAB05-PPUU-2-C	Polypropylene	Polyurethane	X	–	Vinyl	–	Oil
DAB05-PPCC-B-J	Polypropylene	Hytrel	X	X	Reinforced Nitrile	X	Oil
DAB05-PPAA-B-K	Polypropylene	Santoprene	X	X	EPDM	X	Some Mild Acids / Mild Caustics*
DAB05-SSTT-2-A	Stainless Steel	PTFE	X	–	–	–	Solvent
DAB05-ASTT-2-A	Alum / SS	PTFE	X	–	–	–	Solvent
DAB05-APCC-2-A	Alum / Poly	Hytrel	X	–	–	–	Oil / Service Fluids
DAB05-APCC-2-0	Alum / Poly	Hytrel	X	–	Nitrile	–	Oil / Service Fluids
DAB05-APCC-B-P	Alum / Poly	Hytrel	X	X	Nitrile	No-drip	Oil / Service Fluids
DAB05-APCC-B-D	Alum / Poly	Hytrel	X	X	–	X	Oil / Service Fluids
DAB05-APCC-B-L	Alum / Poly	Hytrel	X	X	Reinforced Nitrile	X	Oil / Service Fluids
DAB05-ASAA-2-A	Alum / SS	Santoprene	X	–	–	–	Water / Antifreeze
