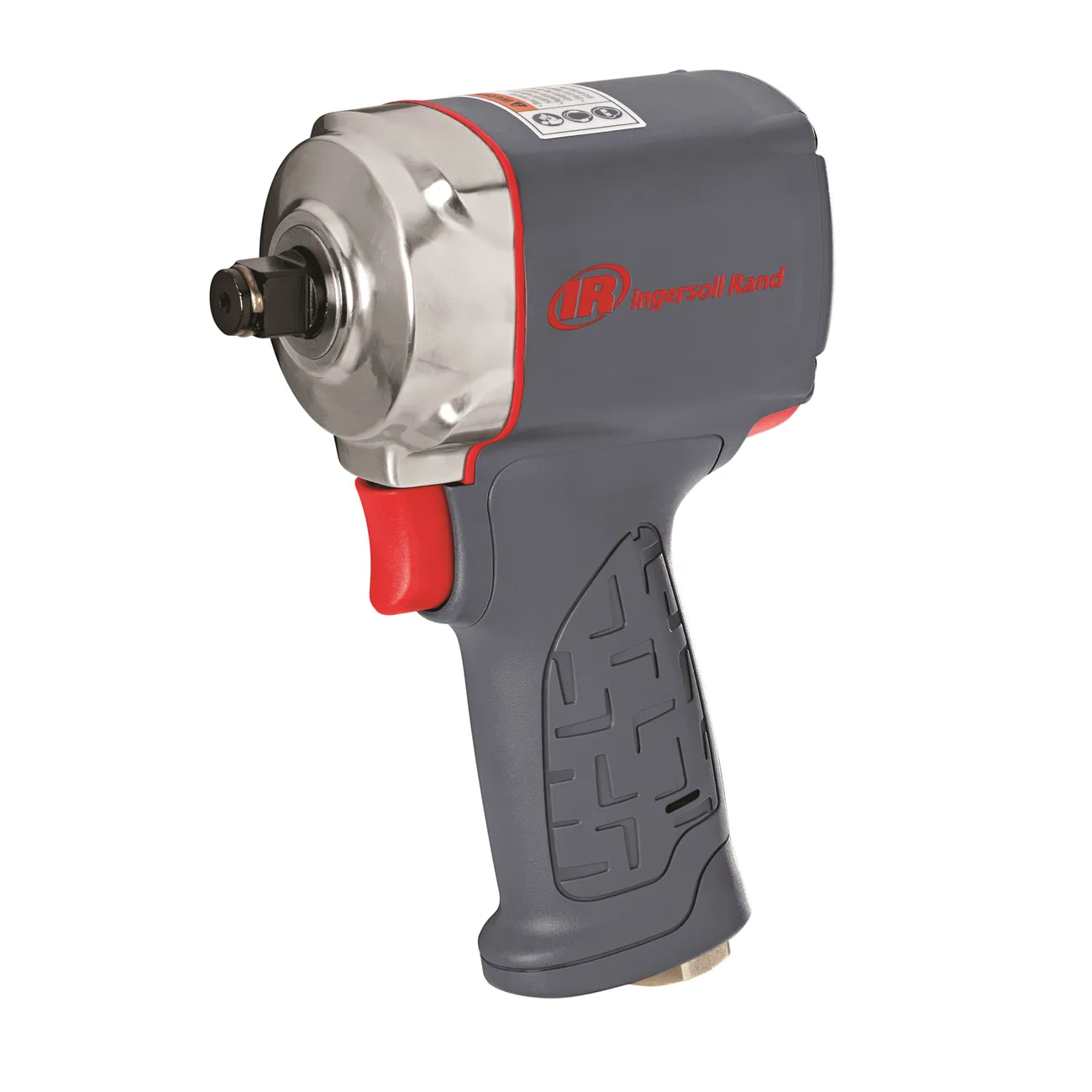

36QMAX Ultra-Compact Impact Wrench

Built on Ingersoll Rand’s 100-year legacy developing industry leading tools, you can always rely on the 36QMAX and 15QMAX. These tools have been rigorously tested, beaten up, dropped and pushed to the limits to make sure they last twice as long as the competition. With their twin hammer design, unmatched durability, superior accessibility and up to 870 Nm of nut busting torque at just 1.1 kg, the 36QMAX and 15QMAX are not just tools you want, they are tools you need to get real work done time and time again.

Features

Power-to-Weight:

  • At 1.1kg this tool still manages to produce 870 Nm of nut busting torque making it a power-to-weight leader in its class.

Access:

  • There is no place for work to hide; as this compact design gives the user the access and power they need, even if the task is up, under, over, or around any awaiting obstruction.

Reliability:

  • Built on the Ingersoll Rand Impact Wrench legacy, this tool is testing at 2X the life of competitive products available today. Backed by a 2-year warranty to prove it.

Control:

  • The one-handed forward/reverse push button and 3-mode power regulator give you max control and max performance.
  • 360° swivel inlet helps eliminating twisted hoses
  • Quiet Tool Technology integrate improve noise level
  • Twin Hammer mechanism helps improving comfort with lower vibrations



Model Specifications

Model Configuration Actuation Drive Size Drive Type Nut-Busting Torque (ft-lbs) Nut-Busting Torque (Nm) Forward Torque (ft-lbs) Forward Torque (Nm) Max Reverse Torque (ft-lbs) Max Reverse Torque (Nm) Blows per minute Free Speed (RPM) Impacting Sound Level dB(A) — ISO15744 (pressure/power) Free Speed Sound Level dB(A) — CAGI/ANSI S12.41 (pressure/power) Vibration Level m/s² (K) Weight (lbs) Weight (kg) Width (in) Width (mm) Height (in) Height (mm) Length (in) Length (mm) Air Inlet Min Hose Size (in) Min Hose Size (mm) Air Consumption @ Load (cfm) Air Consumption @ Load (L/min) Average Air Consumption (cfm) Average Air Consumption (L/min)
36QMAX Pistol Trigger 1/2 in. Rear Handle 640 870 380 520 470 640 1300 8000 91.3 / 102.3 87.6 / 98.6 8.1 (1.2) 2.6 1.2 2.4 60 7.1 181 4.6 117 1/4 in. 3/8 10 19 538 24 680
15QMAX Pistol Trigger 3/8 in. Square, Hog-Ring 475 650 310 420 380 520 1350 6000 89.7 / 100.7 83.7 / 94.7 5.5 (0.9) 2.4 1.1 2.4 60 7.1 181 4.6 117 1/4 in. 3/8 10 17 481 4 113
