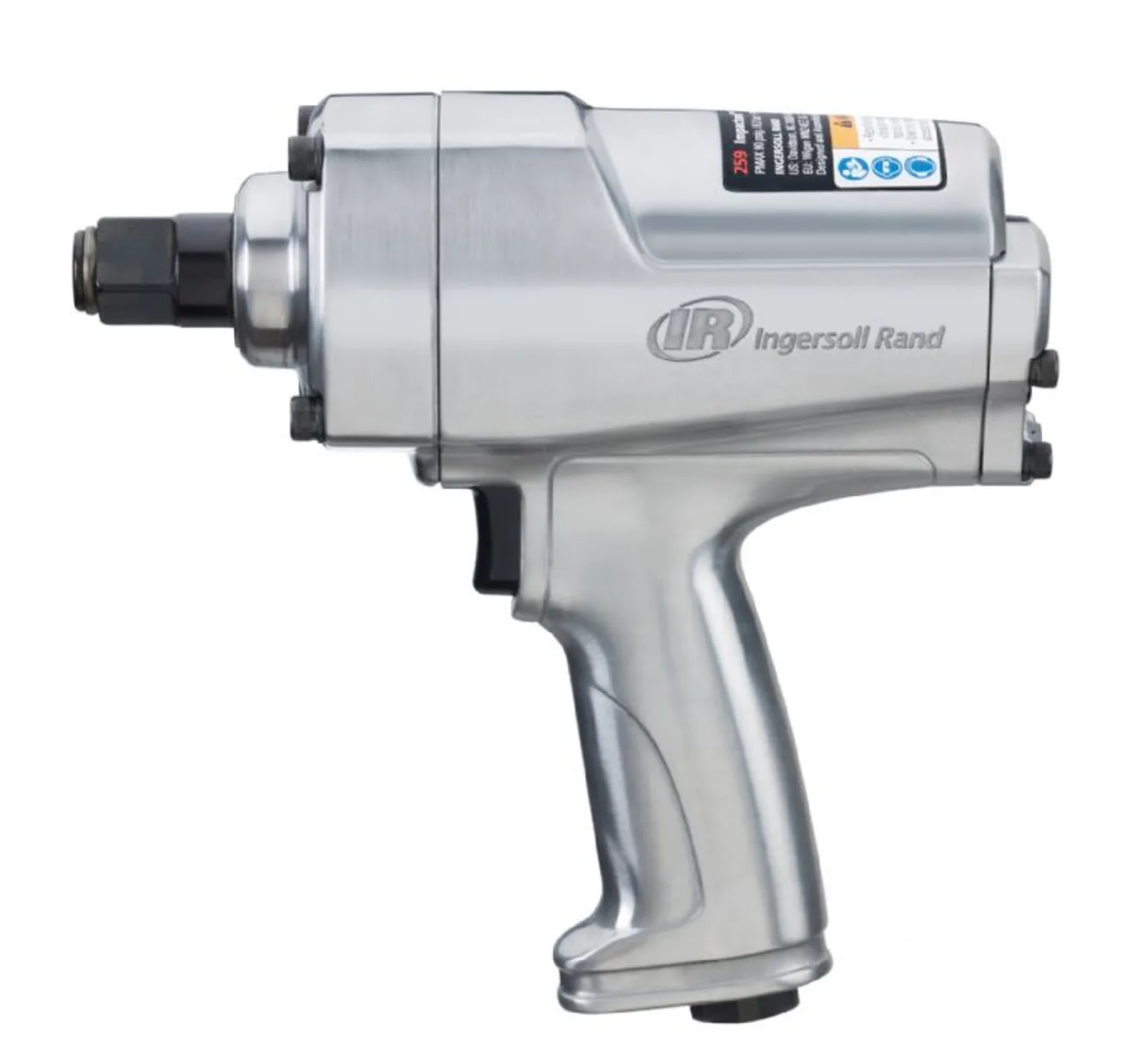

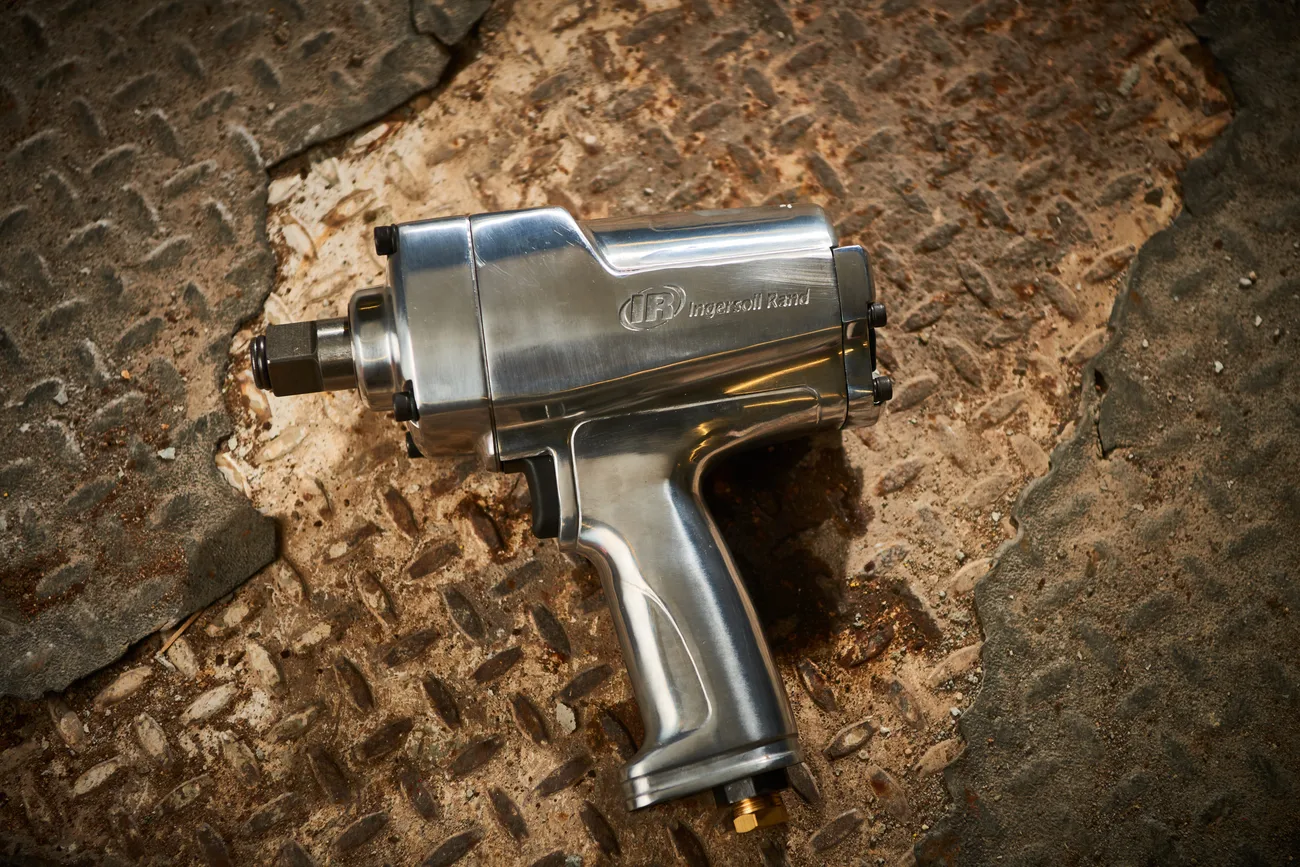

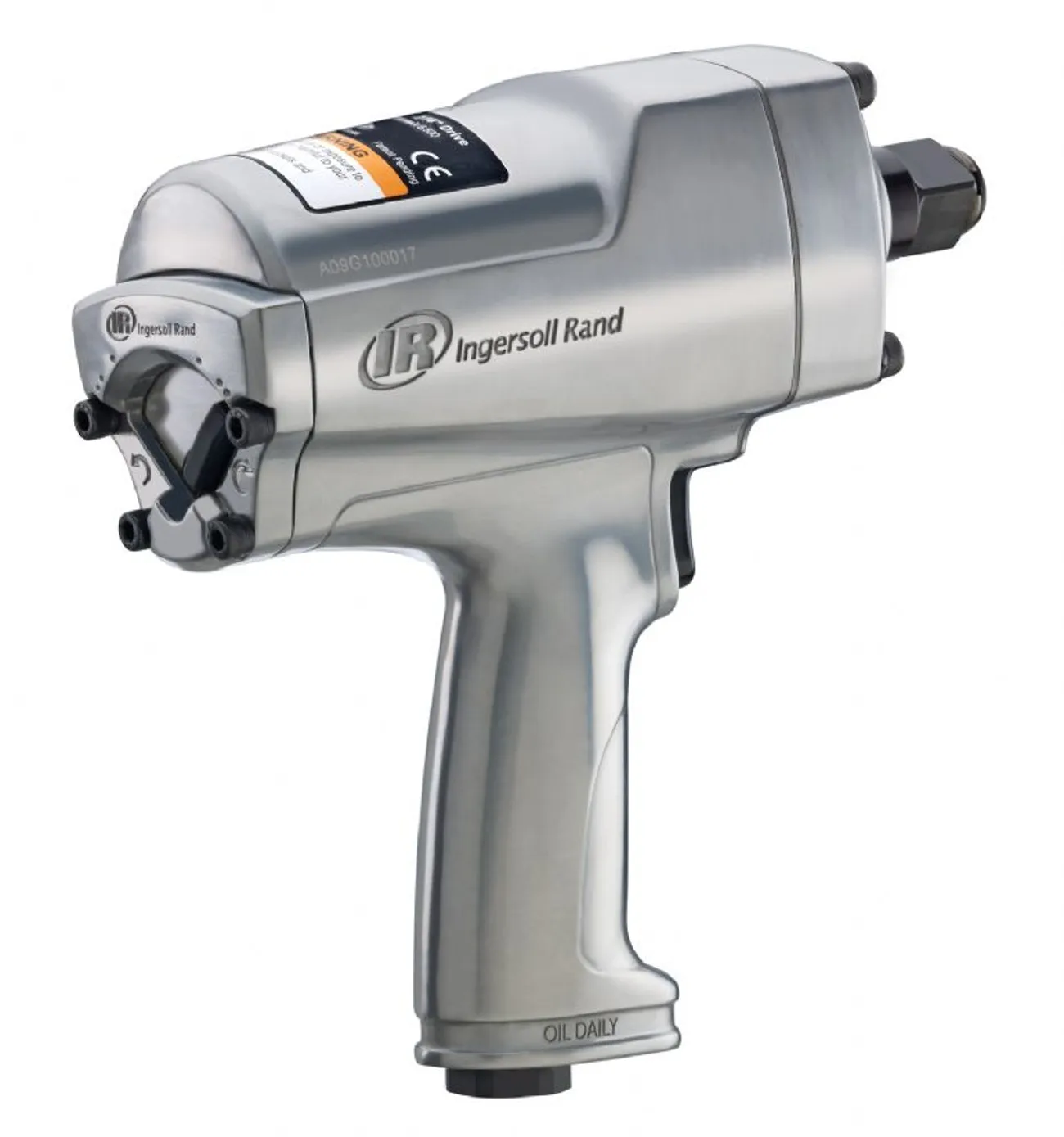

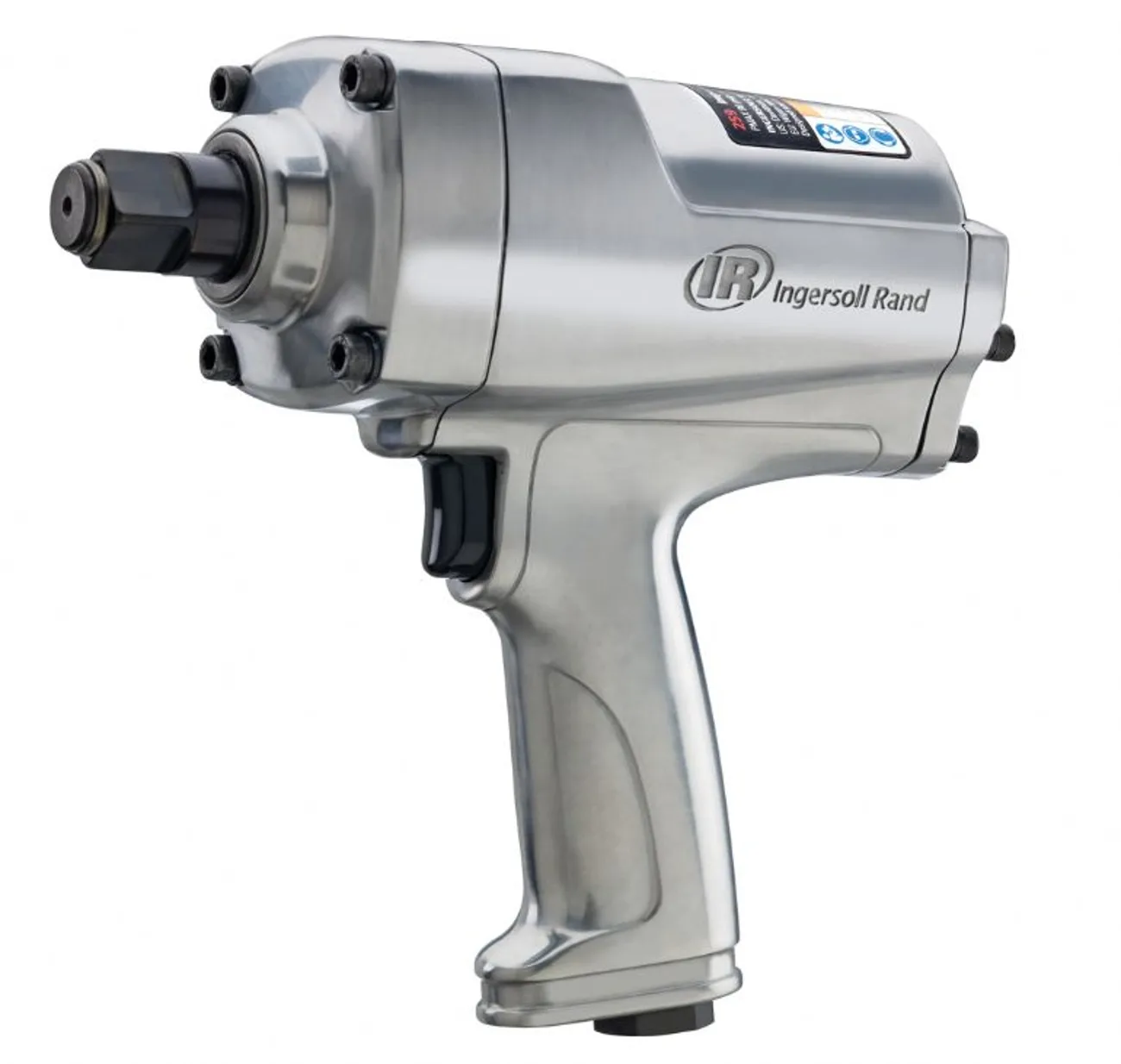

259 Series Impact Wrench

The 259 Series impact wrench is great for jobs in vehicle repair and heavy truck markets. Backed by Ingersoll Rand’s strong reputation of developing industry-leading tools, the 259 Series can be counted on for durable and consistent power at a great value.

Features

Light Weight:

With the 259 Series’ aluminum hammer case and powerful vane motor, this impact wrench offers a great power-to-weight ratio.

Reliability:

These parts will stand the test of time. The rocking dog impact mechanism is easy to maintain and delivers a powerful burst with low air needs.

Ergonomic:

The aluminum hammer case and pistol grip make the 259 Series easy to hold, while the power regulator offers deeper control during use.

Other Features:

  • Patent-pending soft-mount system reduces vibration for extended motor and switch life
  • Handle-vented exhaust directs air away from the operator
  • Silenced exhaust reduces tool noise while using this pneumatic impact wrench
  • Feather-touch trigger provides maximum speed control
  • Ergonomically designed small-handle grip helps reduce operator fatigue during extended use of this pneumatic air wrench

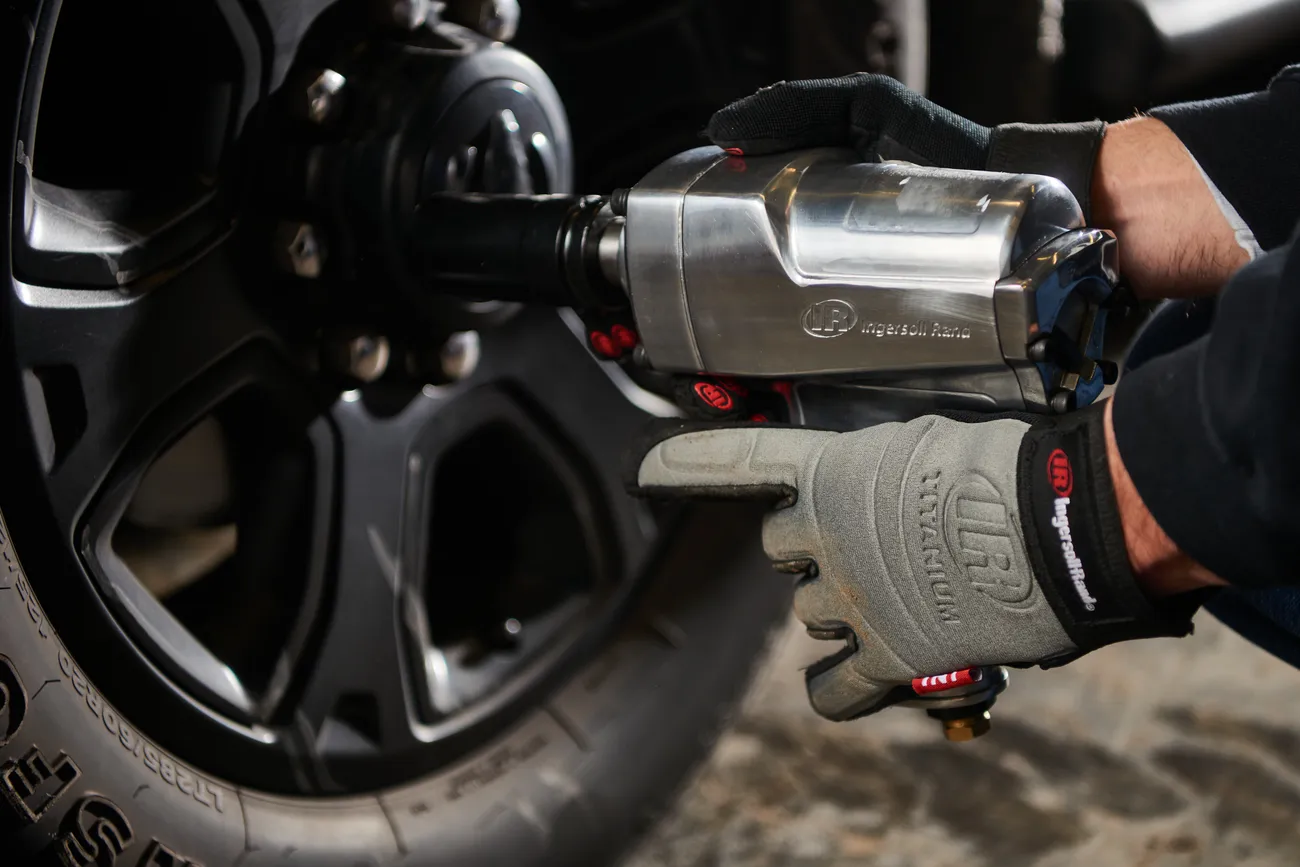

  • Optimized for the vehicle repair industry and heavy trucks
  • Non-biased motor delivers 1424 Nm of maximum torque in both forward and reverse



Model Specifications

Model Configuration Actuation Drive Size Drive Type Forward Torque (Nm) Max Reverse Torque (ft-lbs) Max Reverse Torque (Nm) Blows per minute Free Speed (RPM) Impacting Sound Level dB(A) — ISO15744 (pressure/power) Free Speed Sound Level dB(A) — CAGI/ANSI S12.41 (pressure/power) Vibration Level m/s² (K) Weight (lbs) Weight (kg) Width (in) Width (mm) Height (in) Height (mm) Length (in) Length (mm) Air Inlet Min Hose Size (in) Min Hose Size (mm) Air Consumption @ Load (cfm) Air Consumption @ Load (L/min) Average Air Consumption (cfm) Average Air Consumption (L/min) PSI Bar
259 Pistol Trigger 3/4 in. Square, Hog-Ring 1085 1050 1424 1000 6000 91.6 / 102.6 96.5 / 107.5 6.4 (0.8) 8.8 4 3.2 81 8.5 216 8.6 218 3/8 in. 3/8 10 30 850 8 227 90 6.2
