2135QXPA Series Impact Wrench

The 2135QXPA Series Impact Wrench was built on the hardworking and respected foundation laid by the 2135QTiMAX. The result is a light, quiet and powerful impact wrench that delivers an incredible level of performance and power at a cost that won’t punish your wallet. The 2135QXPA is the finely tuned and finely crafted impact wrench you need to tackle the toughest jobs.

Features

Variety:

  • With the option of a square socket retaining ring, a square pin or an extended anvil, you can choose the right configuration for your application.

Reliability:

  • You can expect the same high-impact output every time you use this tool on the job.

Power:

  • Looking for an impact wrench with a high torque output for any type of maintenance? The 2135QXPA Series is for you.

Other Features:

  • Reverse-bias 7-vane motor delivers even more torque in reverse
  • 4 positions power regulator helps adjusting power to the application
  • One hand forward/reverse push button for easy operation
  • Quiet Tool technology reduces noise level without sacrificing the power



Model Specifications

Model Configuration Actuation Drive Size Drive Type Nut-Busting Torque (ft-lbs) Nut-Busting Torque (Nm) Forward Torque (ft-lbs) Forward Torque (Nm) Max Reverse Torque (ft-lbs) Max Reverse Torque (Nm) Blows per minute Free Speed (RPM) Impacting Sound Level dB(A) — ISO15744 (pressure/power) Free Speed Sound Level dB(A) — CAGI/ANSI S12.41 (pressure/power) Vibration Level m/s² (K) Weight (lbs) Weight (kg) Width (in) Width (mm) Height (in) Height (mm) Length (in) Length (mm) Air Inlet Min Hose Size (in) Min Hose Size (mm) Air Consumption @ Load (cfm) Air Consumption @ Load (L/min) Average Air Consumption (cfm) Average Air Consumption (L/min) PSI Bar
2135PQXPA Pistol Trigger 1/2 in. Square, Pin 1100 1490 700 949 780 1057 1250 11000 90.7 / 101.7 86.0 / 97.0 13.3 (4.6) 4 1.8 2.7 70 7.2 183 7.5 190 1/4 in. 3/8 10 N/A N/A 5 142 90 6.2

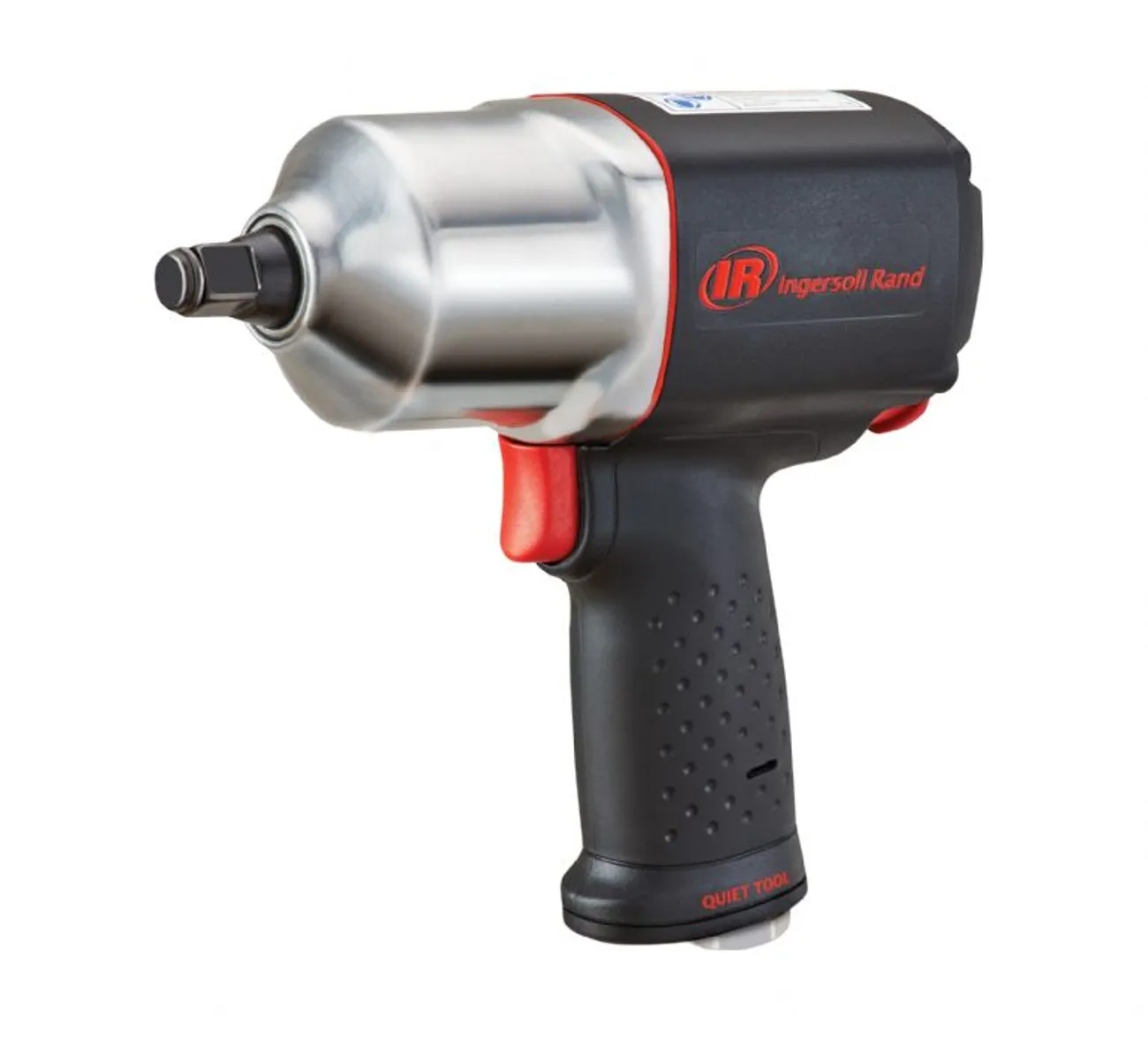

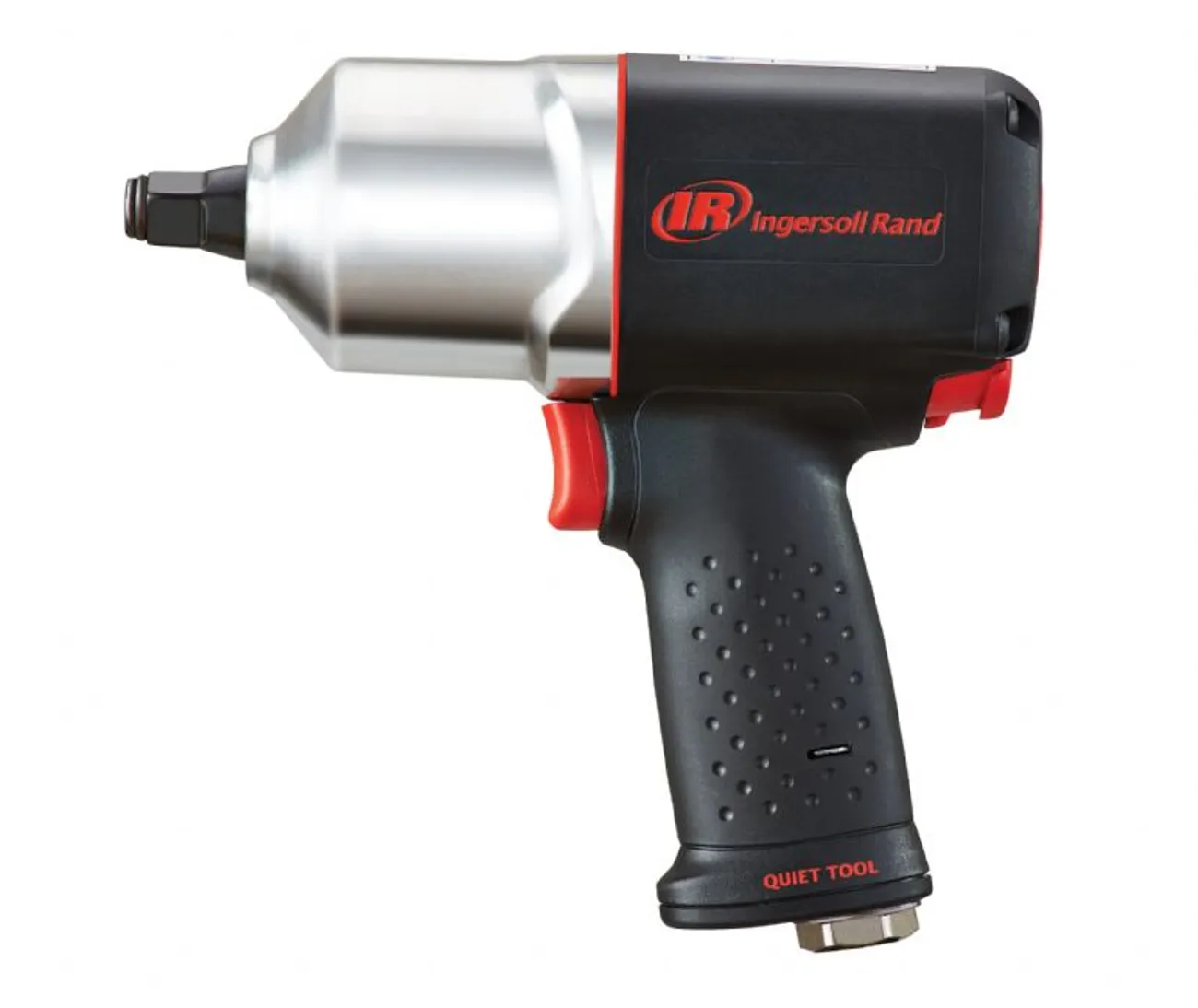

2135QXPA Pistol Trigger 1/2 in. Square, Hog-Ring 1100 1490 700 949 780 1057 1250 11000 90.7 / 101.7 86.0 / 97.0 13.3 (4.6) 4 1.8 2.7 70 7.2 183 7.5 190 1/4 in. 3/8 10 N/A N/A 5 142 90 6.2

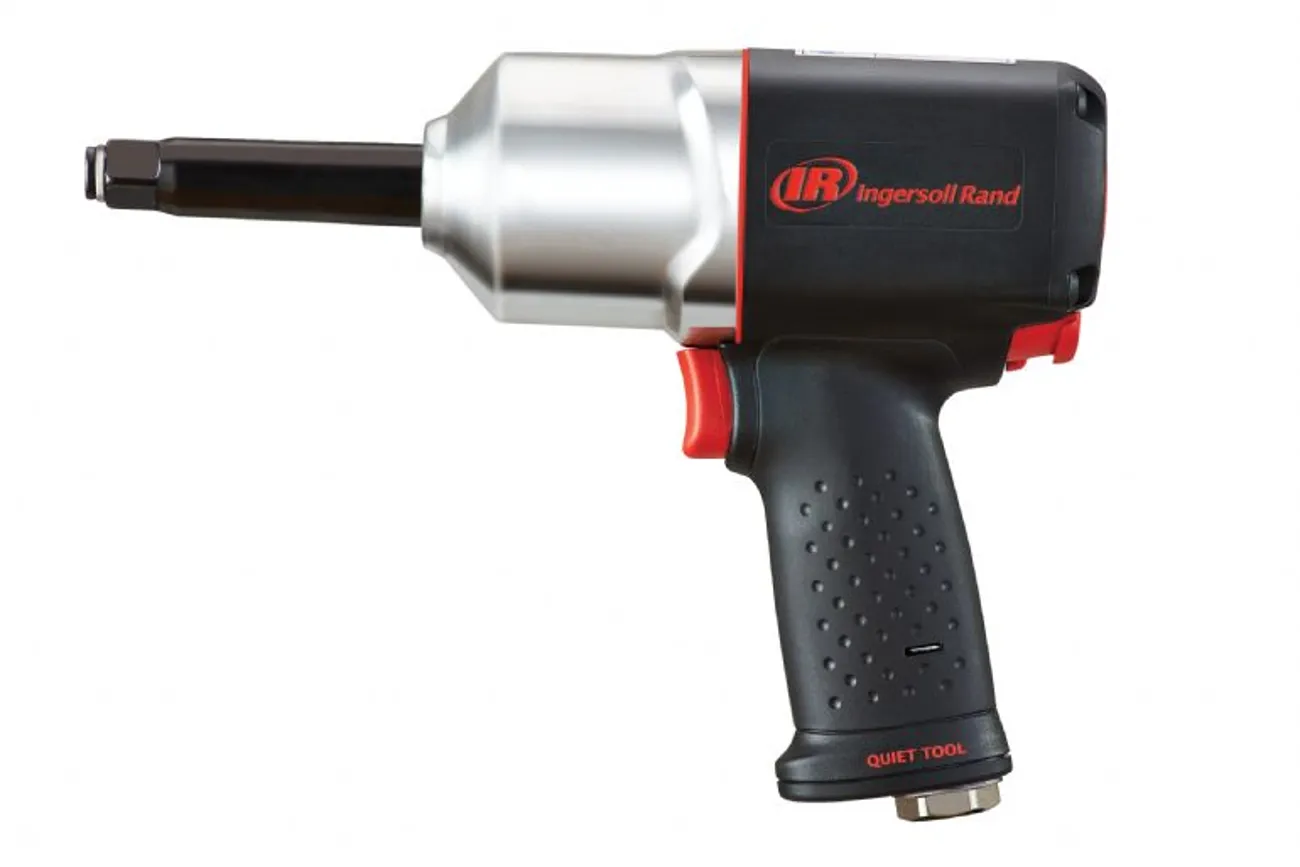

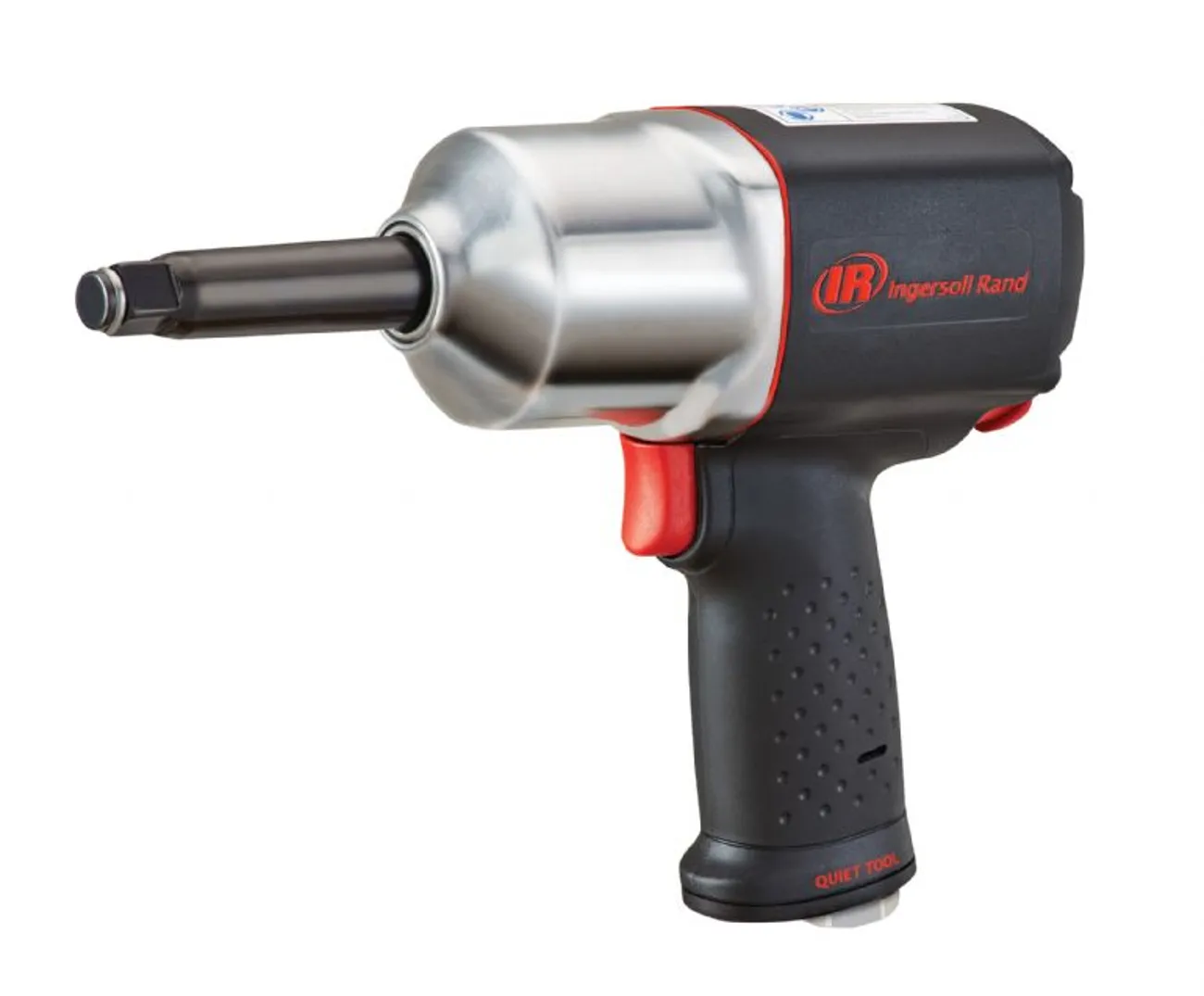

2135QXPA-2 Pistol Trigger 1/2 in. Square, Hog-Ring, 2 in. Ext. 1100 1490 700 949 780 1057 1250 11000 90.7 / 101.7 86.0 / 97.0 9.7 (1.8) 4.3 1.9 2.7 70 7.2 183 9.5 242 1/4 in. 3/8 10 N/A N/A 5 142 90 6.2
