2940 Series Impact Wrench

Features

2,000 ft-lbs of maximum torque
Cast iron hammer case and metal housing that will withstand harsh conditions and repeated drops
Finely Tuned twin hammer impact mechanism delivers more balanced blows that reduces vibration and increases durability
Bronze end-plate that increases durability and is corrosion resistant
Pressure-fed mechanism lubrication
Reverse Bias Motor and Integral muffler

Model	Configuration	Actuation	Drive Size	Drive Type	Forward Torque ft-lbs (Nm)	Blows per minute	Free Speed (RPM)	Impacting Sound Level dB(A) — ISO15744 (pressure/power)	Free Speed Sound Level dB(A) — CAGI/ANSI S12.41 (pressure/power)	Vibration Level m/s2 (K)	Weight (lbs)	Weight (kg)	Air Inlet	Min Hose Size (in)	Min Hose Size (mm)	PSI
2940A1	D-Handle	Outside Trigger	No. 5	Spline	1,000 – 1,600 (1,360 – 2,170)	850	5000	N/A	94.8 / 105.8	17.8 (3.4)	22	9.98	1/2 in.	3/4	19	90

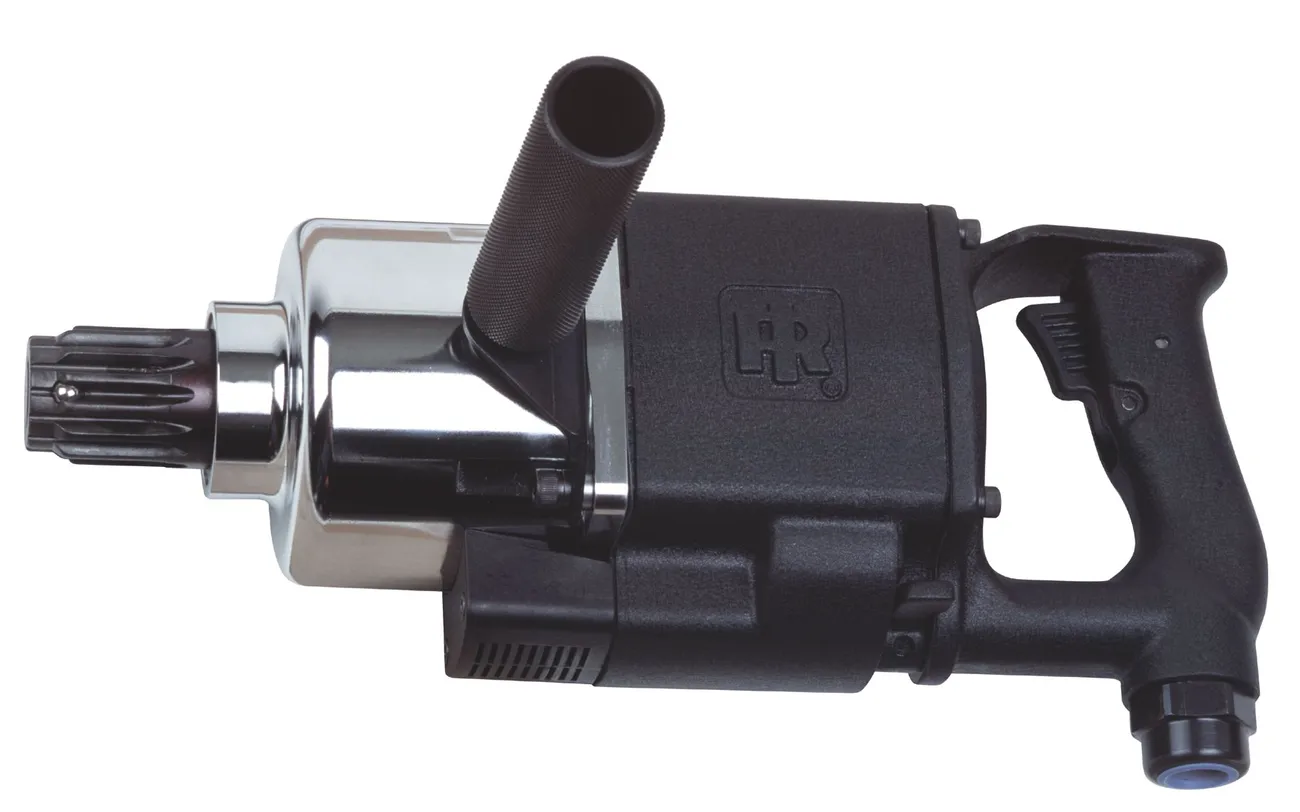

2940B1	D-Handle	Inside Trigger	No. 5	Spline	1,000 – 1,600 (1,360 – 2,170)	850	5000	N/A	94.8 / 105.8	17.8 (3.4)	22	9.98	1/2 in.	3/4	19	90
2940B2	D-Handle	Inside Trigger	1 in.	Square	1,000 – 1,600 (1,360 – 2,170)	850	5000	N/A	94.8 / 105.8	17.8 (3.4)	22	9.98	1/2 in.	3/4	19	90

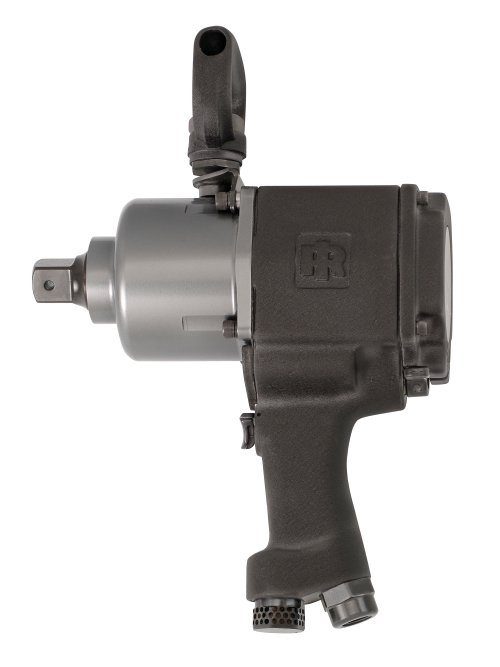

2940P2	Pistol	Trigger	1 in.	Square	1,000 – 1,600 (1,360 – 2,170)	810	3350	N/A	94.2 / 105.2	18.1 (5.6)	22.9	10.4	1/2 in.	3/4	19	90
