Technical Specifications
Speed
Free Speed :- 160 rpm
Torque
Max working torque reverse :- 68 Nm
Max torque reverse :- 68 Nm
Min working torque reverse :- 13 Nm
Size & Weight
Length (L) :- 260 mm
Weight :- 1.19 kg
General

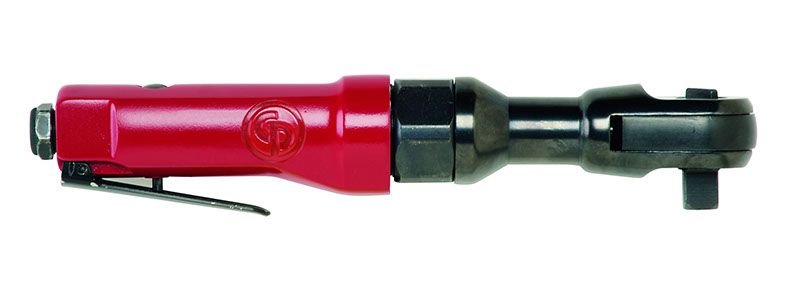

Subfamily :- Pneumatic Ratchet Wrenches
Noise & vibrations
Sound Power :- 110 dB(A)
Sound Pressure :- 99 dB(A)
Uncertainty vibration-K :- 1.3 m/s²
Vibration (m/s²) :- 3.7
Air information
Air consumption at load :- 8 l/s
Air inlet thread size (in) :- 1/4
Max dynamic air working pressure :- 6.3 bar
Min hose diam (5 m hose length) :- 10 mm
Design & Functions
Main Material type :- Aluminum
Output drive size (in) :- 1/2
Output drive type :- Sq
Output retainer type :- Ball detent
Starting system :- Lever
Benefits
- Compact head design for improved access in tight places
- Easy grip reverse for simple directional changes
