Features
Comfort:
- The composite housing on these models is lightweight and contoured for increased comfort and protection from temperature fluxuations.
Access:

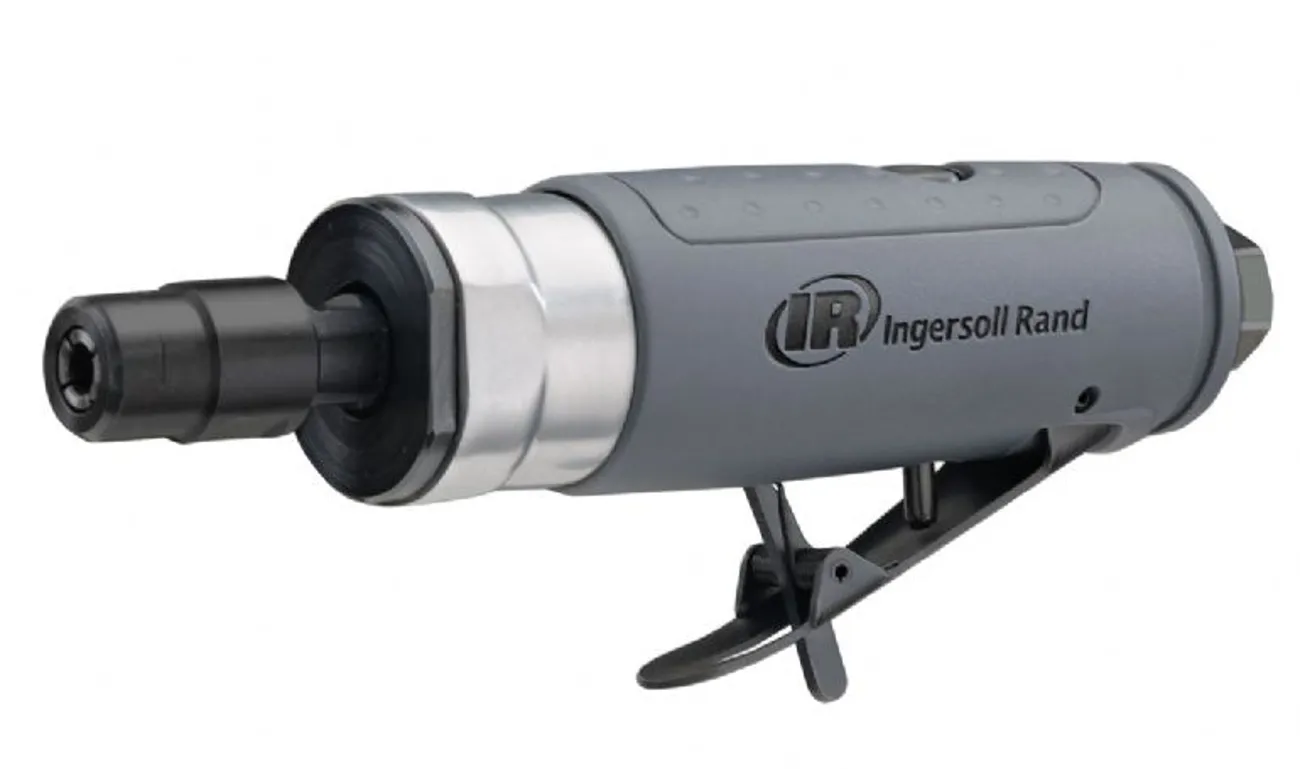

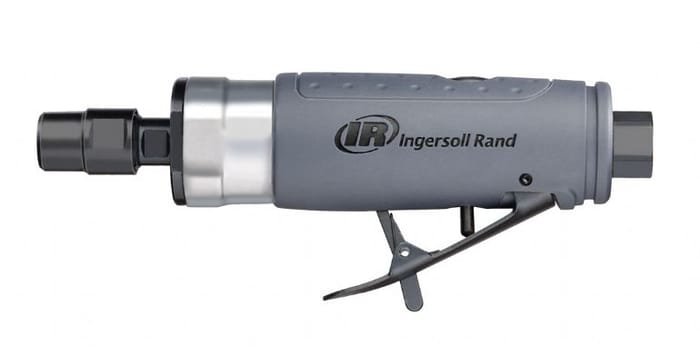

- With two configurations in the 302B (right angle) and 308B (straight), you can find a die grinder that fits your needs and reaches all your tough spots.
Piped Away Exhaust Ready:
- These die grinders are compatible with “piped away” exhaust kits, so you can transfer exhaust away from you and your workspace.
|
Model |
Rated Power (hp) |
Rated Power (kW) |
Max Free Speed (rpm) |
Output |
Weight (lbs) |
Weight (kg) |
Length (in) |
Length (mm) |
Air Consumption @ Load (cfm) |
Air Consumption @ Load (L/min) |
Average Air Consumption (cfm) |
Average Air Consumption (L/min) |
Air Inlet Size (in) |
Exhaust |
Min Hose Size (in) |
Min Hose Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
302B |
0.33 |
0.25 |
20000 |
1/4 in. and 6 mm |
1.28 |
0.58 |
6.93 |
176 |
23 |
651 |
6 |
170 |
1/4 |
Rear |
3/8 |
10 |
|
308B |
0.33 |
0.25 |
25000 |
1/4 in. and 6 mm |
1.02 |
0.46 |
6.85 |
174 |
28 |
793 |
7 |
198 |
1/4 |
Rear |
3/8 |
10 |
