Technical Specifications
Torque
Max working torque fwd :- 414 Nm
Max torque reverse :- 610 Nm
Min working torque fwd :- 68 Nm
Torque limited :- No
Air information
Air consumption at load :- 9.4 l/s
Air inlet thread size (in) :- 1/4
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.38 in
Min hose diam (5 m hose length) :- 10 mm
Noise & vibrations
Sound Power :- 103 dB(A)
Sound Pressure :- 92 dB(A)
Uncertainty vibration-K :- 2.5 m/s²
Vibration (m/s²) :- 6.9
Speed
Free Speed :- 9900 rpm
Size & Weight
Length (L) :- 163 mm
Power weight ratio :- 500 Nm/kg
Side to Center :- 26 mm
Weight :- 1.2 kg
Design & Functions
Blow per minute :- 1700
Body :- Composite
Clutch housing :- Aluminium
Clutch lubrication type :- Grease
Handle type :- Pistol
Impact mecanism :- Twin hammer
Main Material type :- Composite
Output drive size (in) :- 1/2
Output drive type :- Sq
Output retainer type :- Friction ring
Starting system :- Trigger
Features
- Lightweight composite housing
- Twin hammer impact mechanism
- Magnesium clutch housing for high durability
- Side-2-Side reverse / forward technology with 3 positive power settings to maximise operator comfort
- Friction Ring & Pin-Style anvil options
Benefits
- Lightweight
- Increased comfort and productivity

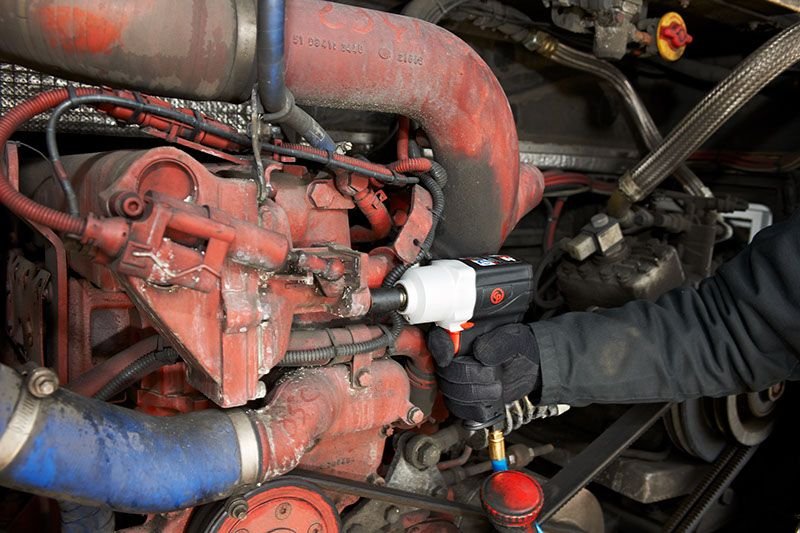

- For use in a wide variety of Vehicle Service & MRO applications
