Model Specifications
|
Model |
Rated Power (hp) |
Rated Power hp (kW) |
Max Free Speed (rpm) |
Exhaust |
Pad Diameter or Size (in) |
Pad Diameter or Size (mm) |
Pad Face |
Vacuum Ready |
Weight (lbs) |
Weight (kg) |
Vibration m/s² (uncertainty K) |
Sound Pressure/Power dBA |
Min Hose Size (in) |
Min Hose Size (mm) |
Air Inlet (in) |
Average Air Consumption (cfm) |
Average Air Consumption (L/min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

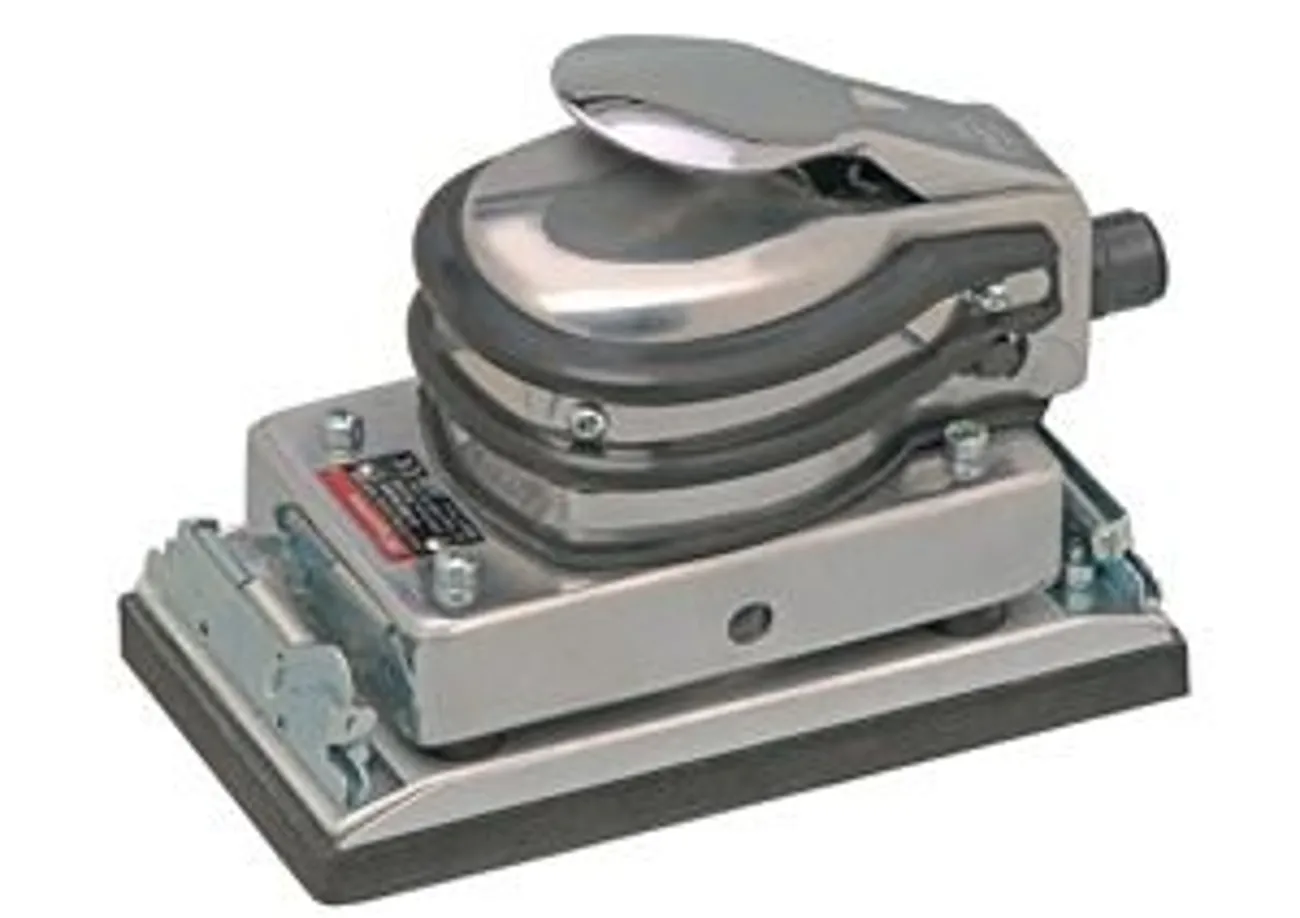

312A |
0.3 |
0.22 |
8000 |
Rear |
3.67 x 6.75 |
93 x 171 |
Paper Clamp |
No |
4.6 |
2.09 |
7.7 (uncertainty: 1.9) |
94.1 / 107.1 |
3/8 |
10 |
1/4 NPT |
9 |
255 |
