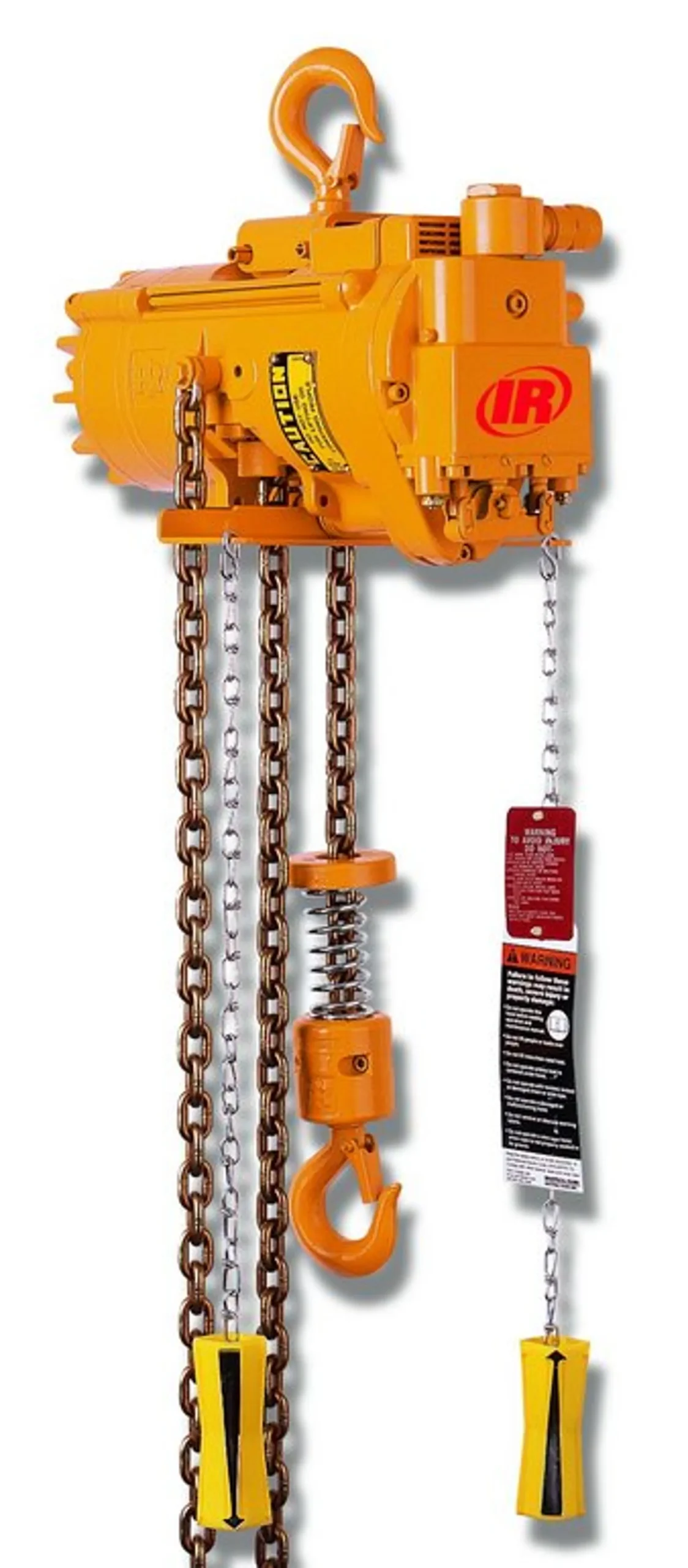

Features
- Meets Specifications
- 100% duty cycle. MLK/HLK are rated as HMI duty classification A5, severe duty. This equates to FEM 9.511 duty classification 2m.
- These hoist are ideal for the harsh environments found in steel mills, foundries and electroplating operations. These are also ideal for high duty cycle applications.
- Pull chain or pilot pendent controls provide precise spotting capabilities. For even more precise control MLKS slow speed models are available.
- Self adjusting, air operated disc brake is spring applied and air released. Wear tested to over 1 million cycles before replacement.
- All rotating parts are supported by either ball or roller type bearings. Unique planetary gearing system assures long life.
- Thoughtful design includes parts interchangeability, inlet swivels, exhaust air chain lubrication, control adjustment screws and easy conversion from pull chain to pendent control.
- Spark resistant models and a wide range of options and accessories are available.
Model Specifications
|
Model Name |
Chain falls |
Speed at rated load DOWN, fpm (m/min) |
Speed at rated load UP, fpm (m/min) |
Headroom (Hook Mount), in (mm) |
Air Consumption, m³/min (per Hoist) |
Shipping Weight, lbs (kg) |
Capacity, lbs (kg) |
|---|---|---|---|---|---|---|---|
|
ML1000K |
2 |
49 (14.93) |
28 (8.53) |
18 (457.2) |
70 (1.98) |
61 (27.7) |
2200 (1000) |
|
ML1000KS |
2 |
33 (10.06) |
11 (3.35) |
18 (457.2) |
45 (1.27) |
61 (27.7) |
2200 (1000) |
|
ML250K |
1 |
117 (35.66) |
101 (30.78) |
18 (457.2) |
70 (1.98) |
48 (21.8) |
550 (250) |
|
ML250KR |
1 |
38 (11.58) |
26 (7.92) |
18 (457.2) |
45 (1.27) |
48 (21.8) |
550 (250) |
|
ML250KS |
1 |
90 (27.43) |
40 (12.19) |
18 (457.2) |
45 (1.27) |
48 (21.8) |
550 (250) |
|
ML500K |
1 |
97 (29.56) |
55 (16.76) |
18 (457.2) |
70 (1.98) |
48 (21.8) |
1100 (500) |
|
ML500KR |
2 |
20 (6.1) |
13 (3.96) |
18 (457.2) |
45 (1.27) |
61 (27.7) |
1100 (500) |
|
ML500KS |
1 |
66 (20.12) |
22 (6.7) |
18 (457.2) |
45 (1.27) |
48 (21.8) |
1100 (500) |
