Features
Durability:
- Rugged, compact and lightweight all steel construction adaptable for any environment
- Grade 80 calibrated corrosion-resistant load chain
- Automatic multi disc brake fully enclosed for better corrosion resistance
- Drain holes in block prevent deterioration due to trapped water
- Stainless steel load chain available on 1T and 2T models
- Cast iron or iron control pendant for long-life operation
Safety:
- Suitable for explosive environments per ATEX Zone 2 standard (ATEX Zone 1 package optional)
- Fail-safe brake holds the load in any situation
- CE-certified models include an overload protection device for safe operation
- Overload protection device ensures safe operation
- Upper and lower limit switches integrated in hoist body provide better protection
Performance:
- Virtually maintenance-free gear-type air motor with minimal moving parts
- Variable speed for precision spotting control
- Ball bearing mounted bottom hook for easier, smoother turning under load
- -20°C design temperature for cold weather operation (optional on some models)
|
Model |
Type |
Lifting Capacity Metric Tons |
Reeves of Chain |
Headroom mm (in) |
Trolley Flange Adjustment Range mm (in) |
Hoist Weight with 3m (10ft) of chain kg (lb) |
Trolley Weight(1) kg (lb) |
Weight per additional meter of lift kg (lb) |
|---|---|---|---|---|---|---|---|---|
|
LC2A010SI |
Hook |
1 |
1 |
409 (16.1) |
– |
38 (84) |
– |
1.5 (3.3) |
|
LC2A015SI |
Hook |
1.5 |
1 |
409 (16.1) |
– |
38 (84) |
– |
1.5 (3.3) |
|
LC2A020DI |
Hook |
2 |
2 |
549 (21.6) |
– |
48 (106) |
– |
3.0 (6.6) |
|
LC2A030DI |
Hook |
3 |
2 |
549 (21.6) |
– |
48 (106) |
– |
3.0 (6.6) |
|
LC2A030SI |
Hook |
3 |
1 |
580 (22.8) |
– |
80 (176) |
– |
3.8 (8.4) |
|
LC2A040SI |
Hook |
4 |
1 |
580 (22.8) |
– |
90 (198) |
– |
3.8 (8.4) |
|
LC2A060QI |
Hook |
6 |
4 |
653 (25.7) |
– |
74 (163) |
– |
6.0 (13.2) |
|
LC2A060DI |
Hook |
6 |
2 |
807 (31.8) |
– |
108 (238) |
– |
7.6 (16.8) |
|
LC2A060SI |
Hook |
6 |
1 |
717 (28.2) |
– |
125 (276) |
– |
5.7 (12.6) |
|
LC2A080DI |
Hook |
8 |
2 |
807 (31.8) |
– |
118 (260) |
– |
7.6 (16.8) |
|
LC2A120DI |
Hook |
12 |
2 |
945 (37.2) |
– |
170 (375) |
– |
11.4 (25.1) |
|
LC2A125SI |
Hook |
12.5 |
1 |
865 (34.1) |
– |
395 (871) |
– |
10.7 (23.6) |
|
LC2A180TI |
Hook |
18 |
3 |
1,063 (41.9) |
– |
277 (611) |
– |
17.1 (37.7) |
|
LC2A250QI |
Hook |
25 |
4 |
1,156 (45.5) |
– |
324 (714) |
– |
23.0 (50.7) |
|
LC2A250DI |
Hook |
25 |
2 |
1,235 (48.6) |
– |
558 (1,230) |
– |
21.4 (47.2) |
|
LC2A375TI |
Hook |
37.5 |
3 |
1,484 (58.4) |
– |
855 (1,885) |
– |
32.1 (70.8) |
|

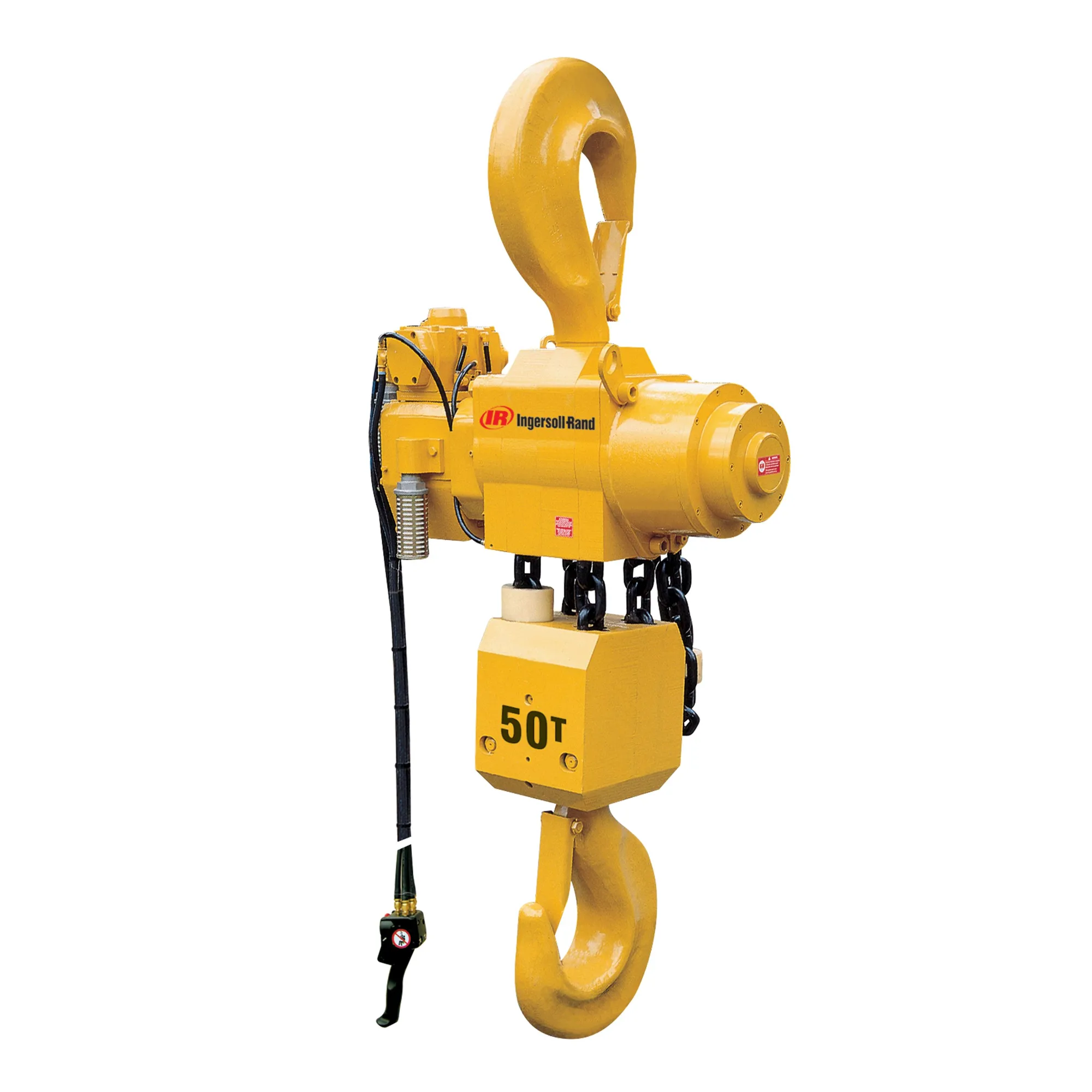

LC2A500QI |
Hook |
50 |
4 |
1,590 (62.6) |
– |
965 (2,127) |
– |
42.8 (94.4) |
|
LCA750TI |
Hook |
75 |
3 |
2,338 (92.0) |
– |
1,700 (3,748) |
– |
73.5 (162.0) |
|
LCA1000QI |
Hook |
100 |
4 |
2,455 (96.7) |
– |
2,200 (4,850) |
– |
98.0 (216.1) |
|
LC2A010SI |
Industrial Trolley |
1 |
1 |
450 (18) |
83-152 (3.3-6) |
38 (84) |
40 (88) |
1.5 (3.3) |
|
LC2A010SI |
Industrial Wide beam Trolley |
1 |
1 |
450 (18) |
152 – 305 (6-12) |
38 (84) |
44 (97) |
1.5 (3.3) |
|
LC2A015SI |
Industrial Trolley |
1.5 |
1 |
450 (18) |
83-152 (3.3-6) |
38 (84) |
40 (88) |
1.5 (3.3) |
|
LC2A015SI |
Industrial Wide beam Trolley |
1.5 |
1 |
450 (18) |
152 – 305 (6-12) |
38 (84) |
44 (97) |
1.5 (3.3) |
|
LC2A020DI |
Industrial Trolley |
2 |
2 |
540 (21) |
83-152 (3.3-6) |
48 (106) |
40 (88) |
3.0 (6.6) |
|
LC2A020DI |
Industrial Wide beam Trolley |
2 |
2 |
540 (21) |
152 – 305 (6-12) |
48 (106) |
44 (97) |
3.0 (6.6) |
|
LC2A030DI |
Industrial Trolley |
3 |
2 |
540 (21) |
83-152 (3.3-6) |
48 (106) |
40 (88) |
3.0 (6.6) |
|
LC2A030DI |
Industrial Wide beam Trolley |
3 |
2 |
540 (21) |
152 – 305 (6-12) |
48 (106) |
44 (97) |
3.0 (6.6) |
|
LC2A030SI |
Industrial Trolley |
3 |
1 |
525 (21) |
83-152 (3.3-6) |
80 (176) |
40 (88) |
3.8 (8.4) |
|
LC2A030SI |
Industrial Wide beam Trolley |
3 |
1 |
525 (21) |
152 – 305 (6-12) |
80 (176) |
44 (97) |
3.8 (8.4) |
|
LC2A040SI |
Industrial Trolley |
4 |
1 |
560 (22) |
108-184 (4.3-7.2) |
90 (198) |
95 (210) |
3.8 (8.4) |
|
LC2A060QI |
Industrial Trolley |
6 |
4 |
628 (25) |
108-184 (4.3-7.2) |
74 (163) |
105 (232) |
6.0 (13.2) |
|
LC2A060DI |
Industrial Trolley |
6 |
2 |
743 (29) |
108-184 (4.3-7.2) |
108 (238) |
95 (210) |
7.6 (16.8) |
|

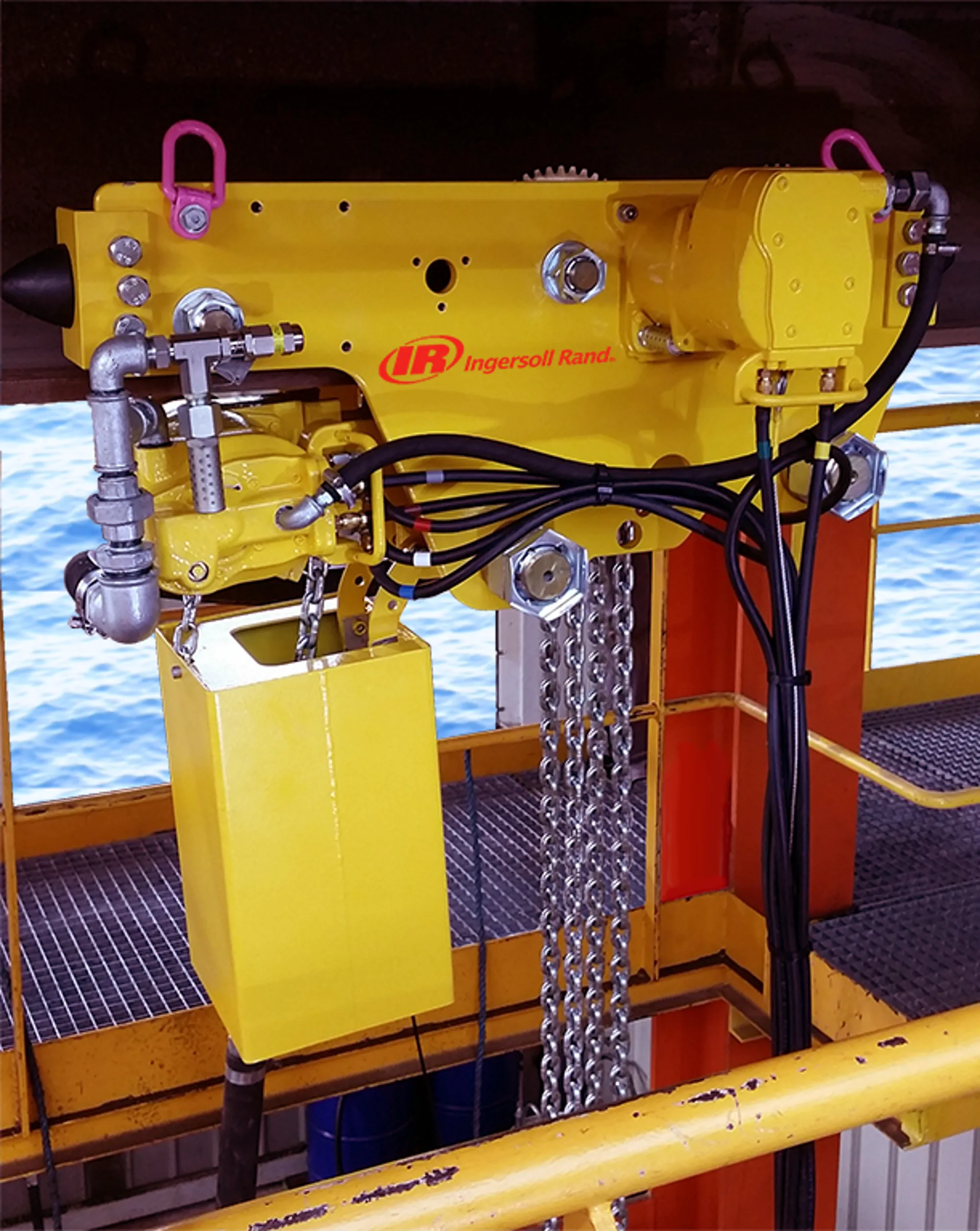

LC2A010SI |
oil & Gas Trolley |
1 |
1 |
480 (18.9) |
80-200 (3.2-7.9) |
38 (84) |
57 (126) |
1.5 (3.3) |
|
LC2A015SI |
oil & Gas Trolley |
1.5 |
1 |
480 (18.9) |
80-200 (3.2-7.9) |
38 (84) |
57 (126) |
1.5 (3.3) |
|
LC2A020DI |
oil & Gas Trolley |
2 |
2 |
592 (23.3) |
80-200 (3.2-7.9) |
48 (106) |
55 (121) |
3.0 (6.6) |
|
LC2A030DI |
oil & Gas Trolley |
3 |
2 |
592 (23.3) |
80-200 (3.2-7.9) |
48 (106) |
55 (121) |
3.0 (6.6) |
|
LC2A030SI |
oil & Gas Trolley |
3 |
1 |
590 (23.2) |
80-200 (3.2-7.9) |
80 (176) |
55 (121) |
3.8 (8.4) |
|
LC2A040SI |
oil & Gas Trolley |
4 |
1 |
590 (23.2) |
80-200 (3.2-7.9) |
90 (198) |
55 (121) |
3.8 (8.4) |
|
LC2A060QI |
oil & Gas Trolley |
6 |
4 |
702 (27.6) |
100-310 (3.9-12.2) |
74 (163) |
143 (315) |
6.0 (13.2) |
|
LC2A060DI |
oil & Gas Trolley |
6 |
2 |
815 (32.1) |
100-310 (3.9-12.2) |
108 (238) |
142 (313) |
7.6 (16.8) |
|
LC2A060SI |
oil & Gas Trolley |
6 |
1 |
730 (28.7) |
100-310 (3.9-12.2) |
125 (276) |
142 (313) |
5.7 (12.6) |
|
LC2A080DI |
oil & Gas Trolley |
8 |
2 |
815 (32.1) |
100-310 (3.9-12.2) |
118 (260) |
142 (313) |
7.6 (16.8) |
|
LC2A120DI |
oil & Gas Trolley |
12 |
2 |
995 (39.2) |
130-310 (5.1-12.2) |
170 (375) |
182 (401) |
11.4 (25.1) |
|
LC2A125SI |
oil & Gas Trolley |
12.5 |
1 |
1,000 (39.4) |
160-310 (6.3-12.2) |
395 (871) |
175 (386) |
10.7 (23.6) |
|
LC2A180TI |
oil & Gas Trolley |
18 |
3 |
1,195 (47.1) |
140-310 (5.5-12.2) |
277 (611) |
375 (826) |
17.1 (37.7) |
|
LC2A250QI |
oil & Gas Trolley |
25 |
4 |
1,240 (48.8) |
140-310 (5.5-12.2) |
324 (714) |
376 (829) |
23.0 (50.7) |
|
LC2A250DI |
oil & Gas Trolley |
25 |
2 |
990 (39.0) |
160-310 (6.3-12.2) |
558 (1,230) |
377 (831) |
21.4 (47.2) |
|
LC2A375TI |
oil & Gas Trolley |
37.5 |
3 |
1,134 (44.6) |
160-310 (6.3-12.2) |
855 (1,885) |
730 (1,609) |
32.1 (70.8) |
|
LC2A500QI |
oil & Gas Trolley |
50 |
4 |
1,182 (46.5) |
160-310 (6.3-12.2) |
965 (2,127) |
770 (1,698) |
42.8 (94.4) |
|
LCA750TI |
oil & Gas Trolley |
75 |
3 |
1,845 (72.6) |
160-310 (6.3-12.2) |
1,700 (3,748) |
2,800 (6,172) |
73.5 (162.0) |
|
LCA1000QI |
oil & Gas Trolley |
100 |
4 |
1,901 (74.8) |
160-310 (6.3-12.2) |
2,200 (4,850) |
2,500 (5,512) |
98.0 (216.1) |
|

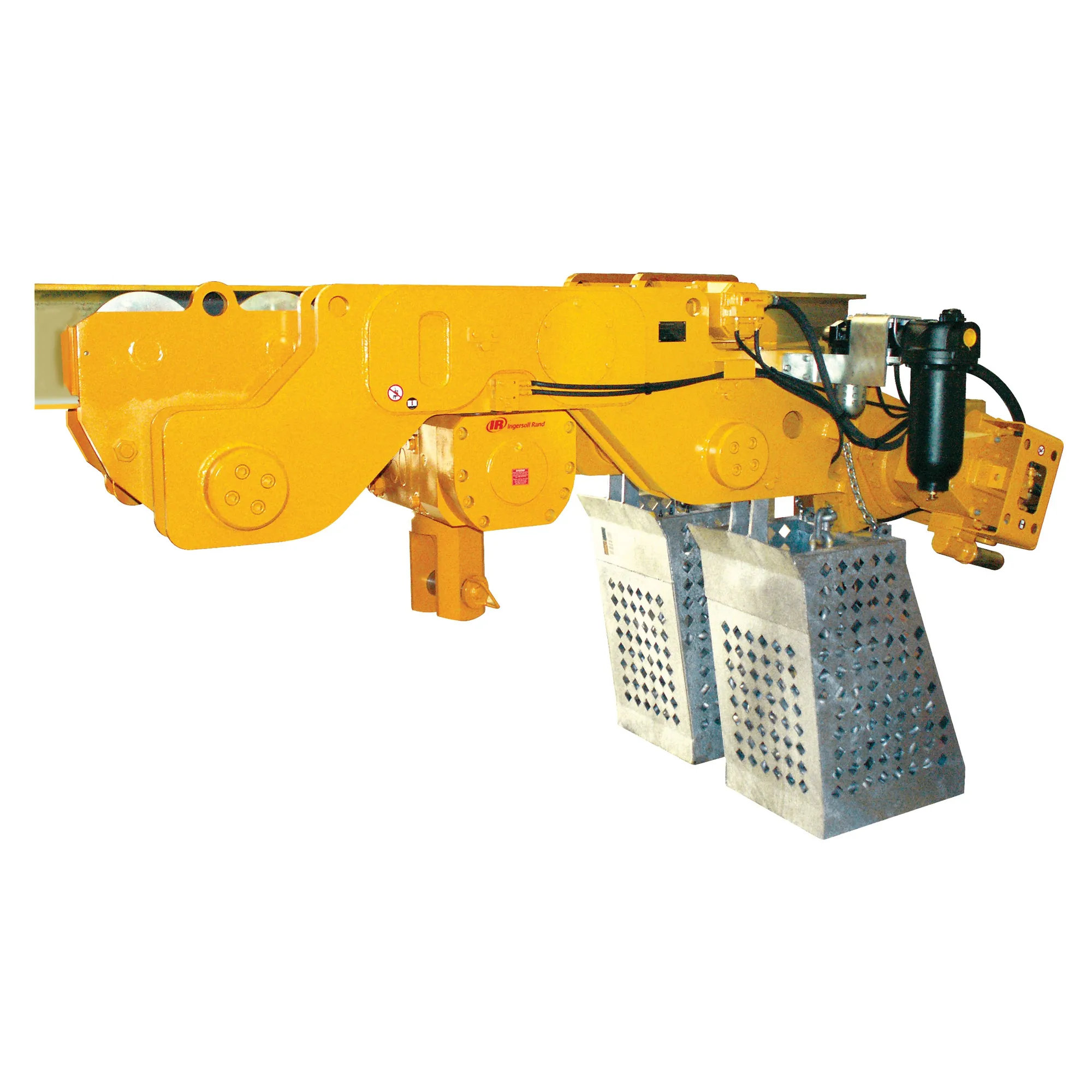

LC2A010SI |
Low Profile |
1 |
1 |
275 (10.8) |
81-310 (3.2-12.2) |
38 (84) |
82 (126) |
1.5 (3.3) |
|
LC2A015SI |
Low Profile |
1.5 |
1 |
275 (10.8) |
81-310 (3.2-12.2) |
38 (84) |
82 (126) |
1.5 (3.3) |
|
LC2A020DI |
Low Profile |
2 |
2 |
386 (15.2) |
81-310 (3.2-12.2) |
48 (106) |
82 (121) |
3 (6.6) |
|
LC2A030DI |
Low Profile |
3 |
2 |
386 (15.2) |
81-310 (3.2-12.2) |
48 (106) |
82 (121) |
3 (6.6) |
|
LC2A030SI |
Low Profile |
3 |
1 |
393 (15.5) |
120-310 (4.7-12.2) |
90 (198) |
178 (393) |
3.8 (8.4) |
|
LC2A040SI |
Low Profile |
4 |
1 |
393 (15.5) |
120-310 (4.7-12.2) |
90 (198) |
188 (415) |
3.8 (8.4) |
|
LC2A060QI |
Low Profile |
6 |
4 |
465 (18.3) |
120-310 (4.7-12.2) |
74 (163) |
176 (388) |
6 (13.2) |
|
LC2A060DI |
Low Profile |
6 |
2 |
590 (23.2) |
120-310 (4.7-12.2) |
118 (260) |
182 (313) |
7.6 (16.8) |
|
LC2A060SI |
Low Profile |
6 |
1 |
475 (18.7) |
140-310 (5.5-12.2) |
125 (276) |
375 (827) |
5.7 (12.6) |
|
LC2A080DI |
Low Profile |
8 |
2 |
590 (23.2) |
120-310 (4.7-12.2) |
118 (260) |
182 (313) |
7.6 (16.8) |
|
LC2A120DI |
Low Profile |
12 |
2 |
670 (26.4) |
140-310 (5.5-12.2) |
170 (375) |
370 (816) |
11.4 (25.1) |
|
LC2A180TI |
Low Profile |
18 |
3 |
730 (28.7) |
210-310 (8.3-12.2) |
277 (611) |
413 (911) |
17.1 (37.7) |
|
LC2A250QI |
Low Profile |
25 |
4 |
775 (30.5) |
160-310 (6.3-12.2) |
324 (714) |
416 (918) |
23 (50.7) |
