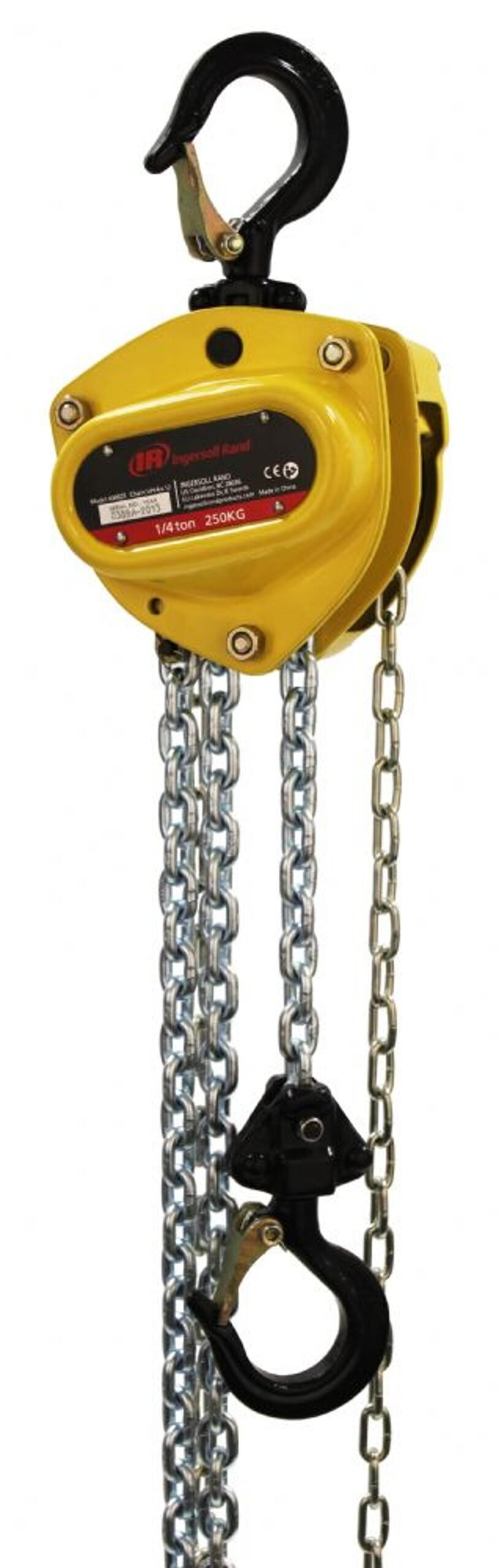

- All steel construction for exceptional durability and light weight
- Reinforced double pawl brake with large diameter pawl springs for a highly dependable brake system
- Single chain fall through 3 metric tons
- Full bearing construction on load sprockets and pinion shaft for reduced pull effort and longer life
- Premium grade 100, Electro-Galvanized chain designed for exceptional corrosion resistance for increased durability.
- Heavy duty cast hook latches designed for less latch replacements
Model Specifications
|
Model Name |
Chain falls |
Capacity (metric tons) |
Shipping Weight w/ 10 lift, lbs (kg) |
Pull to Lift Rated Load, lbs (kg) |
Chain wt. – 1 ft. of lift lbs. |
|---|---|---|---|---|---|
|
KM025 |
1 |
0.25 |
9.5 (4.3) |
41.8 (19) |
0.25 (0.11 kg/ft) |
|
KM050 |
1 |
0.5 |
24.8 (11.25) |
51.3 (23.2) |
1.01 (0.46 kg/ft) |
|
KM100 |
1 |
1 |
28.4 (12.9) |
63.8 (29) |
1.21 (0.55 kg/ft) |
|
KM1000 |
4 |
10 |
231.2 (104.9) |
79.4 (36) |
5.31 (2.41 kg/ft) |
|
KM150 |
1 |
1.5 |
36 (16.35) |
77.1 (35) |
1.41 (0.64 kg/ft) |
|
KM200 |
1 |
2 |
46.3 (21) |
79.4 (36) |
1.55 (0.7 kg/ft) |
|
KM2000 |
8 |
20 |
481.9 (218.6) |
79.4×2 (36×2) |
10.62 (4.82 kg/ft) |
|
KM300 |
1 |
3 |
63.7 (28.9) |
82.7 (37.5) |
1.55 (0.7 kg/ft) |
|
KM500 |
2 |
5 |
93.7 (42.5) |
74.9 (34) |
2.96 (1.34 kg/ft) |
|
KM750 |
3 |
7.5 |
138.9 (63) |
77.1 (35) |
4.17 (1.89 kg/ft) |
