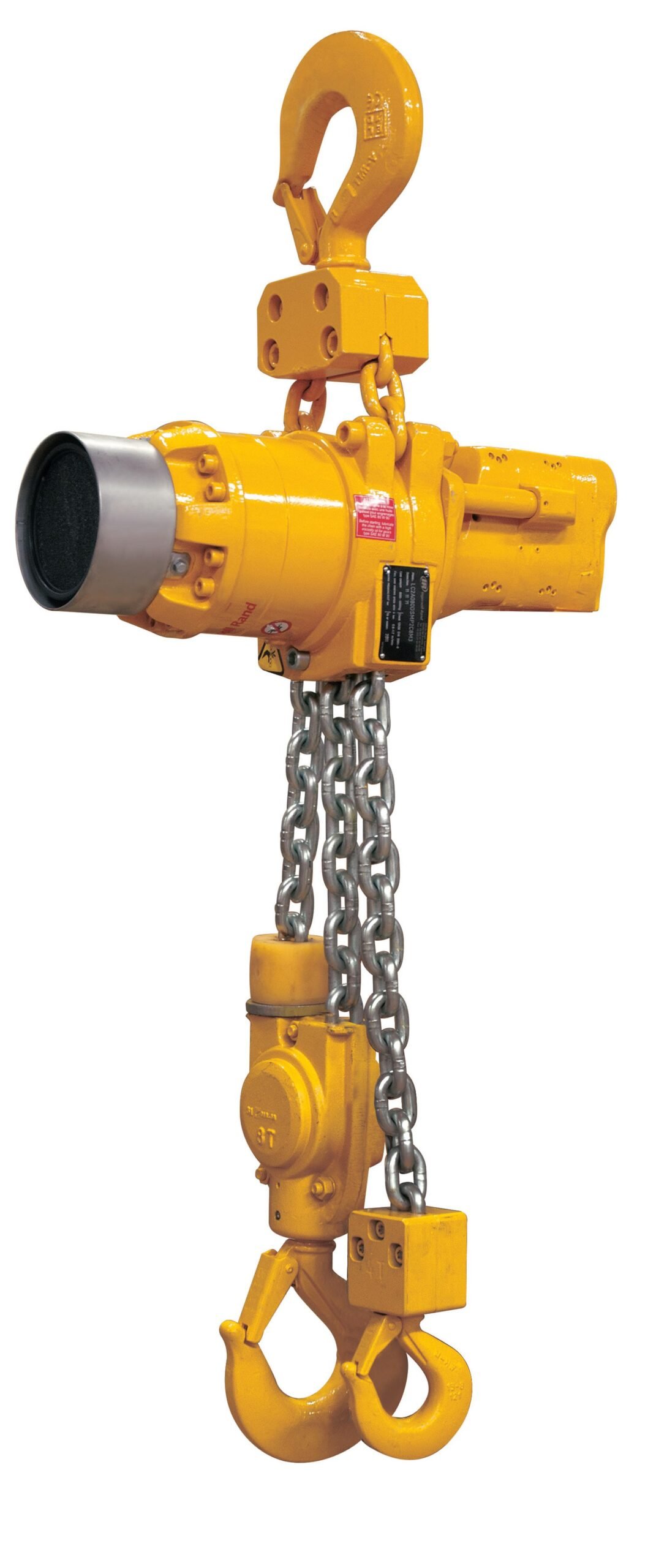

Features
Durability:
- Rugged, compact and lightweight all steel construction adaptable for any environment

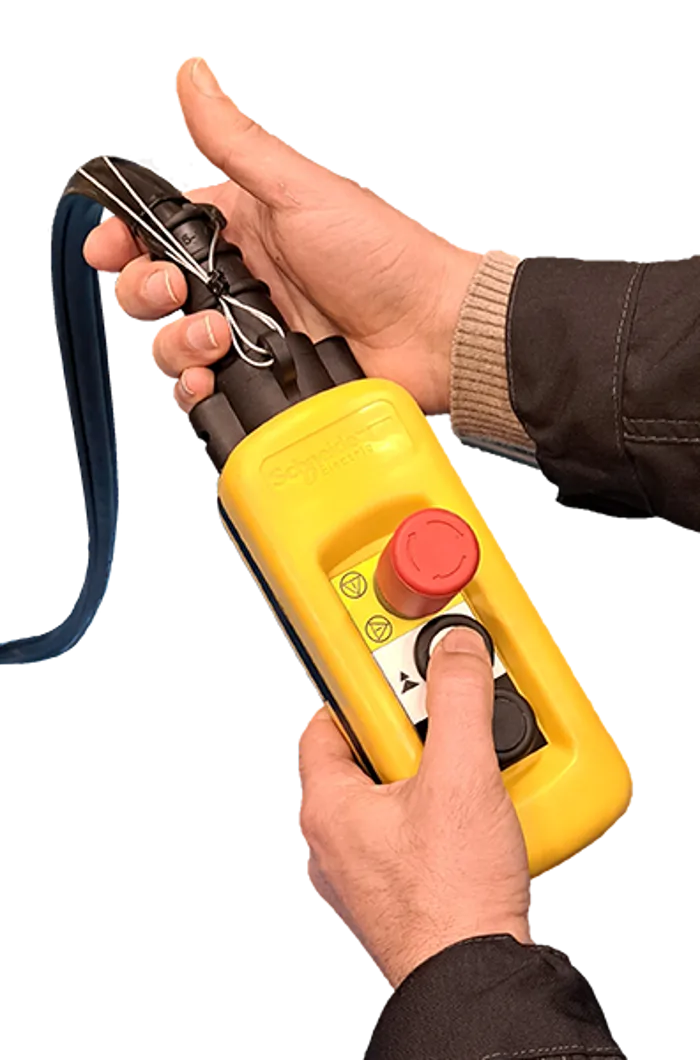

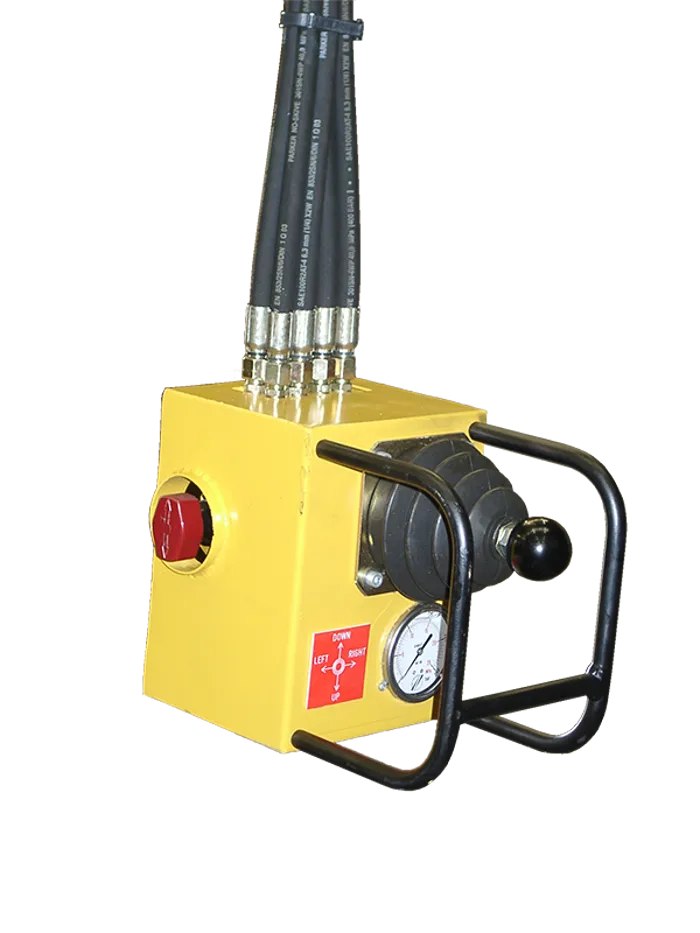

- Cast iron pendant control
- Grade 80 calibrated corrosion-resistant load chain
- Automatic multi disc brake fully enclosed for better corrosion resistance
Safety:
- Suitable for explosive underground mining environments per ATEX category M2
- Overload protection device ensures safe operation
- Top and bottom limit switches through resistant buffer stops that comes against the hoist central part
Performance:
- Suitable to operate at 60 psia (4 bar)
- Top hook mounted on chain links for increased flexibility; extra optional bottom hook for pulling
- Virtually maintenance-free gear-type air motor with minimal moving parts
- Variable speed for precision spotting control
|
Model |
LC2A015SM |
LC2A015SSM |
– |
LC2A030DM |
LC2A030DSM |
– |
LC2A040SM |
LC2A040SSM |
– |
LC2A060SM |
LC2A060SSM |
– |
LC2A080DM |
LC2A080DSM |
– |
LC2A120DM |
LC2A120DSM |
– |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Number of Load Hooks |
1 |
2 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
|
Rated Capacity on Each Hook (t) |
1.5 (simple hook) |
1.5 (simple hook) |
1.5 (simple hook) |
3 (double hook) |
1.5 (simple hook) |
3 (double hook) |
4 (simple hook) |
4 (simple hook) |
4 (simple hook) |
6 (simple hook) |
6 (simple hook) |
6 (simple hook) |
8 (double hook) |
4 (simple hook) |
8 (double hook) |
12 (double hook) |
6 (simple hook) |
12 (double hook) |
|
Min. Headroom (mm) |
608 |
608 |
608 |
675 |
608 |
675 |
757 |
757 |
757 |
952 |
952 |
952 |
940 |
757 |
940 |
1148 |
952 |
1148 |
|
Performances at 4 Bar (58 psi) Pulling Speed at Rated Load (m/min) |
3.2 |
3.2 |
3.2 |
1.5 |
3.2 |
1.5 |
1.7 |
1.7 |
1.7 |
1.4 |
1.4 |
1.4 |
0.9 |
1.7 |
0.9 |
0.7 |
1.4 |
0.7 |
|
Performances at 4 Bar (58 psi) Speed No Load (m/min) |
9 |
9 |
9 |
4.5 |
9 |
4.5 |
4 |
4 |
4 |
2 |
2 |
2 |
2 |
4 |
2 |
1 |
2 |
1 |
|
Performances at 4 Bar (58 psi) Air Cons. At Rated Load (m3/min) |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
3 |
3 |
3 |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
2.5 |
2.5 |
2.5 |
|
Performances at 6.3 Bar (90 psi) Pulling Speed at Rated Load (m/min) |
6.2 |
6.2 |
6.2 |
3 |
6.2 |
3 |
3.9 |
3.9 |
3.9 |
2.2 |
2.2 |
2.2 |
1.8 |
3.9 |
1.8 |
1.1 |
2.2 |
1.1 |
|
Performances at 6.3 Bar (90 psi) Speed No Load (m/min) |
11 |
11 |
11 |
5.5 |
11 |
5.5 |
7 |
7 |
7 |
3.6 |
3.6 |
3.6 |
3.5 |
7 |
3.5 |
1.8 |
3.6 |
1.8 |
|
Performances at 6.3 Bar (90 psi) Air Cons. At Rated Load (m3/min) |
4 |
4 |
4 |
4 |
4 |
4 |
4.5 |
4.5 |
4.5 |
5.2 |
5.2 |
5.2 |
4.5 |
4.5 |
4.5 |
5.2 |
5.2 |
5.2 |
|
Sound Level (1) (dbA) |
79 |
79 |
79 |
79 |
79 |
79 |
76 |
76 |
76 |
79 |
79 |
79 |
76 |
76 |
76 |
79 |
79 |
79 |
|
Hoist Weight (2) (kg) |
41 |
42 |
42 |
48 |
50 |
50 |
90 |
92 |
92 |
125 |
127 |
127 |
118 |
120 |
120 |
171 |
179 |
179 |
|
Chain Size (mm) |
8×24 |
8×24 |
8×24 |
8×24 |
8×24 |
8×24 |
13×36 |
13×36 |
13×36 |
16×45 |
16×45 |
16×45 |
13×36 |
13×36 |
13×36 |
16×45 |
16×45 |
16×45 |
|
Chain Weight/1 m Extra Lift (kg) |
1.4 |
1.4 |
1.4 |
2.8 |
2.8 |
2.8 |
3.8 |
3.8 |
3.8 |
5.7 |
5.7 |
5.7 |
7.6 |
7.6 |
7.6 |
11.4 |
11.4 |
11.4 |
