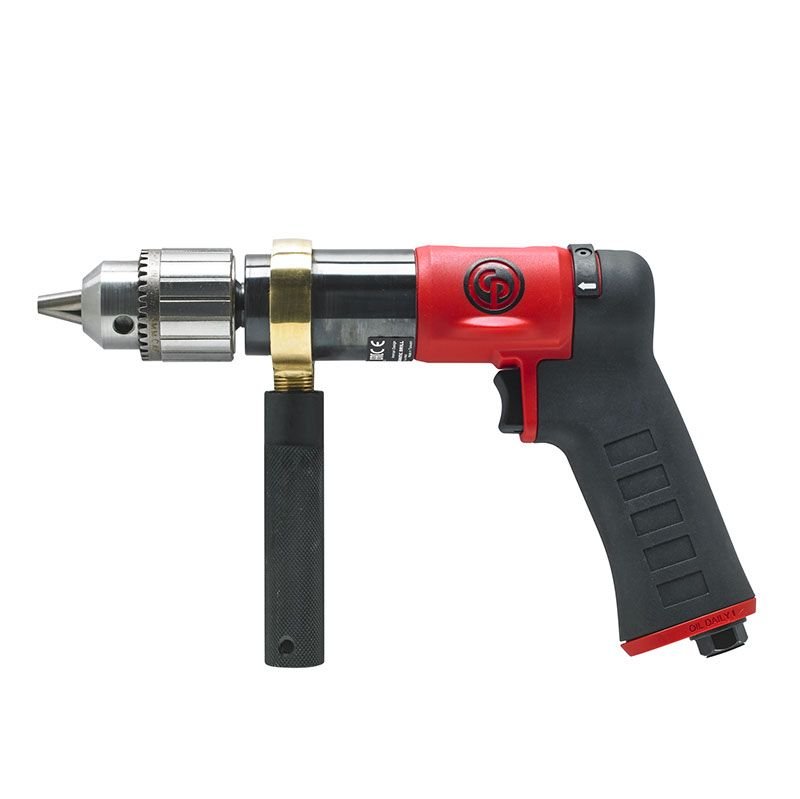

CP9789C 1/2"(13 mm) PNEUMATIC DRILL

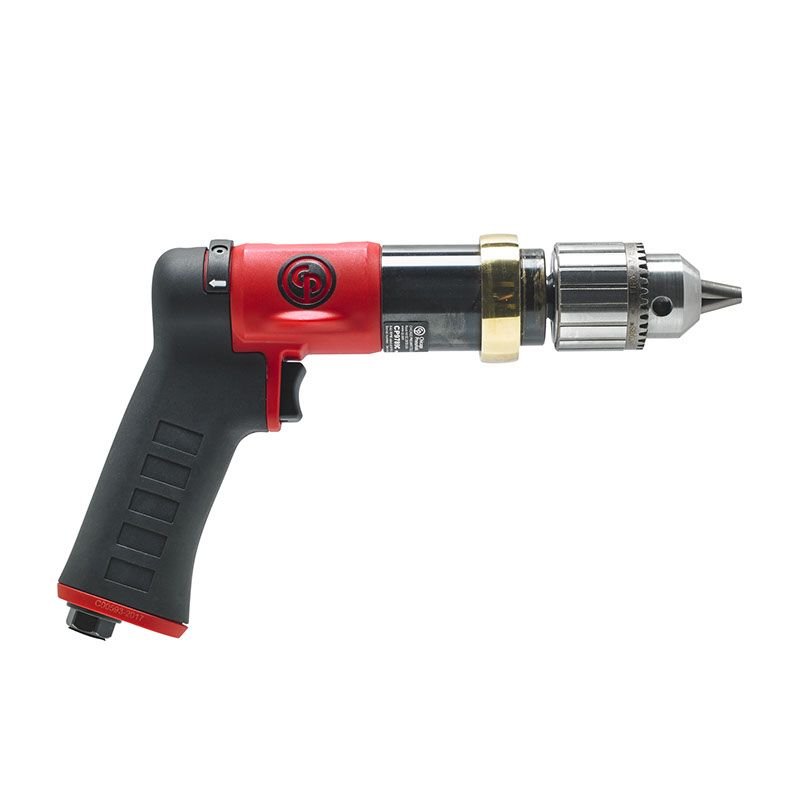

CP9789C 1/2"(13 mm) PNEUMATIC DRILL - Image 2

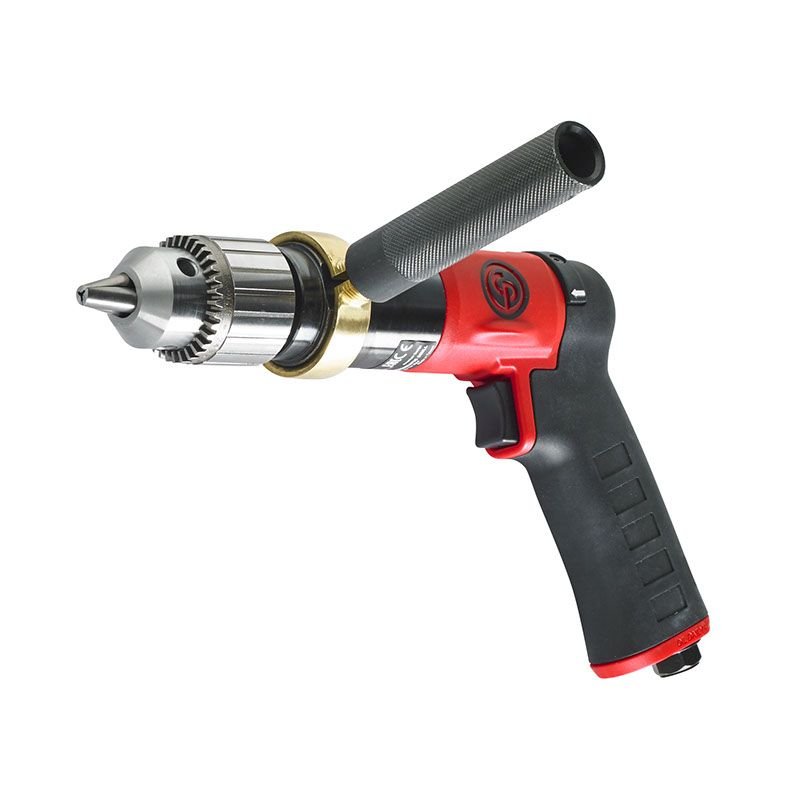

CP9789C 1/2"(13 mm) PNEUMATIC DRILL - Image 3

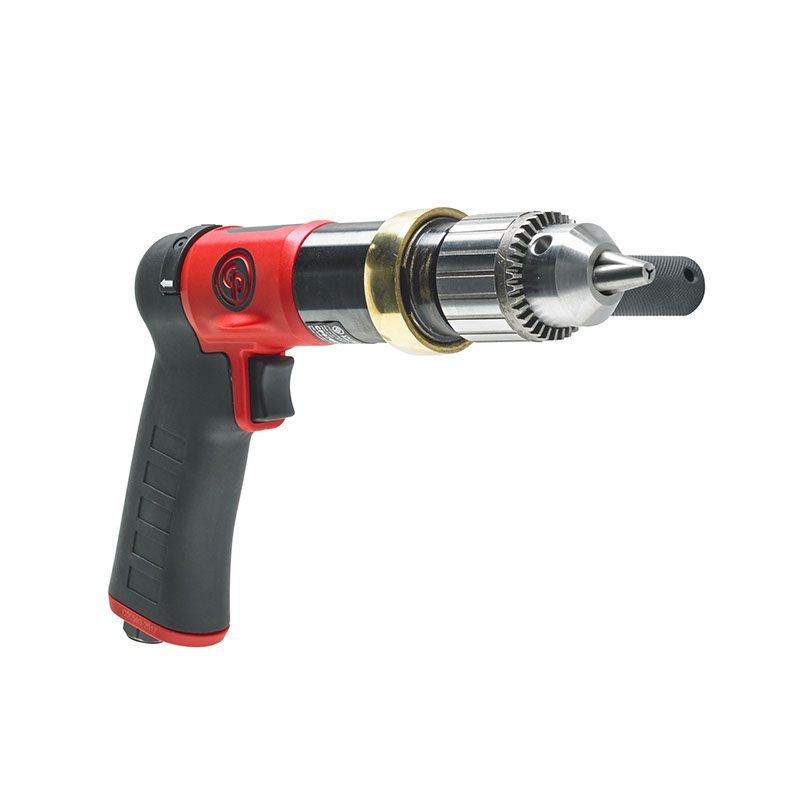

CP9789C 1/2"(13 mm) PNEUMATIC DRILL - Image 4

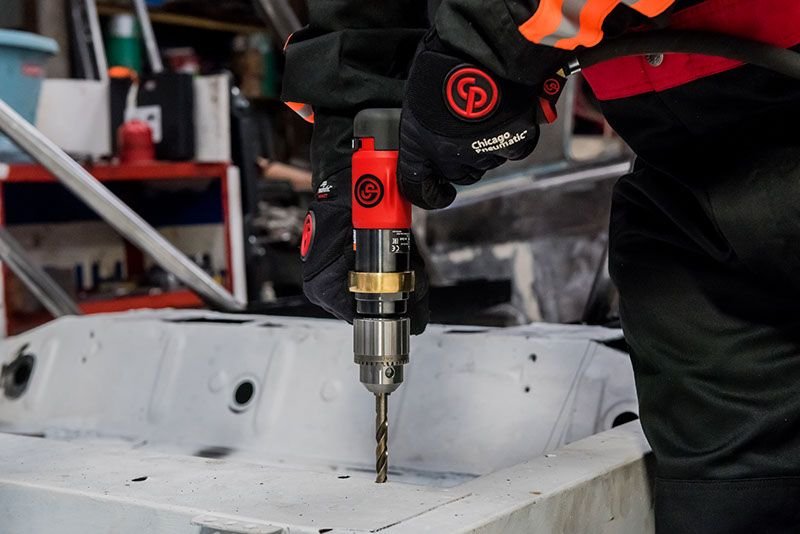

CP9789C 1/2"(13 mm) PNEUMATIC DRILL - Image 5
,

CP9789C 1/2″(13 mm) PNEUMATIC DRILL



Designed for body shops or general maintenance applications such as drilling, honing, reaming and hole sawing, the CP7300 / CP928X / CP978X / CP979X Series offers high comfort with its compositie housing with thermoplastic rubber handle grip, its wings on right & left sides to guide the forefinger and its handle exhaust. This model belongs to theCP7300 / CP928X / CP978X / CP979X Series which is composed of 11 models: 3 x 1/4″ drills, 4 x 3/8″ drills and 4 x 1/2″ drillsCountry of origin is TW. Customs tariff is 84671190

Categories: , Brand:

Technical Specifications

Design & Functions
Chuck max capacity (in) :- 1/2
Chuck max capacity (mm) :- 13
Chuck type :- Keyed
Handle type :- Pistol
Main Material type :- Aluminium, Composite over-sleeve
Reversible :- Yes
Starting system :- Trigger
Trigger type :- Progressive
Noise & vibrations
Sound Power :- 99.3 dB(A)
Sound Pressure :- 88.3 dB(A)
Air information
Air consumption at load :- 0 l/s
Air inlet thread size (in) :- 1/4
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.38 in
Min hose diam (5 m hose length) :- 10 mm
Power & Battery
Max power :- 350 W
Torque
Stall torque :- 14 Nm
Speed
Free Speed :- 840 rpm
Air consumption at free speed :- 13 l/s
Size & Weight
Height (H) :- 150 mm
Length (L) :- 265 mm
Side to Center :- 49 mm
Weight :- 1.4 kg

Benefits

  • Composite housing with thermoplastic rubber handle grip and wings on right & left sides for better operator comfort
  • Large teasing trigger and progressive valve allowing more control to start holes
  • Handle exhaust allowing the air to flow away from the operator
  • Flat back part for better pushing action while drilling and tapping
