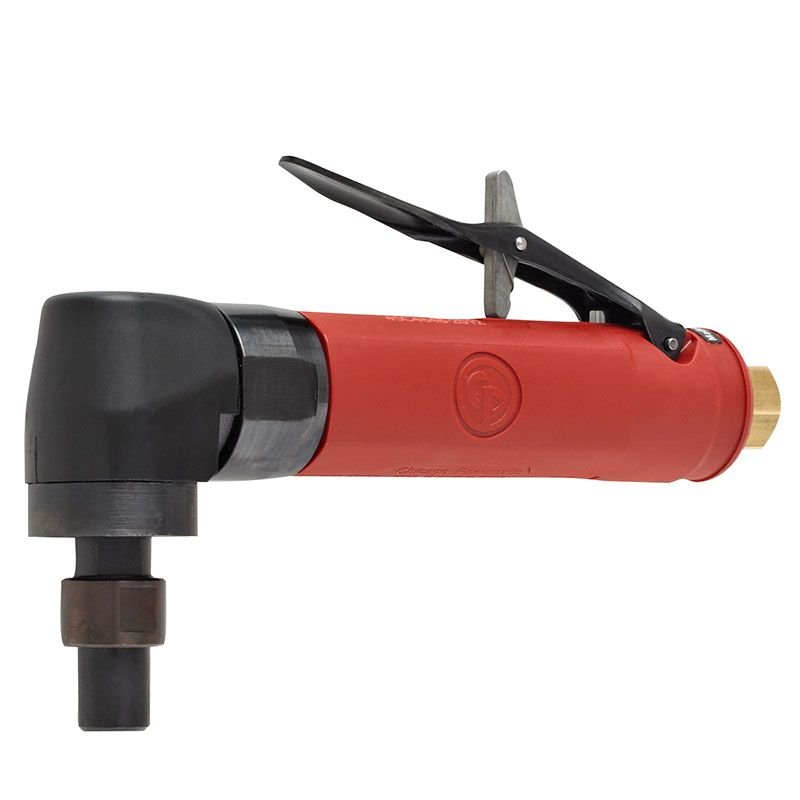

CP3019-20AC CNOMO 1/4"(6 mm) PNEUMATIC ANGLE DIE GRINDER

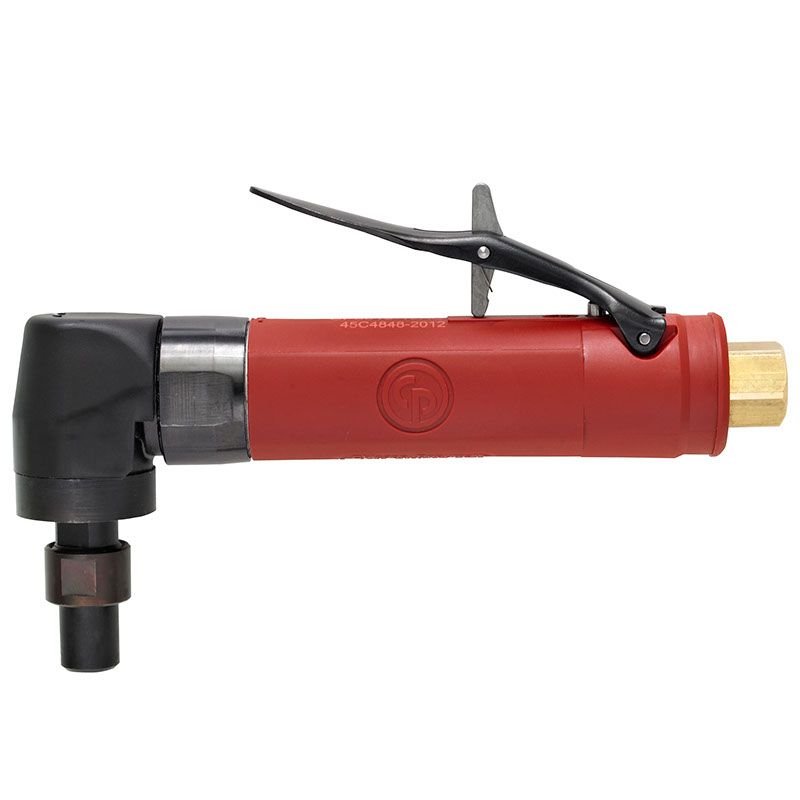

CP3019-20AC CNOMO 1/4"(6 mm) PNEUMATIC ANGLE DIE GRINDER - Image 2

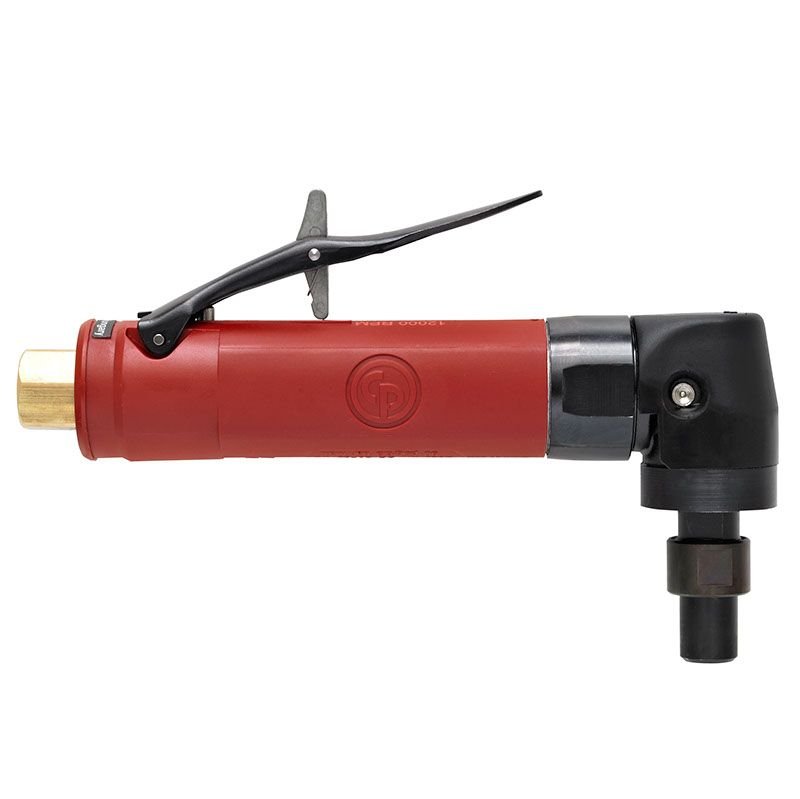

CP3019-20AC CNOMO 1/4"(6 mm) PNEUMATIC ANGLE DIE GRINDER - Image 3

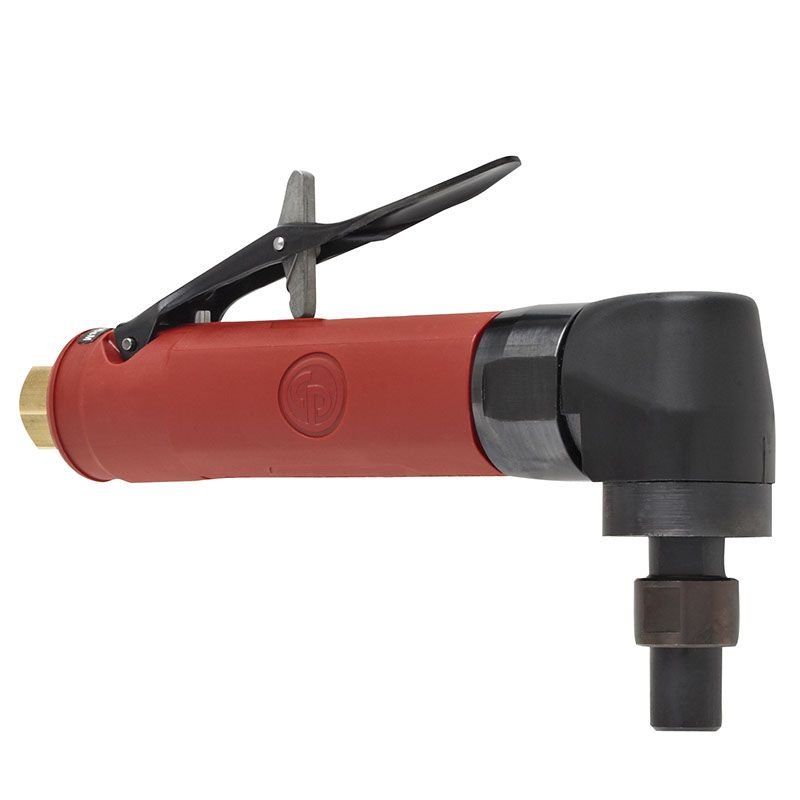

CP3019-20AC CNOMO 1/4"(6 mm) PNEUMATIC ANGLE DIE GRINDER - Image 4
,

CP3019-20AC CNOMO 1/4″(6 mm) PNEUMATIC ANGLE DIE GRINDER



The CP3019 Series – angle pneumatic Die Grinders, with a 1/4′ (6.35 mm) collet capacity or CNOMO collet capacity consists of 4 models with 2 free speed options from 12,000 to 20,000 rpm. The powerful motor offers 0.5 hp (375 W) for optimum productivity in heavy applications such as deburring, die contouring, and light chamfering. The range is characterized by a compact design and a simplified safety lever.Country of origin is HU. Customs tariff is 84671110

Categories: , Brand:

Technical Specifications

Size & Weight
Length (L) :- 216 mm
Weight :- 0.51 kg
Speed
Free Speed :- 20000 rpm
Air consumption at free speed :- 5.3 l/s
Air information
Air consumption at load :- 9.4 l/s
Air inlet thread size (in) :- 1/4
Air inlet thread type :- NPT
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.31 in
Min hose diam (5 m hose length) :- 8 mm
Noise & vibrations
Sound Power :- 93 dB(A)
Sound Pressure :- 82 dB(A)
Uncertainty vibration-K :- 3.4 m/s²
Tightening Strategies
Angle Type:- 90°
Power
Max power :- 375 W
Design & Functions
Collet max capacity :- 1/4 (6.4mm)
Collet/Collet holder/Collet nut type :- Cnomo type
Exhaust :- Rear
Governor type :- Ball
Main Material type :- Aluminium, Composite over-sleeve
Rotative inlet :- No
Spindle lock :- No
Starting system :- Safety lever

Benefits

  • Highest durability in demanding applications, up to 2,000 hours maintenance intervals
  • Streamlined safety lever for operator safety
  • Powerful 0.5 hp (375 W) governed motor ensures safety
  • Compact body with an insulating composite over-housing for operator comfort and superior ergonomics
