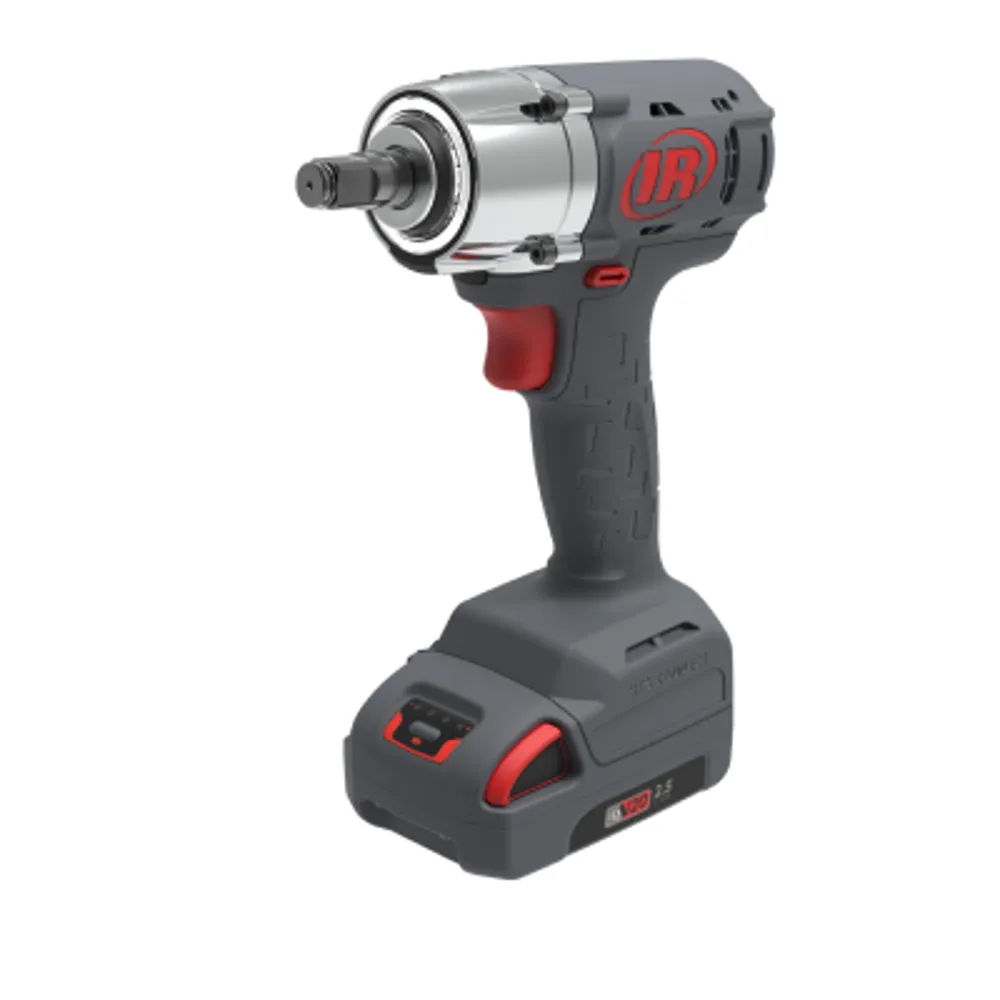

RTS Connect Cordless Impact Wrench
RTS Connect Cordless Impact Wrench - Image 2

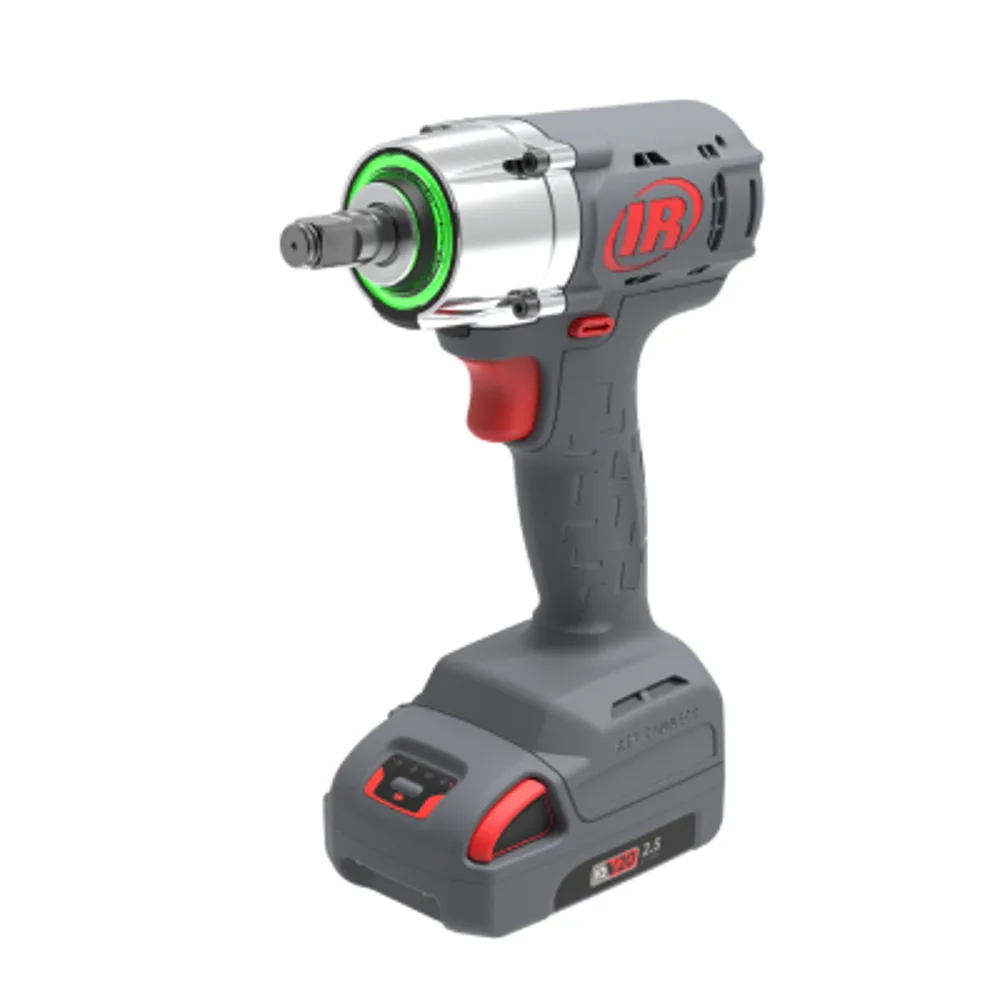

RTS Connect Cordless Impact Wrench - Image 3

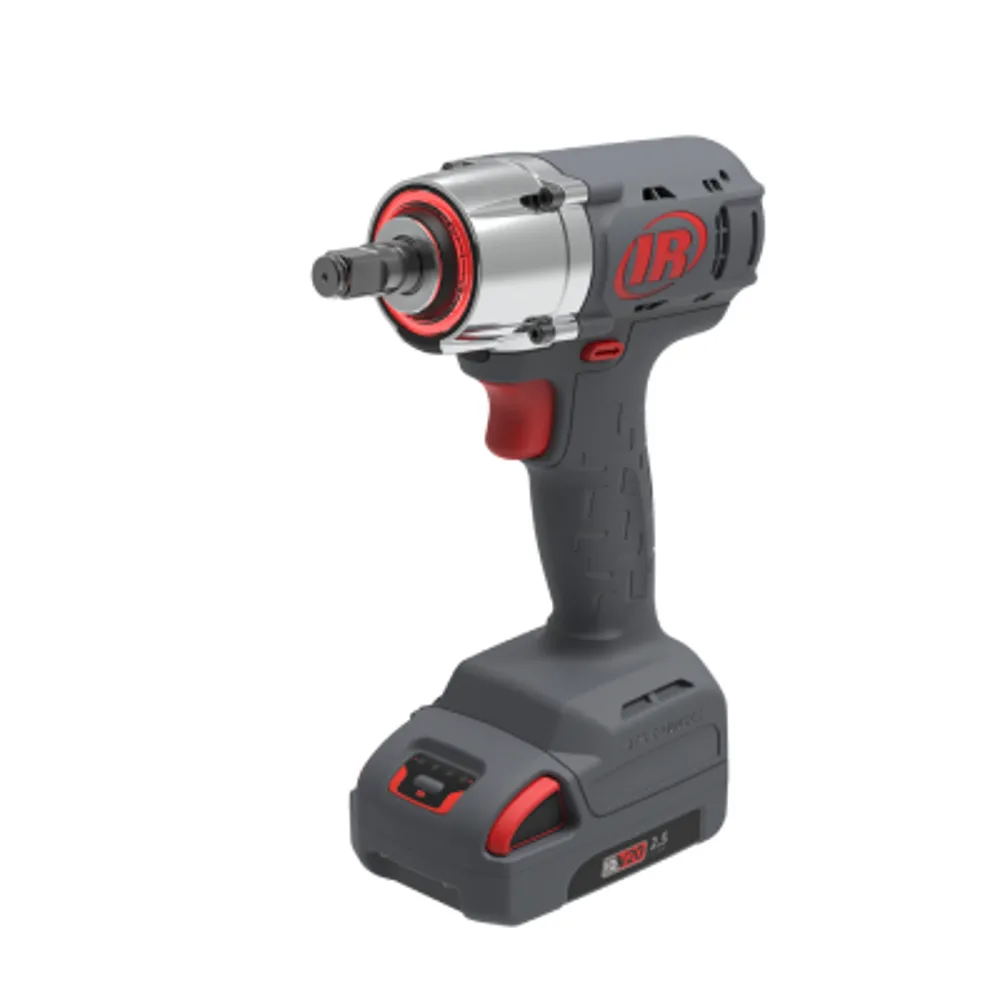

RTS Connect Cordless Impact Wrench - Image 4
,

RTS Connect Cordless Impact Wrench

The responsive tightening system is the perfect blend of responsive action and torque control. The Ingersoll Rand® proprietary torque control algorithm powers the simple and flexible tightening system, changing the game in reliable fastening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, 7 flush levels, dual speed non-contact trigger, and a 360° status beam LED ring light. Featuring a lightweight and ergonomic design, the impact wrench enables sustained performance in continuous production environments. With reactionless performance, robust wireless connectivity, and programmable settings, the RTS Connect is the ultimate tool for those who demand perfection.

Categories: , Brand:

Case Studies

  • Heavy Equipments Manufacturing Case.
  • Automative Manufacturing Assembly Case
  • Manufacturing And Electrical Components Case.
  • Motor Cycle Manufacturing Assembly Case

Features

Simple

  • An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the user.
  • The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the user on the cycle status.
  • Basic setup via the tool display
  • Advanced setup via INSIGHT™ Connect mobile app
  • Expert setup via INSIGHTqcx™ MTC controller

Flexible

  • Up to 8 Pset configurations reduce the need for multiple tools for different applications on the assembly line.
  • Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations.
  • 4 communication options available to adapt to evolving connectivity requirements.

Capable

  • Proprietary torque control algorithm that delivers consistent, repeatable fastening every time.
  • 40 torque settings and 7 flush detection levels to adapt to various application types.
  • Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.

Model Specifications

Model

Drive

Retainer Type

Fastener Size

Torque Range (in-lbs)

Torque Range (Nm)

Weight w/o Battery (lbs)

Weight w/o Battery (kg)

Length w/o Socket (in)

Length w/o Socket (mm)

Side to Center Distance (in)

Side to Center Distance (mm)

RTS025PQ4

1/4″ Hex

Quick-Change

M6-M8

70-220

8-25

2.3

1.05

6.1

155

1.2

30.5

RTS060PS6

3/8″ Square

Pin Detent

M8-M10

105-530

12-60

2.4

1.07

6.4

163

1.2

30.5

RTS060PH6

3/8″ Square

Hog Ring/Thru Hole

M8-M10

105-530

12-60

2.4

1.07

6.5

164

1.2

30.5

RTS060PS8

1/2″ Square

Pin Detent

M8-M10

105-530

12-60

2.4

1.09

6.7

169

1.2

30.5

RTS060PH8

1/2″ Square

Hog Ring/Thru Hole

M8-M10

105-530

12-60

2.4

1.09

6.7

170

1.2

30.5

RTS140PS8

1/2″ Square

Pin Detent

M10-M14

265-1240

30-140

2.4

1.1

6.7

169

1.2

30.5

RTS140PH8

1/2″ Square

Hog Ring/Thru Hole

M10-M14

265-1240

30-140

2.4

1.1

6.7

170

1.2

30.5

RTS225PS8

1/2″ Square

Pin Detent

M12-M18

530-2000

60-225

2.5

1.12

6.7

169

1.2

30.5

RTS225PH8

1/2″ Square

Hog Ring/Thru Hole

M12-M18

530-2000

60-225

2.5

1.12

6.7

170

1.2

30.5
