Powder Transfer Pump PP10A-XXX-XXX, PP20A-XXX-XXX, PP30A-XXX-XXX, up to 100 psi (6.9 bar)
,

Powder Transfer Pump PP10A-XXX-XXX, PP20A-XXX-XXX, PP30A-XXX-XXX, up to 100 psi (6.9 bar)

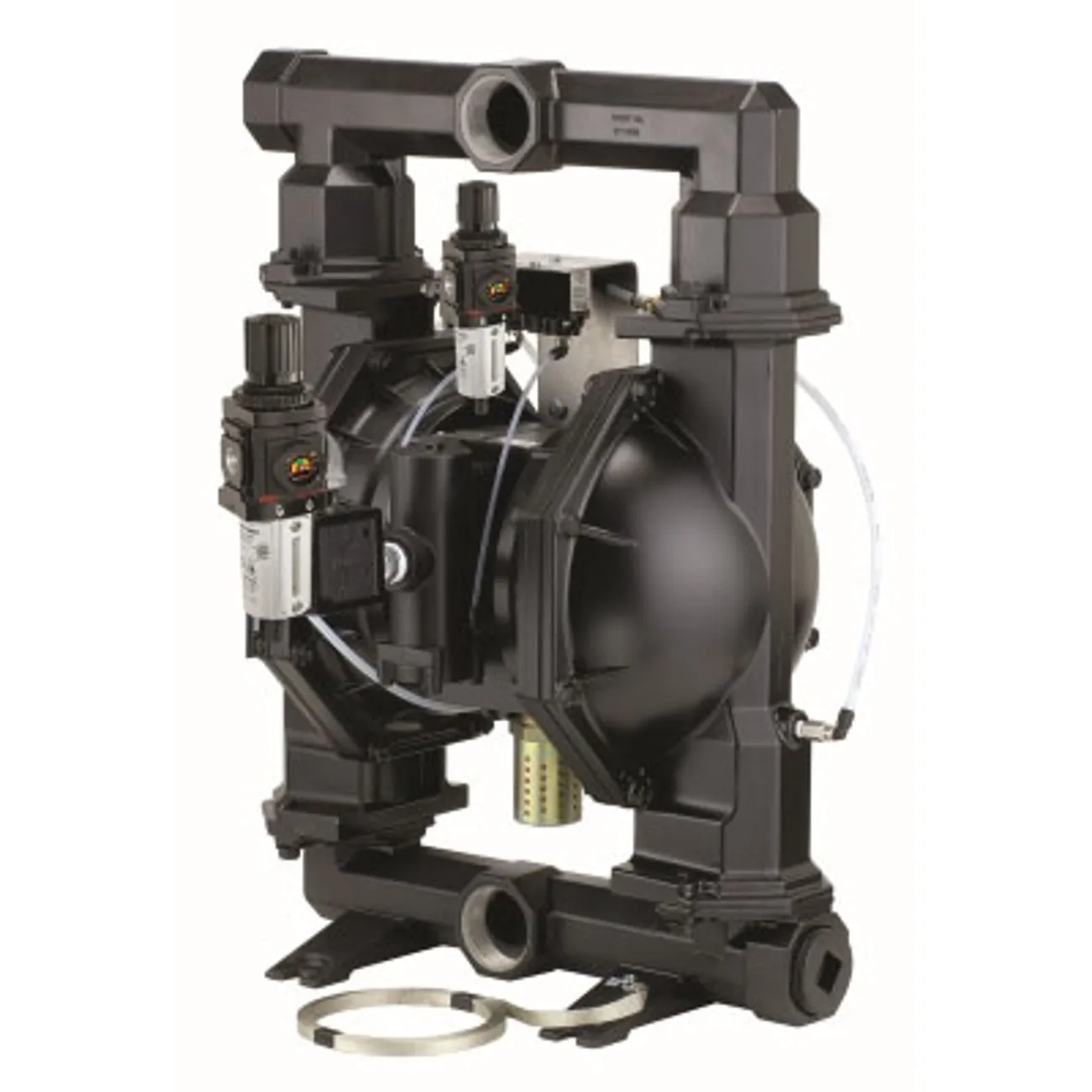

Powder Transfer Pump

PP10A-XXX-XXX, PP20A-XXX-XXX, PP30A-XXX-XXX, up to 100 psi (6.9 bar)

Available in 1″, 2″ and 3″ Ports

Transfer and handle your dry process powders faster, cleaner and at a fraction of the cost associated with installed “systems.”

ARO powder pumps offer consistent trouble-free transfer of powders up to 45-lbs. per cubic foot (721 kgs. per cubic meter) dry-weight, such as carbon black, expanded mica, silicones, acrylic resins, 3D printing powders and pharmaceuticals.

Replace Manual Powder Processes:

  • Reduce Airborne Contamination – With direct transfer from the powder container to your recipe.
  • Unique Patented Air-Induction System – Avoids the possibility of powder pack-out.
  • Portable – Can be moved from site to site

Overview

Powder Pump Features

  • Replaces Manual Powder Processes
  • Reduce Airborne Contamination – With direct transfer from the powder container to your recipe
  • Unique Patented Air-Induction System – Avoids the possibility of powder pack-out
  • Economical and Simple – Unlike large, complex systems
  • Portable – Can be moved from site to site
  • Advanced Air-Induction Technology – 4-Way air efficiency valve, delay timer, pump major air valve, air induction valve, main air control valve and air motor muffler
  • NPT, BSP and Tri-Clamp material connections

Accessories

  • 66312 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
  • 67183-1 Suction Probe: contains all necessary pump attachment hardware and 10′ of groundable hose to be used with both 2″ and 3″ ported powder pumps
  • 637421 Air Section Service Kit
  • 637303-XX Fluid Section Service Kit (for PP30A)
  • 637309-XX Fluid Section Service Kit (for PP20A)

Pump Casing Materials

  • Aluminum
  • Stainless Steel

Diaphragm Materials

  • Santoprene
  • Medical Grade Santoprene
Categories: , Brand:

Specifications

Port: 1”, 2” and 3”

Material: Aluminum and Stainless Steel

Max. operating pressure: psi (bar) 50 (3.4)

Weight: lbs (kg)

PP10A-XAX-AAA 33.3 (15.1)

PP10A-XSX-AAA 50.9 (23.1)

PP20A-XAX-AAA 99.4 (45.1)

PP20A-XSX-AAA 157.8 (71.6)

PP30A-XAX-AAA 137.5 (62.4)

PP30A-XSX-AAA 236.8 (107.4)
